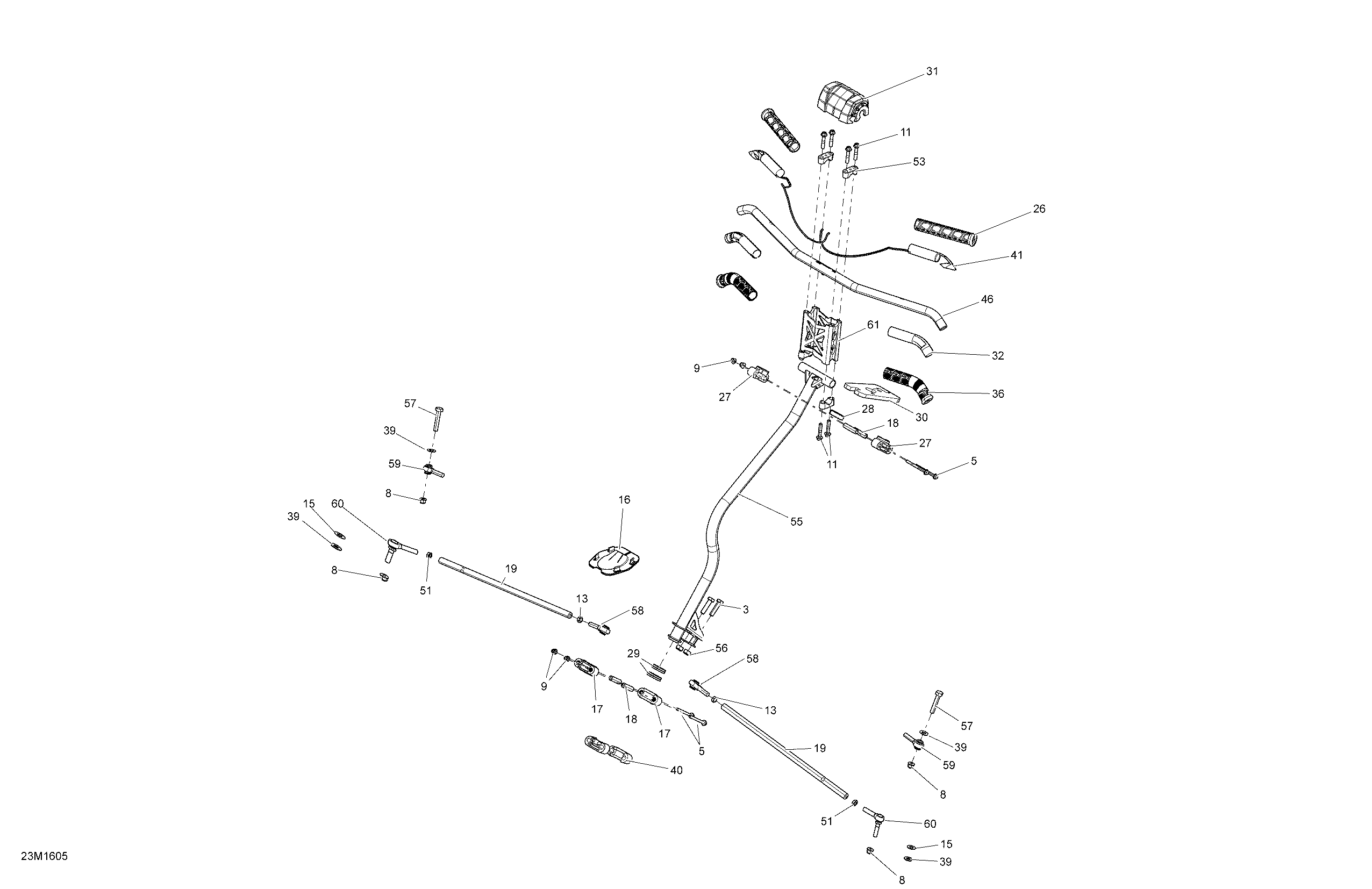

07- Steering для BRP Ski-Doo MXZ 600 CARB - 2016
-
№АртикулНазвание
-
3207004034 Hex. Screw M10 X 1.5 X 40Hex. Screw M10 X 1.5 X 40
-
5207667086 Hex. Flanged Screw M6 x 1.0 x 70Hex. Flanged Screw M6 x 1.0 x 70
-
8233201464 Hex. Elast. Flanged Nut M10 x 1.5Hex. Elast. Flanged Nut M10 x 1.5
-
9233261416 Elastic Flanged Nut M6 X 1.0. Except Package SportElastic Flanged Nut M6 X 1.0. Except Package Sport
-
9233261416 Elastic Flanged Nut M6 X 1.0. Package SportElastic Flanged Nut M6 X 1.0. Package Sport
-
11250000352 Hex. Flange Screw M8 X 40Hex. Flange Screw M8 X 40
-
13250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
15503192496 Washer. Package XRSWasher. Package XRS
-
16506152163 PlatePlate
-
17506152217 Lower Half-Housing. EXCEPT Package XRSLower Half-Housing. EXCEPT Package XRS
-
18506152297 Housing Bushing. Package SportHousing Bushing. Package Sport
-
19506152496 Tie-RodTie-Rod
-
26506152486 Grip. Package SportGrip. Package Sport
-
27506152508 Upper Half-HousingUpper Half-Housing
-
28506152509 Upper Anti-Vibration GasketUpper Anti-Vibration Gasket
-
29506152518 Lower Vibration RingLower Vibration Ring
-
30506152521 Bushing. Package SportBushing. Package Sport
-
31506152541 Steering Pad, Deep BlackSteering Pad, Deep Black
-
32506152548 Isolant. Except Package SportIsolant. Except Package Sport
-
32506152611 Isolant. Package SportIsolant. Package Sport
-
36506152560 Grip 148mm. Except Package SportGrip 148mm. Except Package Sport
-
39506152582 WasherWasher
-
40506152588 Lower Half-Housing. Package XRSLower Half-Housing. Package XRS
-
41506152665 Heating Element 32 Watt 2 Wires. Package SportHeating Element 32 Watt 2 Wires. Package Sport
-
41506152758 Heating Element 32 Watt 2 Wires. Except Package SportHeating Element 32 Watt 2 Wires. Except Package Sport
-
46506152709 Handle Bar, Non Dyed Clear AnodizingHandle Bar, Non Dyed Clear Anodizing
-
51732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
53506152751 Steering SupportSteering Support
-
55506152962 Steering ColumnSteering Column
-
56233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
57207005554 Hex Screw M10 X 1.5 X 55. Package SportHex Screw M10 X 1.5 X 55. Package Sport
-
58506152081 LH Thread Ball Joint. InnerLH Thread Ball Joint. Inner
-
59506152019 RH Thread Ball Joint. Package Sport. OuterRH Thread Ball Joint. Package Sport. Outer
-
60506152684 RH Thread Ball Joint. Except Package Sport. OuterRH Thread Ball Joint. Except Package Sport. Outer
-
61506152570 Black Handlebar Extension (115mm). Package TNT, BlizzardBlack Handlebar Extension (115mm). Package TNT, Blizzard
-
61860200819 Handlebar Extension Kit (115mm). Package Sport. Includes Ref# 11 - 8 x 250000352Handlebar Extension Kit (115mm). Package Sport. Includes Ref# 11 - 8 x 250000352
-
61506152616 Black Handlebar Extension (130mm). Package X, XRSBlack Handlebar Extension (130mm). Package X, XRS
