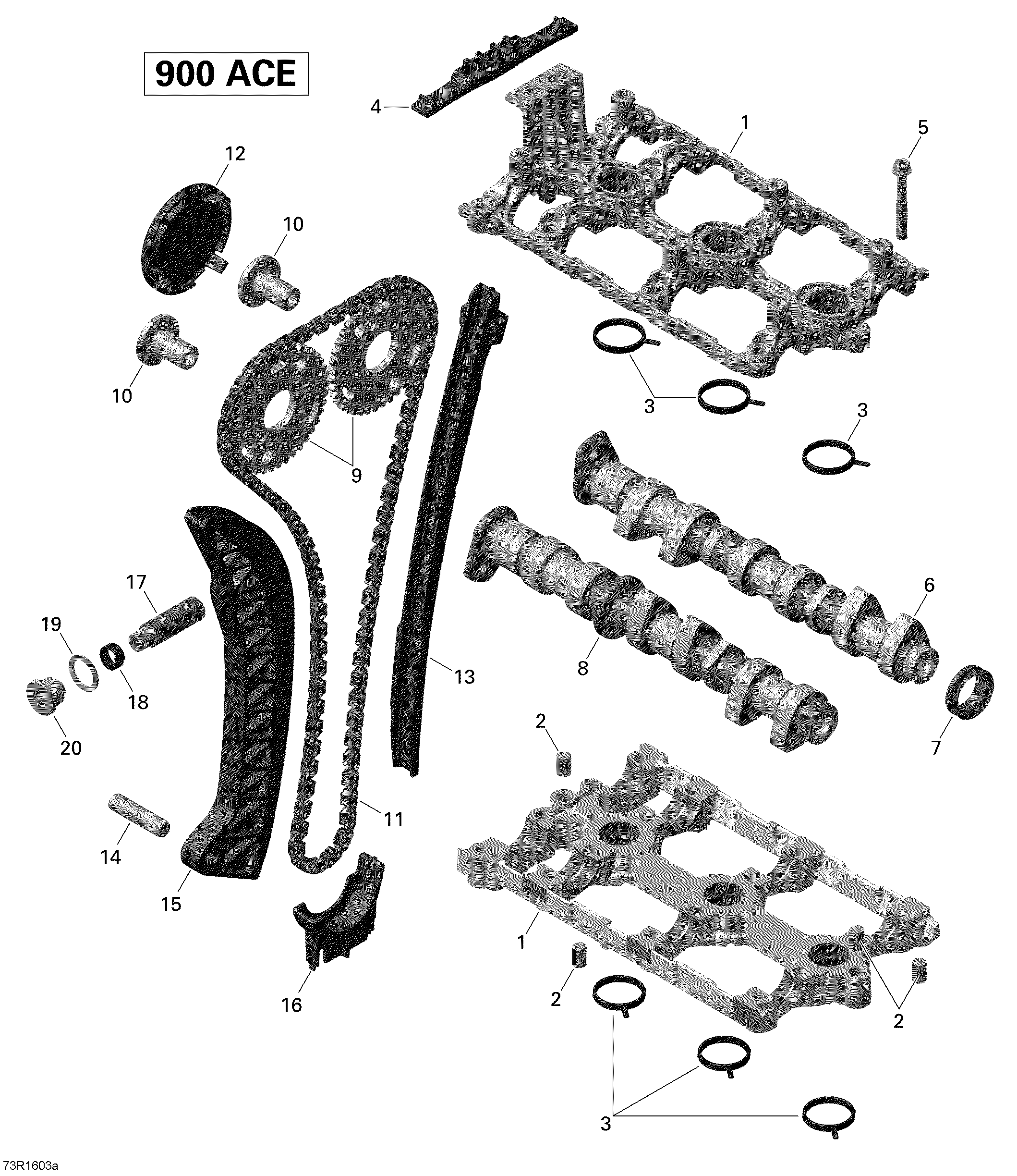

01- Camshafts and Timing Chain - 900 ACE для BRP Ski-Doo RENEGADE - 4-STROKE - 2016
-
№АртикулНазвание
-
1420911475 Camshaft Housing Ass'y. Includes 1 to 2Camshaft Housing Ass'y. Includes 1 to 2
-
2420632010 Center Pin 8 X 12Center Pin 8 X 12
-
3420431760 GasketGasket
-
4420936500 Chain Guide, UpperChain Guide, Upper
-
5420440324 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
6420820210 Camshaft ExhaustCamshaft Exhaust
-
7420630127 V-RingV-Ring
-
8420820200 Camshaft IntakeCamshaft Intake
-
9420855120 Camshaft Sprocket, 40 TeethCamshaft Sprocket, 40 Teeth
-
10420441360 Flat Head Screw M14 X 1.5Flat Head Screw M14 X 1.5
-
11420297086 Camshaft ChainCamshaft Chain
-
12420460920 CoverCover
-
13420936010 Chain GuideChain Guide
-
14420929937 Needle PinNeedle Pin
-
15420936020 Chain Tension GuideChain Tension Guide
-
16420936510 Chain GuideChain Guide
-
17420236256 Chain TensionerChain Tensioner
-
18420238732 Compression SpringCompression Spring
-
19420430622 O-RingO-Ring
-
20420840591 Plug ScrewPlug Screw
