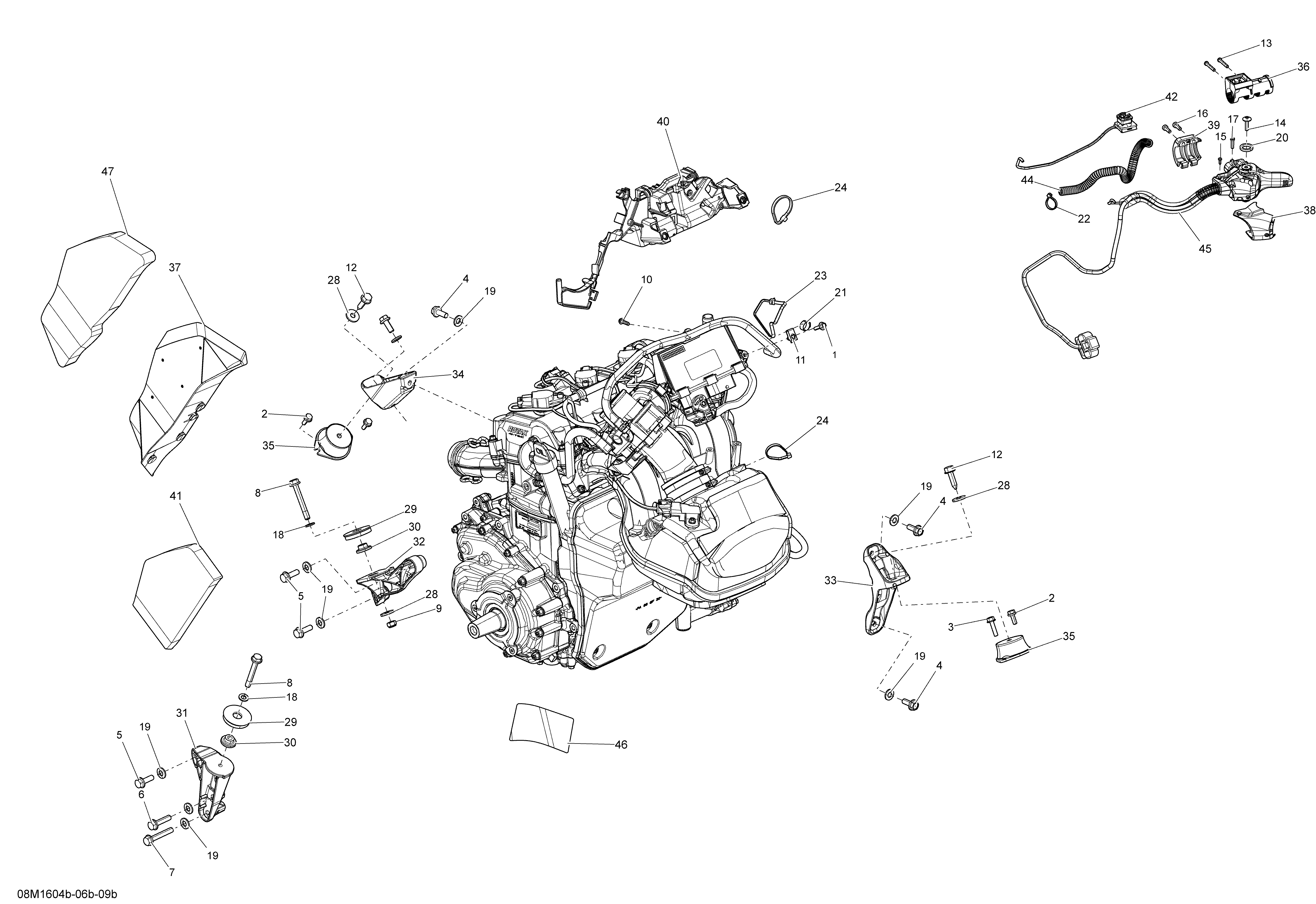

01- Engine - 1200 4-TEC для BRP Ski-Doo RENEGADE - 4-STROKE - 2016
-
№АртикулНазвание
-
1207552044 Hex. Flanged Screw M5 X 20, Scotch GripHex. Flanged Screw M5 X 20, Scotch Grip
-
2207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
3207562534 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
4207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
5207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
6207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
7207585086 Hex. Flanged Screw M8 X 50, Scotch GripHex. Flanged Screw M8 X 50, Scotch Grip
-
8207586044 Hex. Flanged Screw M8 X 60, Scotch GripHex. Flanged Screw M8 X 60, Scotch Grip
-
9232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
10241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
11250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
12250000257 Cone Screw, M8 X 30Cone Screw, M8 X 30
-
13250000263 Torx Screw #8-18Torx Screw #8-18
-
14250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
15250000623 Torx Screw M2.9 x 9.5Torx Screw M2.9 x 9.5
-
16250000632 Torx Screw M5 X 14Torx Screw M5 X 14
-
17250000671 Torx ScrewTorx Screw
-
18250200008 Flat Washer With Teflon 8 mmFlat Washer With Teflon 8 mm
-
19250200146 Conical Spring Washer M8Conical Spring Washer M8
-
21293650046 Oetiker ClampOetiker Clamp
-
22293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
23293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
24414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
28503183200 Washer, YellowWasher, Yellow
-
29512060244 StopperStopper
-
30512060285 SpacerSpacer
-
31512060591 Rear Support, PTORear Support, PTO
-
32512060593 Front Support, PTOFront Support, PTO
-
33512060594 Rear Support, MAGRear Support, MAG
-
34512060596 Front Support, MAGFront Support, MAG
-
35512060729 Rubber MountRubber Mount
-
36512060844 SupportSupport
-
37512060847 Noise ShieldNoise Shield
-
38512060862 CapCap
-
39512060987 Front HousingFront Housing
-
40512061012 Module SupportModule Support
-
41512061135 Noise FoamNoise Foam
-
42515177362 Kill SwitchKill Switch
-
44515177716 Protector TubeProtector Tube
-
45512061113 Housing Ass'yHousing Ass'y
-
45a415130047 Handle Assembly kitHandle Assembly kit
-
46516007500 DecalDecal
-
47512060958 Inner Acoustic FoamInner Acoustic Foam
