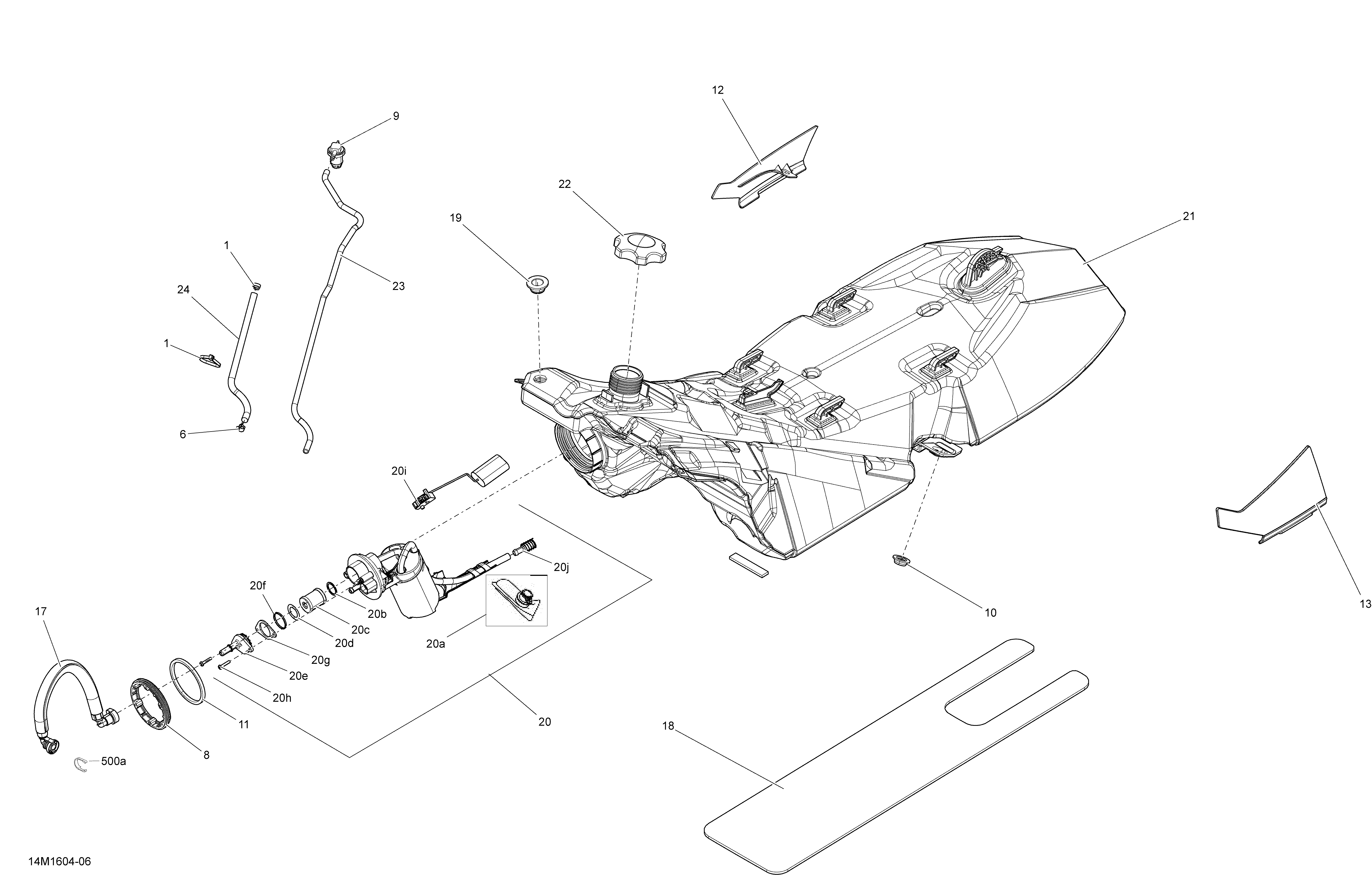

02- Fuel System - All Models для BRP Ski-Doo RENEGADE - 4-STROKE - 2016
-
№АртикулНазвание
-
1414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
6414554800 Spring ClampSpring Clamp
-
8513033180 RingRing
-
9513033188 Check ValveCheck Valve
-
10513033326 Shoulder BushingShoulder Bushing
-
11513033334 GasketGasket
-
12513033418 RH CapRH Cap
-
13513033419 LH CapLH Cap
-
17513033583 Hose Ass'yHose Ass'y
-
18513033588 Insulating FoamInsulating Foam
-
19513033596 GrommetGrommet
-
20513033654 Fuel Pump Ass'yFuel Pump Ass'y
-
20a415129451 Fuel FilterFuel Filter
-
20b415129511 O-RingO-Ring
-
20c415129510 Fuel FilterFuel Filter
-
20d415129512 Wave WasherWave Washer
-
20e415129685 CoverCover
-
20f415129509 O-RingO-Ring
-
20g415129569 Fuel Pump RingFuel Pump Ring
-
20h415129513 ScrewScrew
-
20i415129671 Fuel Level SensorFuel Level Sensor
-
20j414872100 Fuel FilterFuel Filter
-
21513033667 Fuel TankFuel Tank
-
22513033720 Fuel Tank Cap. North America ModelFuel Tank Cap. North America Model
-
22513033721 Fuel Tank Cap. Europe ModelFuel Tank Cap. Europe Model
-
23415080200 Hose, PolyurethaneHose, Polyurethane
-
24504153074 Protector TubeProtector Tube
-
500a513033135 Locking ClipLocking Clip
