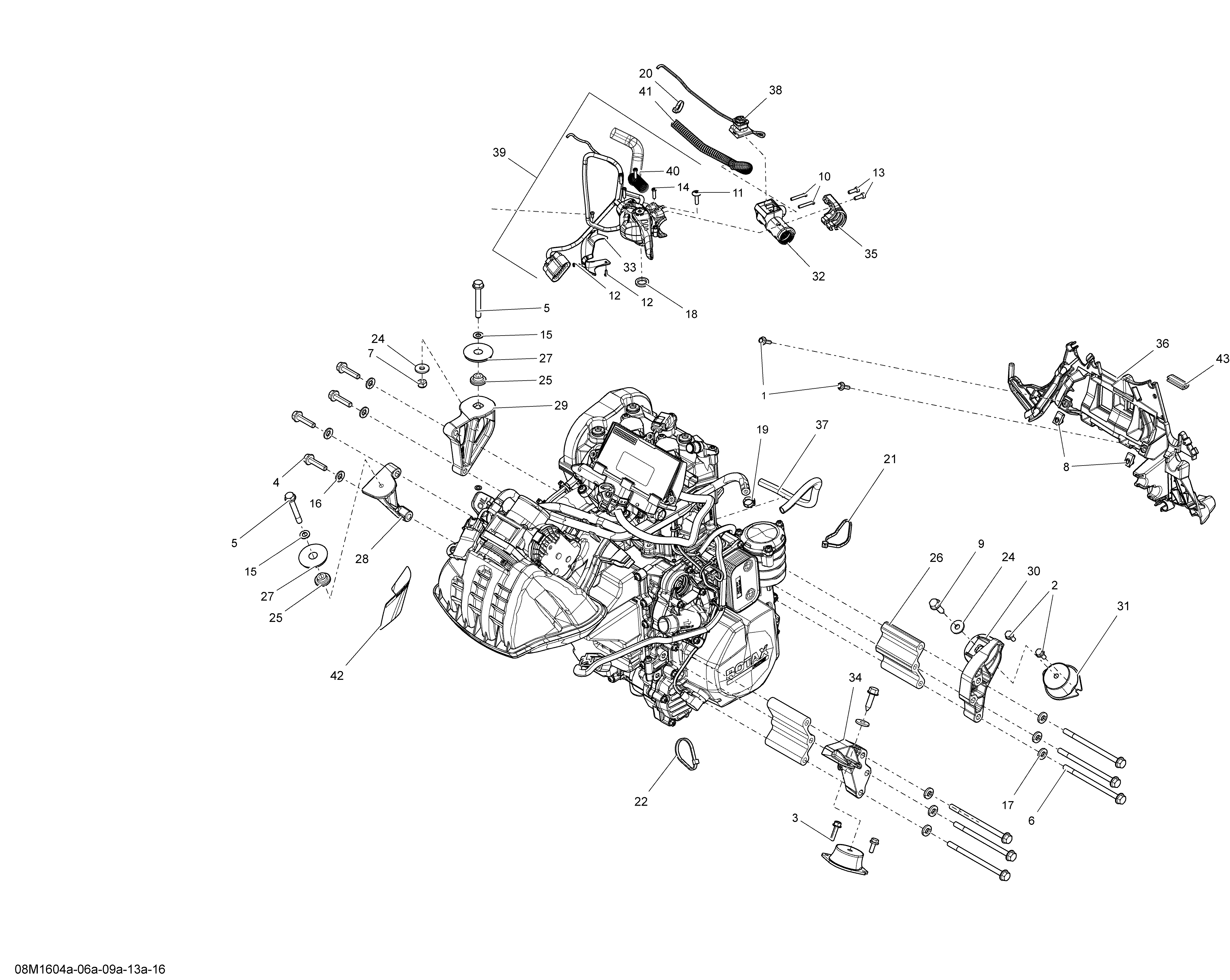

01- Engine - 600 ACE для BRP Ski-Doo RENEGADE - 4-STROKE - 2016
-
№АртикулНазвание
-
1207552044 Hex. Flanged Screw M5 X 20, Scotch GripHex. Flanged Screw M5 X 20, Scotch Grip
-
2207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
3207562534 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
4207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
5207586044 Hex. Flanged Screw M8 X 60, Scotch GripHex. Flanged Screw M8 X 60, Scotch Grip
-
6230582544 Hex. Flanged Screw M8 X 125, Scotch GripHex. Flanged Screw M8 X 125, Scotch Grip
-
7232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
8250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
9250000257 Cone Screw, M8 X 30Cone Screw, M8 X 30
-
10250000263 Torx Screw #8-18Torx Screw #8-18
-
11250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
12250000623 Torx Screw M2.9 x 9.5Torx Screw M2.9 x 9.5
-
13250000632 Torx Screw M5 X 14Torx Screw M5 X 14
-
14250000671 Torx ScrewTorx Screw
-
15250200008 Flat Washer With Teflon 8 mmFlat Washer With Teflon 8 mm
-
16250200146 Conical Spring Washer M8Conical Spring Washer M8
-
17250200157 Conical Spring Washer M8Conical Spring Washer M8
-
19293650025 Oetiker Gear ClampOetiker Gear Clamp
-
20293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
21293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
22414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
24503183200 Washer, YellowWasher, Yellow
-
25512060285 SpacerSpacer
-
26512060505 ShimShim
-
27512060647 StopperStopper
-
28512060660 Rear Support, PTORear Support, PTO
-
29512060661 Front Support, PTOFront Support, PTO
-
30512060663 Front Support, MAGFront Support, MAG
-
31512060729 Rubber MountRubber Mount
-
32512060844 SupportSupport
-
33512060862 CapCap
-
34512060894 Rear Support, MAGRear Support, MAG
-
35512060987 Front HousingFront Housing
-
36512060994 Module SupportModule Support
-
37512061067 Protector TubeProtector Tube
-
38515177362 Kill SwitchKill Switch
-
39512061113 Housing Ass'yHousing Ass'y
-
39a415130047 Handle Assembly kitHandle Assembly kit
-
40515177716 Protector TubeProtector Tube
-
41515177716 Protector TubeProtector Tube
-
42516007500 DecalDecal
-
43271001530 TrimTrim
