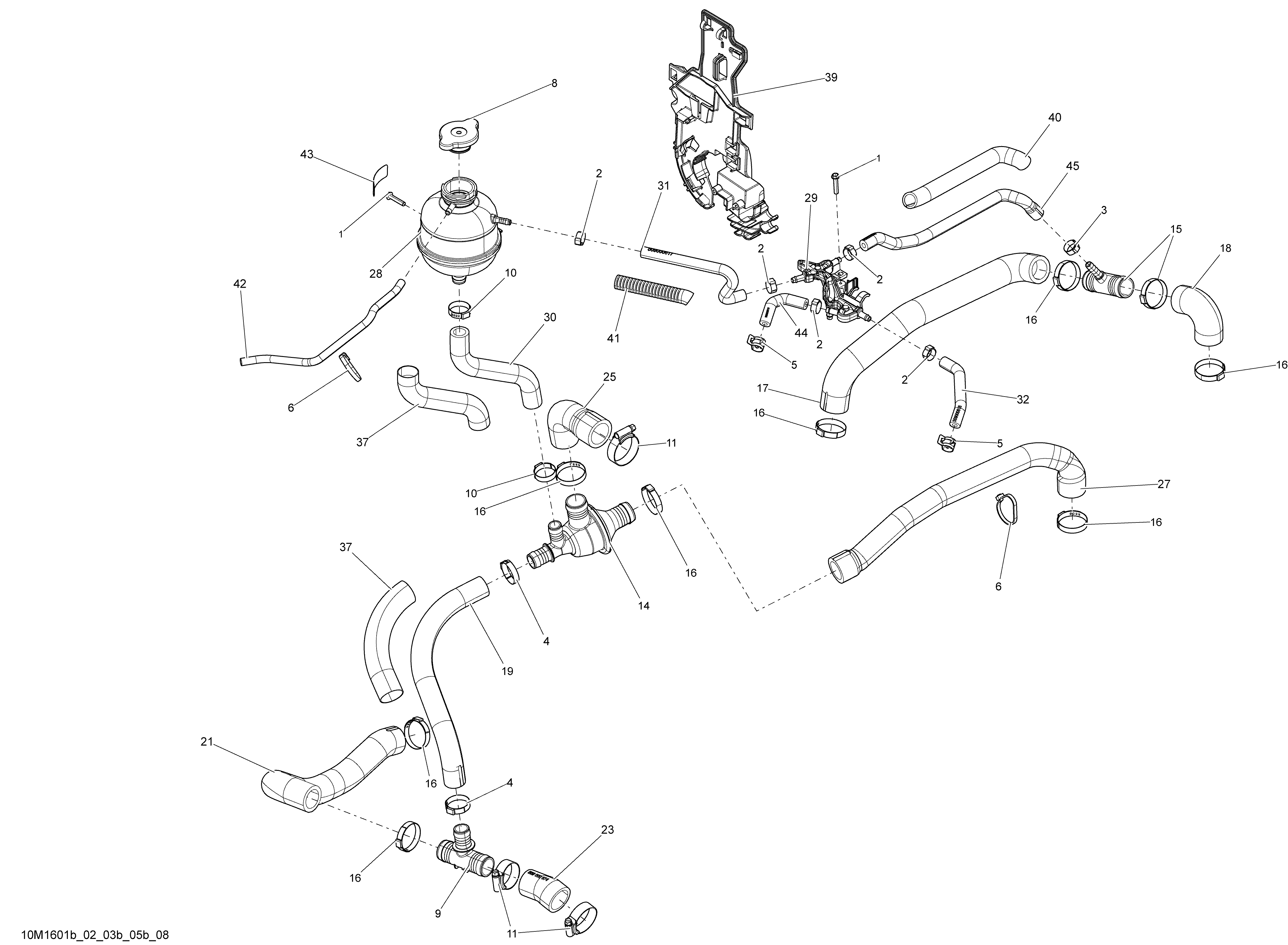

01- Cooling System - ETEC Engine для BRP Ski-Doo SUMMIT 800R E-TEC - 2016
-
№АртикулНазвание
-
1241152540 Hex. Flanged Screw K50 X 25Hex. Flanged Screw K50 X 25
-
2293650046 Oetiker ClampOetiker Clamp
-
3293650047 Crimp ClampCrimp Clamp
-
4293650099 Crimp ClampCrimp Clamp
-
5293650210 Spring ClampSpring Clamp
-
6414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
8509000180 Pressure CapPressure Cap
-
9509000372 T-FittingT-Fitting
-
10509000442 Oetiker Gear ClampOetiker Gear Clamp
-
11509000443 Aba Gear ClampAba Gear Clamp
-
14509000499 Thermostat HousingThermostat Housing
-
15509000510 T-FittingT-Fitting
-
16509000529 Oetiker Gear ClampOetiker Gear Clamp
-
17509000670 Radiator HoseRadiator Hose
-
18509000671 Radiator HoseRadiator Hose
-
19509000672 Bypass HoseBypass Hose
-
21509000673 Radiator HoseRadiator Hose
-
23509000674 Engine Inlet Hose. 800R E-TECEngine Inlet Hose. 800R E-TEC
-
23509000675 Engine Inlet Hose. 600HO E-TECEngine Inlet Hose. 600HO E-TEC
-
25509000678 Engine Outlet HoseEngine Outlet Hose
-
27509000679 Thermostat Outlet HoseThermostat Outlet Hose
-
28509000802 Coolant TankCoolant Tank
-
29509000803 Bleed CollectorBleed Collector
-
30509000812 Filling HoseFilling Hose
-
31509000817 HoseHose
-
32509000818 Bleeder HoseBleeder Hose
-
37509000513 Protector Tube 32 mmProtector Tube 32 mm
-
39509000973 Tank SupportTank Support
-
40415080000 Tubing 16 mmTubing 16 mm
-
41409901800 Tubing 13 mmTubing 13 mm
-
42276000048 Hose 6 mmHose 6 mm
-
43516005904 Warning DecalWarning Decal
-
44509000819 Bleeder HoseBleeder Hose
-
45509000906 Bleeder HoseBleeder Hose
