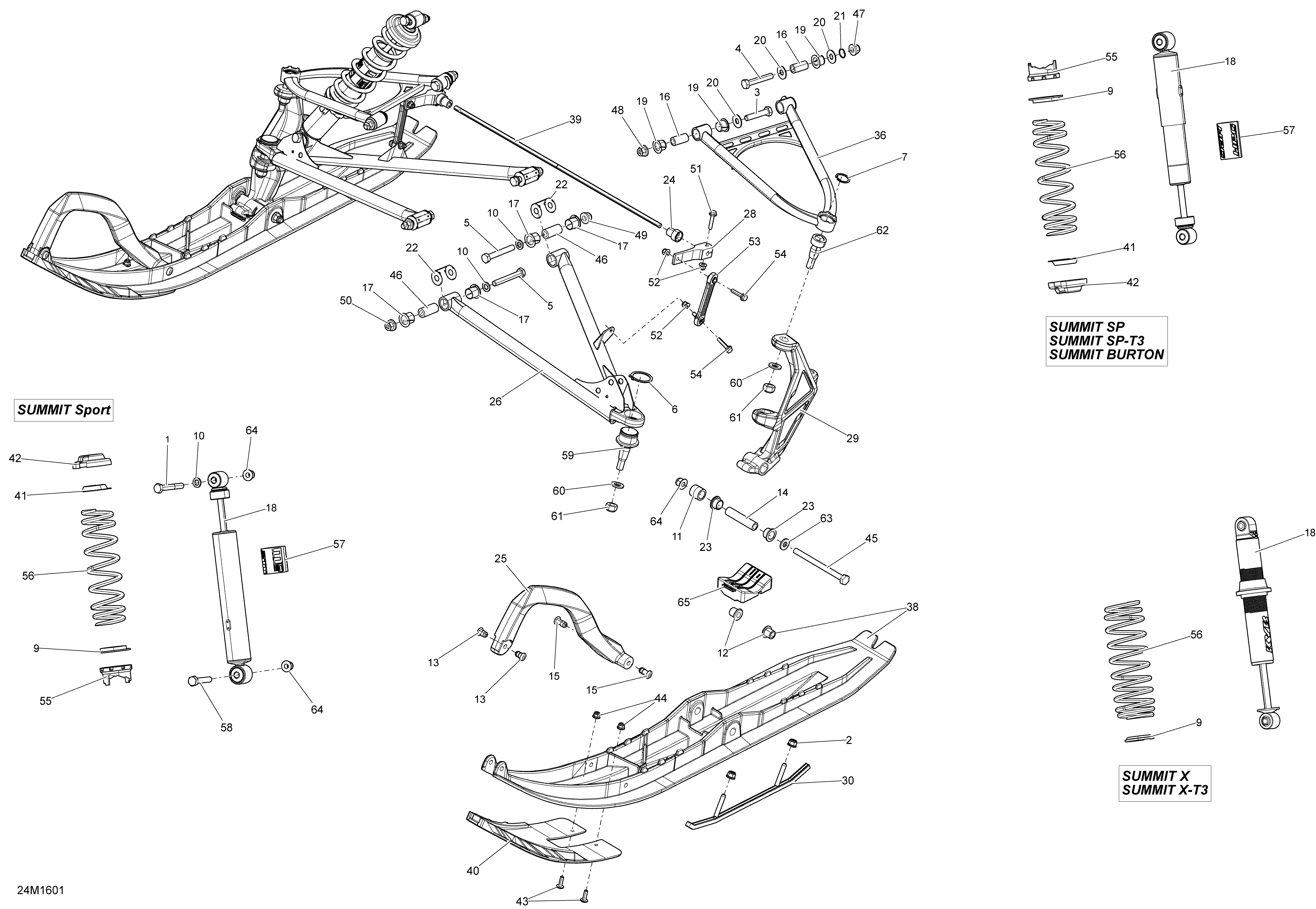

07- Front Suspension And Ski - All Models для BRP Ski-Doo SUMMIT 800R E-TEC - 2016
-
№АртикулНазвание
-
1207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
2233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
3250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
4250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
5250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
6293370035 CirclipCirclip
-
7293370070 CirclipCirclip
-
9503187500 Spring GuideSpring Guide
-
10503189564 WasherWasher
-
11503193651 SpacerSpacer
-
12505071781 CushionCushion
-
13505071812 RetainerRetainer
-
14506133300 SpacerSpacer
-
15505072133 RetainerRetainer
-
16505072143 BushingBushing
-
17505072208 BushingBushing
-
18505073122 Front Shock. Package-SportFront Shock. Package-Sport
-
18505073572 Front Shock. Package-X, X-T3Front Shock. Package-X, X-T3
-
18505073931 Front Shock. Package-Burton, SP, SP-T3Front Shock. Package-Burton, SP, SP-T3
-
19505072250 BushingBushing
-
20505072392 WasherWasher
-
21505072448 O-RingO-Ring
-
22505072634 Wear PlateWear Plate
-
23505072690 Leg CushionLeg Cushion
-
24505072786 BushingBushing
-
25505072976 Black HandleBlack Handle
-
25505073388 Red HandleRed Handle
-
26505073039 Black LH Lower Arm. Package-SportBlack LH Lower Arm. Package-Sport
-
26505073040 Black RH Lower Arm. Package-SportBlack RH Lower Arm. Package-Sport
-
26505073438 Lower LH Arm. Except Package-SportLower LH Arm. Except Package-Sport
-
26505073441 Lower RH Arm. Except Package-SportLower RH Arm. Except Package-Sport
-
28505073176 Stabilisator LeverStabilisator Lever
-
29505073557 Clear LH Ski Leg. Package-SportClear LH Ski Leg. Package-Sport
-
29505073579 Black LH Ski Leg. Package-BurtonBlack LH Ski Leg. Package-Burton
-
29505073579 Black LH Ski Leg. Model Black-Black Except Package-Burton, SportBlack LH Ski Leg. Model Black-Black Except Package-Burton, Sport
-
29505073579 Black LH Ski Leg. Model Black-YellowBlack LH Ski Leg. Model Black-Yellow
-
29505073880 White LH Ski Leg. Model Red-RedWhite LH Ski Leg. Model Red-Red
-
29505073991 Red LH Ski Leg. Model Black-RedRed LH Ski Leg. Model Black-Red
-
29505073558 Clear RH Ski Leg. Package-SportClear RH Ski Leg. Package-Sport
-
29505073580 Black RH Ski Leg. Model Black-Black Except Package-Burton, SportBlack RH Ski Leg. Model Black-Black Except Package-Burton, Sport
-
29505073580 Black RH Ski Leg. Package-BurtonBlack RH Ski Leg. Package-Burton
-
29505073881 White RH Ski Leg. Model Red-RedWhite RH Ski Leg. Model Red-Red
-
29505073992 Red RH Ski Leg. Model Black-RedRed RH Ski Leg. Model Black-Red
-
29505073580 Black RH Ski Leg. Model Black-YellowBlack RH Ski Leg. Model Black-Yellow
-
30860201044 Carbide Runner KitCarbide Runner Kit
-
36505073432 LH Arm. Except Package-SportLH Arm. Except Package-Sport
-
36505073435 RH Arm. Except Package-SportRH Arm. Except Package-Sport
-
36505073466 Black LH Upper Arm 36''. Package-SportBlack LH Upper Arm 36''. Package-Sport
-
36505073467 Black RH Upper Arm 36''. Package-SportBlack RH Upper Arm 36''. Package-Sport
-
38505073227 Black DS Ski 2. Package-SPBlack DS Ski 2. Package-SP
-
38505073227 Black DS Ski 2. Package-XBlack DS Ski 2. Package-X
-
38505073227 Black DS Ski 2. Package-BurtonBlack DS Ski 2. Package-Burton
-
38505073227 Black DS Ski 2. Package-SportBlack DS Ski 2. Package-Sport
-
38505073568 DS Ski. Package-SP-T3DS Ski. Package-SP-T3
-
38505073227 Black DS Ski 2. Package-X-T3 Model Black-YellowBlack DS Ski 2. Package-X-T3 Model Black-Yellow
-
38505073568 DS Ski. Package-X-T3 Model Black-BlackDS Ski. Package-X-T3 Model Black-Black
-
38505073990 DS Ski. Package-X-T3 Model Black-RedDS Ski. Package-X-T3 Model Black-Red
-
39505073609 StabilisatorStabilisator
-
40505073784 Ski Tip. Package-SP-T3, X-T3Ski Tip. Package-SP-T3, X-T3
-
41706200785 CapCap
-
42706200881 Spring Stopper. Package-Sport, Burton, SP, SP-T3Spring Stopper. Package-Sport, Burton, SP, SP-T3
-
42503194270 Spring Stopper. Package-X-T3, XSpring Stopper. Package-X-T3, X
-
43250000770 Hex. Socket Screw M6 X 20Hex. Socket Screw M6 X 20
-
44233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
45250000703 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
46505072214 Bushing. Package-X-T3, XBushing. Package-X-T3, X
-
46505072209 Bushing. Package-Sport, Burton, SP, SP-T3Bushing. Package-Sport, Burton, SP, SP-T3
-
47250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
48250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
49250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
50250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
51207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
52233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
53505073172 Double Ball Joint LinkDouble Ball Joint Link
-
54207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
55505073625 Adjustment CamAdjustment Cam
-
56505072763 Deep Black Spring. Package-SportDeep Black Spring. Package-Sport
-
56505073783 Spring. Package-X-T3, XSpring. Package-X-T3, X
-
56505072792 Deep Black Spring. Package-Burton, SP, SP-T3Deep Black Spring. Package-Burton, SP, SP-T3
-
57516005535 Shock Decal, Mc. Package-SportShock Decal, Mc. Package-Sport
-
57516005533 Shock Decal, HPG. Package-Burton, SP, SP-T3Shock Decal, HPG. Package-Burton, SP, SP-T3
-
58207005554 Hex Screw M10 X 55Hex Screw M10 X 55
-
59505073636 Ball JointBall Joint
-
60503192491 WasherWasher
-
61232521464 Hex Elastic Nut M12Hex Elastic Nut M12
-
62505072913 Upper Ball JointUpper Ball Joint
-
63503192496 WasherWasher
-
64233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
64233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
65505072594 Ski StopperSki Stopper
