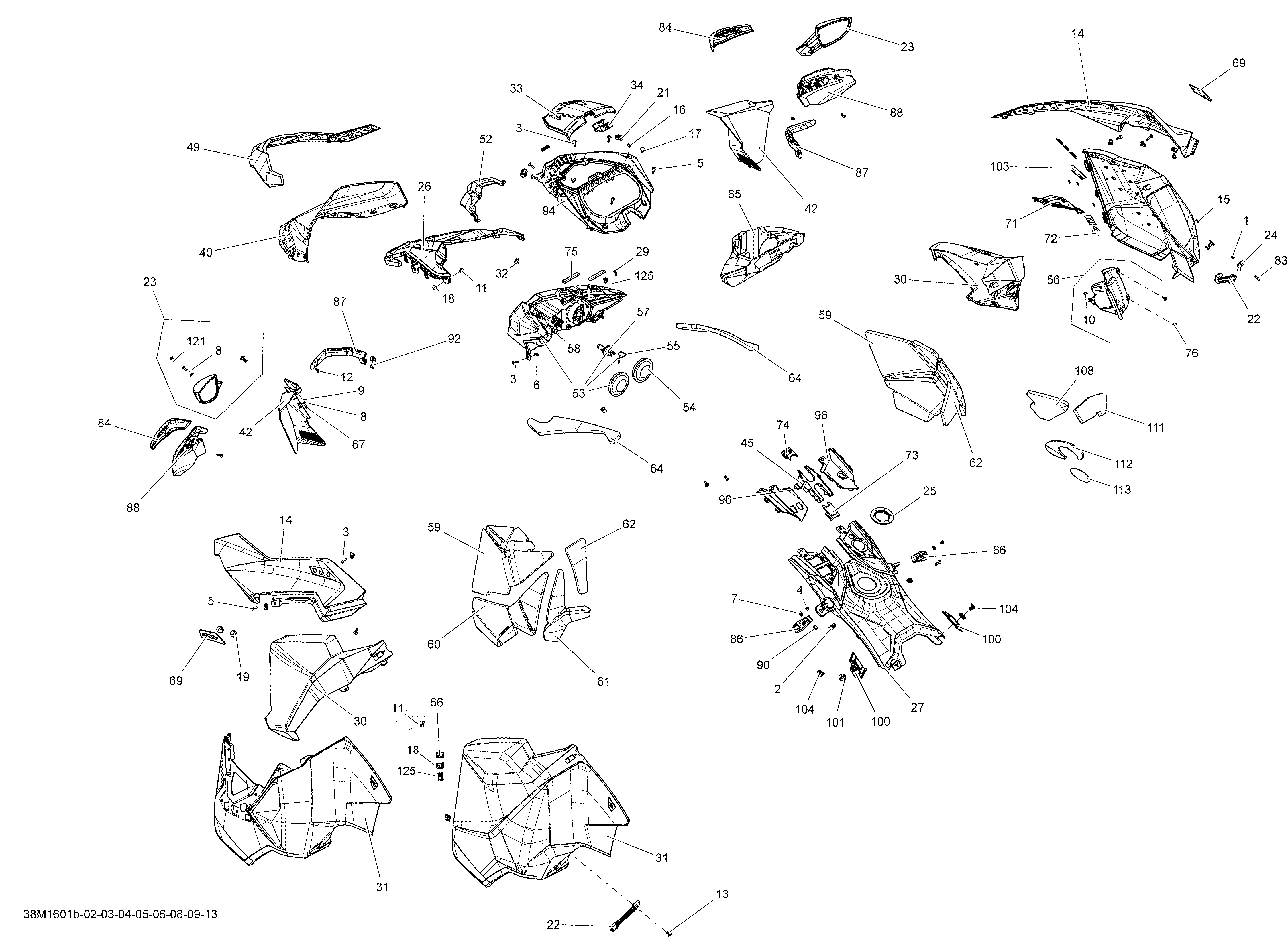

09- Hood - Except Package Sport для BRP Ski-Doo SUMMIT 800R E-TEC - 2016
-
№АртикулНазвание
-
1233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
2250100113 Pannel Nut M6 X 1.0Pannel Nut M6 X 1.0
-
3250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
4250000565 Hexalob Screw M4 X 10Hexalob Screw M4 X 10
-
5250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
6250100035 Jack Nut M5Jack Nut M5
-
7250100156 Weld Nut M4Weld Nut M4
-
8250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
9250200025 Washer M5Washer M5
-
10275500241 Black CapBlack Cap
-
11293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
13293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
14517305239 Deep Black RH Hood. Black-Black ModelDeep Black RH Hood. Black-Black Model
-
14517305240 Deep Black LH Hood. Black-Black ModelDeep Black LH Hood. Black-Black Model
-
14517305284 White RH Hood. White-Black Model Except ExpeditionWhite RH Hood. White-Black Model Except Expedition
-
14517305285 White LH Hood. White-Black Model Except ExpeditionWhite LH Hood. White-Black Model Except Expedition
-
14517305370 Black Mat RH Hood. Black Mat - Red ModelBlack Mat RH Hood. Black Mat - Red Model
-
14517305370 Black Mat RH Hood. Black Mat - Sunburst yellow ModelBlack Mat RH Hood. Black Mat - Sunburst yellow Model
-
14517305371 Black Mat LH Hood. Black Mat - Red ModelBlack Mat LH Hood. Black Mat - Red Model
-
14517305371 Black Mat LH Hood. Black Mat - Sunburst yellow ModelBlack Mat LH Hood. Black Mat - Sunburst yellow Model
-
14517305633 Red LH Hood. Red-White ModelRed LH Hood. Red-White Model
-
14517305634 Red RH Hood. Red-White ModelRed RH Hood. Red-White Model
-
16293830005 Rubber BumperRubber Bumper
-
17414644300 DartDart
-
18517124300 WasherWasher
-
19517302841 GrommetGrommet
-
21517303756 GrommetGrommet
-
22517303612 RH Panel Latch. E-TEC Engine, Package RacingRH Panel Latch. E-TEC Engine, Package Racing
-
22517303808 LH Panel LatchLH Panel Latch
-
24517304221 Latch SupportLatch Support
-
25517304518 Console NutConsole Nut
-
26517304796 Deep Black Center Hood. Black-Black ModelDeep Black Center Hood. Black-Black Model
-
26517304796 Deep Black Center Hood. White-Black Model Except ExpeditionDeep Black Center Hood. White-Black Model Except Expedition
-
26517305369 Red Center Hood. Black Mat - Red ModelRed Center Hood. Black Mat - Red Model
-
26517305562 Yellow Center Hood. Black Mat - Sunburst yellow ModelYellow Center Hood. Black Mat - Sunburst yellow Model
-
26517305632 White Center Hood. Red-White ModelWhite Center Hood. Red-White Model
-
27517305557 White Rear ConsoleWhite Rear Console
-
27517305641 Black Rear ConsoleBlack Rear Console
-
27517305786 Rear Console. RedRear Console. Red
-
29250000725 Screw M4 X 16Screw M4 X 16
-
30517305689 Red LH PanelRed LH Panel
-
30517305681 Red RH Panel. Panel Without Handle Opening - Except Burton PackageRed RH Panel. Panel Without Handle Opening - Except Burton Package
-
30517305679 Red RH Panel. Panel With Handle Opening - Except Burton PackageRed RH Panel. Panel With Handle Opening - Except Burton Package
-
30517305510 Deep Black LH Panel. Except Burton and Sport PackageDeep Black LH Panel. Except Burton and Sport Package
-
30517305507 Deep Black RH Panel. Panel Without Handle Opening - Except Burton PackageDeep Black RH Panel. Panel Without Handle Opening - Except Burton Package
-
30517305508 Black RH Panel. Panel With Handle Opening - Except Burton PackageBlack RH Panel. Panel With Handle Opening - Except Burton Package
-
30517305407 White LH Panel. Burton PackageWhite LH Panel. Burton Package
-
30517305400 White RH Panel. Burton PackageWhite RH Panel. Burton Package
-
30517305580 Sunburst Yellow LH PanelSunburst Yellow LH Panel
-
30517305950 Sunburst Yellow RH.Panel. Panel Without Handle OpeningSunburst Yellow RH.Panel. Panel Without Handle Opening
-
30517305579 Sunburst Yellow RH Panel. Panel With Handle OpeningSunburst Yellow RH Panel. Panel With Handle Opening
-
31517304802 Deep Black RH Panel Trim. Panel Without Handle Opening - Burton PackageDeep Black RH Panel Trim. Panel Without Handle Opening - Burton Package
-
31517304805 Deep Black LH Flashing Panel. Burton PackageDeep Black LH Flashing Panel. Burton Package
-
31517305058 Deep Black RH Panel Trim. Panel With Handle Opening - Burton PackageDeep Black RH Panel Trim. Panel With Handle Opening - Burton Package
-
32250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
33517304912 Upper Storage Access CoverUpper Storage Access Cover
-
34517304917 Cover LatchCover Latch
-
40517304921 Windshield 235mm. Except EuropeWindshield 235mm. Except Europe
-
40517304927 Windshield 345mm. EuropeWindshield 345mm. Europe
-
42517304928 RH Air DeflectorRH Air Deflector
-
42517304929 LH Air DeflectorLH Air Deflector
-
45517304970 Console SupportConsole Support
-
49517304922 Short Windshield SupportShort Windshield Support
-
49517305952 Support. Burton PackageSupport. Burton Package
-
49860200944 Support. SP and Sport PackageSupport. SP and Sport Package
-
52517305010 Deep Black Headlight Trim CapDeep Black Headlight Trim Cap
-
53517305762 HeadlampHeadlamp
-
54219400070 CapCap
-
57515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
55219800282 Holder BracketHolder Bracket
-
58219800281 SpringSpring
-
56517305060 Deep Black RH ConsoleDeep Black RH Console
-
59517305082 RH Upper Panel Foam. Except Burton Package, Except SportRH Upper Panel Foam. Except Burton Package, Except Sport
-
59517305086 LH Upper Panel Foam. Except Burton Package, Except SportLH Upper Panel Foam. Except Burton Package, Except Sport
-
59517305196 RH Upper Panel Foam. Burton PackageRH Upper Panel Foam. Burton Package
-
59517305200 LH Upper Panel Foam. Burton PackageLH Upper Panel Foam. Burton Package
-
60517305087 LH Center Panel Foam. Except Burton Package, Except SportLH Center Panel Foam. Except Burton Package, Except Sport
-
60517305197 RH Center Panel Foam. Burton PackageRH Center Panel Foam. Burton Package
-
60517305201 LH Center Panel Foam. Burton PackageLH Center Panel Foam. Burton Package
-
61517305088 LH Lower Panel Foam. Except Burton Package, Except SportLH Lower Panel Foam. Except Burton Package, Except Sport
-
61517305198 RH Lower Panel Foam. Burton PackageRH Lower Panel Foam. Burton Package
-
61517305202 LH Lower Panel Foam. Burton PackageLH Lower Panel Foam. Burton Package
-
62517305085 RH Rear Panel Foam. Except Burton Package, Except SportRH Rear Panel Foam. Except Burton Package, Except Sport
-
62517305089 LH Rear Panel Foam. Except Burton Package, Except SportLH Rear Panel Foam. Except Burton Package, Except Sport
-
62517305199 RH Rear Panel Foam. Burton PackageRH Rear Panel Foam. Burton Package
-
62517305203 LH Rear Panel Foam. Burton PackageLH Rear Panel Foam. Burton Package
-
64517305090 RH Rear Hood FoamRH Rear Hood Foam
-
64517305091 LH Rear Hood FoamLH Rear Hood Foam
-
65517305095 TrunkTrunk
-
66517305109 Rivet PlateRivet Plate
-
67250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
69517305137 RH Hood Filler PlateRH Hood Filler Plate
-
69517305138 LH Hood Filler PlateLH Hood Filler Plate
-
71517304935 RH Panel Vent Grid. Burton PackageRH Panel Vent Grid. Burton Package
-
71517305140 RH Panel Vent Grid. Except Burton PackageRH Panel Vent Grid. Except Burton Package
-
72517305451 Heat ShieldHeat Shield
-
73517305148 Support Console CapSupport Console Cap
-
74517305147 Deep Black Support Console CapDeep Black Support Console Cap
-
75517305157 Seal JointSeal Joint
-
76250000725 Screw M4 X 16Screw M4 X 16
-
83250000792 Torx Screw M5 X 20. E-TEC Engine, Package RacingTorx Screw M5 X 20. E-TEC Engine, Package Racing
-
84517305588 Yellow RH CapYellow RH Cap
-
84517305589 Yellow LH CapYellow LH Cap
-
86517305279 Panel LatchPanel Latch
-
87517305290 LH ArmLH Arm
-
87517305293 RH ArmRH Arm
-
88517305291 LH DeflectorLH Deflector
-
88517305294 RH DeflectorRH Deflector
-
90250000705 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
92517305296 BrideBride
-
94517305512 Deep Black Indicator SupportDeep Black Indicator Support
-
96517305128 Deep Black LH Front ConsoleDeep Black LH Front Console
-
96517305549 RH Front ConsoleRH Front Console
-
100517305722 LH Panel Clip Ass'yLH Panel Clip Ass'y
-
100517305724 RH Panel Clip Ass'yRH Panel Clip Ass'y
-
101517305723 RingRing
-
103517305731 BumperBumper
-
104517305734 PinPin
-
108517305791 FoamFoam
-
111517305794 FoamFoam
-
112517305795 FoamFoam
-
113517305796 Rubber SheetRubber Sheet
-
121250000721 Torx ScrewTorx Screw
-
125250100158 Push NutPush Nut
-
125732610072 Push Nut. For WindshieldPush Nut. For Windshield
