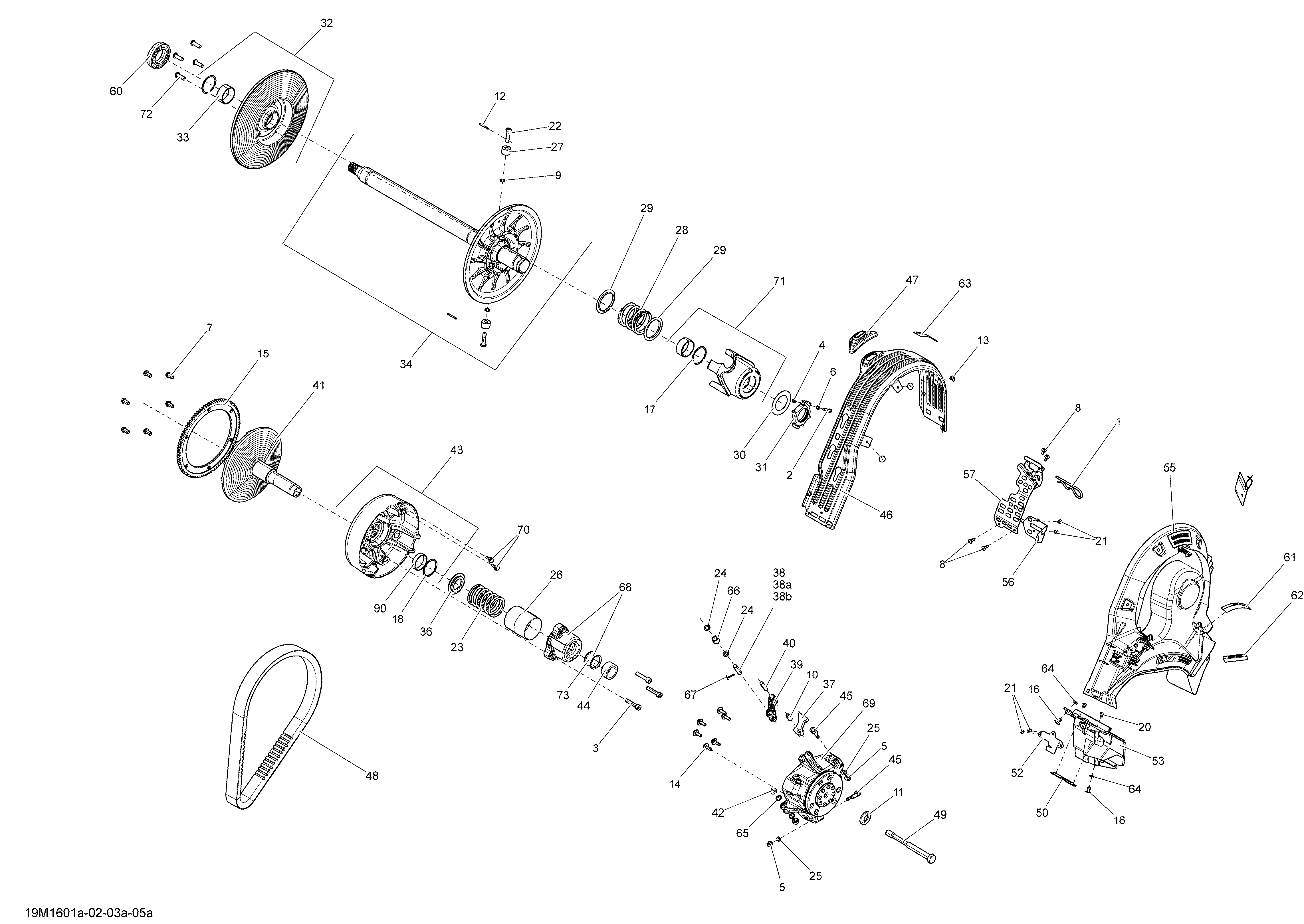

05- Pulley System - 800R E-TEC для BRP Ski-Doo SUMMIT 800R E-TEC - 2016

№

Артикул

Название
1

114045200 Hair Pin

Hair Pin

3 680 ₽
2

205052544 Socket Screw M5 X 25

Socket Screw M5 X 25

600 ₽
3

205084044 Socket Head Screw M8 X 40

Socket Head Screw M8 X 40

1 050 ₽
4

232551414 Elastic Stop Nut M5

Elastic Stop Nut M5

320 ₽
5

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6

490 ₽
6

234051410 Flat Washer M5

Flat Washer M5

190 ₽
7

250000533 Hex. Flange Screw M8 X 16

Hex. Flange Screw M8 X 16

1 120 ₽
8

250000742 Torx Screw M5 X 14

Torx Screw M5 X 14

540 ₽
9

250200009 Lock Washer 8 mm

Lock Washer 8 mm

890 ₽
10

250400050 Spring Pin M10 X 22

Spring Pin M10 X 22

1 120 ₽
11

250200144 Conical Spring Washer M14

Conical Spring Washer M14

4 130 ₽
12

250400063 Spring Pin M3 X 30

Spring Pin M3 X 30

770 ₽
13

293150103 Black Pop Rivet 3/16''

Black Pop Rivet 3/16''

210 ₽
14

250000418 Flanged Hex. Screw M6 X 18, Scotch Grip

Flanged Hex. Screw M6 X 18, Scotch Grip

1 540 ₽
15

417223739 Ring Gear

Ring Gear

91 350 ₽
16

293150104 Pop Rivet 3/16''

Pop Rivet 3/16''

240 ₽
17

293370049 Circlip

Circlip

1 890 ₽
18

293370071 Circlip

Circlip

2 150 ₽
20

390909100 Avex Rivet

Avex Rivet

120 ₽
21

390909200 Avex Rivet

Avex Rivet

170 ₽
22

417127294 Pivot Stud

Pivot Stud

8 140 ₽
23

414762800 Spring, Green/violet. 800R Power TEK

Spring, Green/violet. 800R Power TEK

3 680 ₽
23

414949500 Spring, Violet/pink. Except 800R Power TEK

Spring, Violet/pink. Except 800R Power TEK

3 680 ₽
24

417004302 Stopper Washer

Stopper Washer

3 010 ₽
25

417005600 Washer

Washer

1 540 ₽
26

417009205 Guard

Guard

5 880 ₽
27

417127016 Roller

Roller

17 430 ₽
28

417127062 Violet Spring. 800R Power TEK

Violet Spring. 800R Power TEK

3 680 ₽
28

417127118 Blue Spring

Blue Spring

15 160 ₽
28

417127039 Black Spring

Black Spring

16 770 ₽
29

417127116 Swivel Abutment

Swivel Abutment

3 000 ₽
30

417127155 Washer

Washer

790 ₽
31

415129604 Calibration Ass'y

Calibration Ass'y

4 450 ₽
32

417127317 Sliding Flange Ass'y

Sliding Flange Ass'y

34 270 ₽
33

417127318 Bushing

Bushing

5 230 ₽
34

417127389 Fix Flange Ass'y

Fix Flange Ass'y

56 300 ₽
36

417222312 Spring Seat

Spring Seat

2 970 ₽
37

417223098 Ramp 441. 800R Power TEK

Ramp 441. 800R Power TEK

13 620 ₽
37

417223098 Ramp 441. Package-Burton Models North America

Ramp 441. Package-Burton Models North America

13 620 ₽
37

417223098 Ramp 441. Package-X Models N°: TCGA

Ramp 441. Package-X Models N°: TCGA

13 620 ₽
37

417223098 Ramp 441. Package-SP Models North America

Ramp 441. Package-SP Models North America

13 620 ₽
37

417223049 Ramp 438. Package-X-T3 Models N°:TDGA, TDGB, TDGD, TDGE, TDGG

Ramp 438. Package-X-T3 Models N°:TDGA, TDGB, TDGD, TDGE, TDGG

12 670 ₽
37

417223049 Ramp 438. Package-X-T3 Models N°:TDGH, TDGJ, TDGK, TDGL

Ramp 438. Package-X-T3 Models N°:TDGH, TDGJ, TDGK, TDGL

12 670 ₽
37

417223049 Ramp 438. Package-X-T3 Models N°:TEGA, TEGB, TEGD, TEGE, TEGG

Ramp 438. Package-X-T3 Models N°:TEGA, TEGB, TEGD, TEGE, TEGG

12 670 ₽
37

417223049 Ramp 438. Package-X-T3 Models N°:TEGH, TEGJ, TEGK, TEGL

Ramp 438. Package-X-T3 Models N°:TEGH, TEGJ, TEGK, TEGL

12 670 ₽
37

417223049 Ramp 438. Package-X-T3 Models N°:TKGA, TKGB, TKGD, TKGE, TKGG

Ramp 438. Package-X-T3 Models N°:TKGA, TKGB, TKGD, TKGE, TKGG

12 670 ₽
37

417223049 Ramp 438. Package-X-T3 Models N°:TKGH, TKGJ, TKGK, TKGL

Ramp 438. Package-X-T3 Models N°:TKGH, TKGJ, TKGK, TKGL

12 670 ₽
37

417223049 Ramp 438. Package-SP-T3

Ramp 438. Package-SP-T3

12 670 ₽
37

417222508 Ramp 413. Models N°:CCGE, CCGF, CDGE, CEGE, CEGF

Ramp 413. Models N°:CCGE, CCGF, CDGE, CEGE, CEGF

11 760 ₽
37

417222508 Ramp 413. Models N°:CFGE, CFGF, CXGE, CXGF, CYGA

Ramp 413. Models N°:CFGE, CFGF, CXGE, CXGF, CYGA

11 760 ₽
37

417222508 Ramp 413. Models N°:TCGB, TDGC, TDGF, TDGM

Ramp 413. Models N°:TCGB, TDGC, TDGF, TDGM

11 760 ₽
37

417222508 Ramp 413. Models N°:TEGC, TEGF, TEGN, TJGC

Ramp 413. Models N°:TEGC, TEGF, TEGN, TJGC

11 760 ₽
37

417222508 Ramp 413. Models N°:TKGC, TKGF, TKGM

Ramp 413. Models N°:TKGC, TKGF, TKGM

11 760 ₽
38

417223177 Dowel Pin Ass'y. Include 38 To 38b

Dowel Pin Ass'y. Include 38 To 38b

3 020 ₽
38a

417222595 Threaded Pin, M6. 800R Power TEK

Threaded Pin, M6. 800R Power TEK

8 050 ₽
38a

417222594 Pin. Except 800R Power TEK

Pin. Except 800R Power TEK

7 770 ₽
38b

250000407 Socket Set Screw M6 X 12. 800R Power TEK

Socket Set Screw M6 X 12. 800R Power TEK

410 ₽
38b

250000410 Socket Set Screw M6 X 16. Except 800R Power TEK

Socket Set Screw M6 X 16. Except 800R Power TEK

410 ₽
39

417222671 Lever

Lever

7 360 ₽
40

417223164 Lever Axle

Lever Axle

690 ₽
41

417223232 Fixed Flange Ass'y

Fixed Flange Ass'y

152 600 ₽
42

417223271 Slider Shoe

Slider Shoe

3 490 ₽
43

417223444 Sliding Flange Ass'y

Sliding Flange Ass'y

148 750 ₽
44

417223471 Bushing

Bushing

1 550 ₽
45

417223501 Calibration Screw

Calibration Screw

3 100 ₽
46

417300357 Belt Guard

Belt Guard

29 090 ₽
47

417300381 Guide

Guide

3 010 ₽
48

417300391 Belt

Belt

19 570 ₽
49

417300409 TRA 7 Bolt (M14 X 153.5 mm)

TRA 7 Bolt (M14 X 153.5 mm)

15 160 ₽
50

417300421 Reinforcement Plate

Reinforcement Plate

1 430 ₽
52

417300423 Front Bracket

Front Bracket

1 790 ₽
53

417300422 Front Support. 800R Power TEK

Front Support. 800R Power TEK

540 ₽
53

417300430 Front Support. 800R E-TEC

Front Support. 800R E-TEC

3 850 ₽
55

417300439 CVT Air Duct. 800R Power TEK

CVT Air Duct. 800R Power TEK

9 280 ₽
55

417300440 CVT Air Duct Pulley. 800R E-TEC Except Package-Enduro

CVT Air Duct Pulley. 800R E-TEC Except Package-Enduro

9 280 ₽
56

417300445 Stopper

Stopper

710 ₽
57

417300448 Belt Guard Bracket

Belt Guard Bracket

2 930 ₽
60

504152574 Ball Bearing

Ball Bearing

2 340 ₽
61

516005503 Decal, English

Decal, English

20 ₽
62

516005507 RPM Sticker, English. 800R E-TEC

RPM Sticker, English. 800R E-TEC

830 ₽
62

516006445 RPM Sticker. 800R Power TEK

RPM Sticker. 800R Power TEK

10 ₽
63

516005509 Safety Belt Guard Decal

Safety Belt Guard Decal

20 ₽
64

517225900 Flat Washer

Flat Washer

70 ₽
65

732401030 O-Ring

O-Ring

330 ₽
66

417222947 Roller

Roller

10 660 ₽
67

250400060 Cotter Pin

Cotter Pin

720 ₽
68

417222759 Spring Cover Ass'y

Spring Cover Ass'y

13 110 ₽
69

417223666 Governor Cup Ass'y

Governor Cup Ass'y

40 480 ₽
70

250000416 Serrated Hex. Flange Bolt M6

Serrated Hex. Flange Bolt M6

1 540 ₽
71

417127371 Cam Ass'y. 800R Power TEK

Cam Ass'y. 800R Power TEK

40 560 ₽
71

417127386 Cam Ass'y. Except 800R Power TEK

Cam Ass'y. Except 800R Power TEK

11 240 ₽
72

250000707 Hex. Button Head Screw M8 X 25

Hex. Button Head Screw M8 X 25

190 ₽
73

417009204 Bushing

Bushing

6 060 ₽
90

417223086 Bushing

Bushing

12 670 ₽
