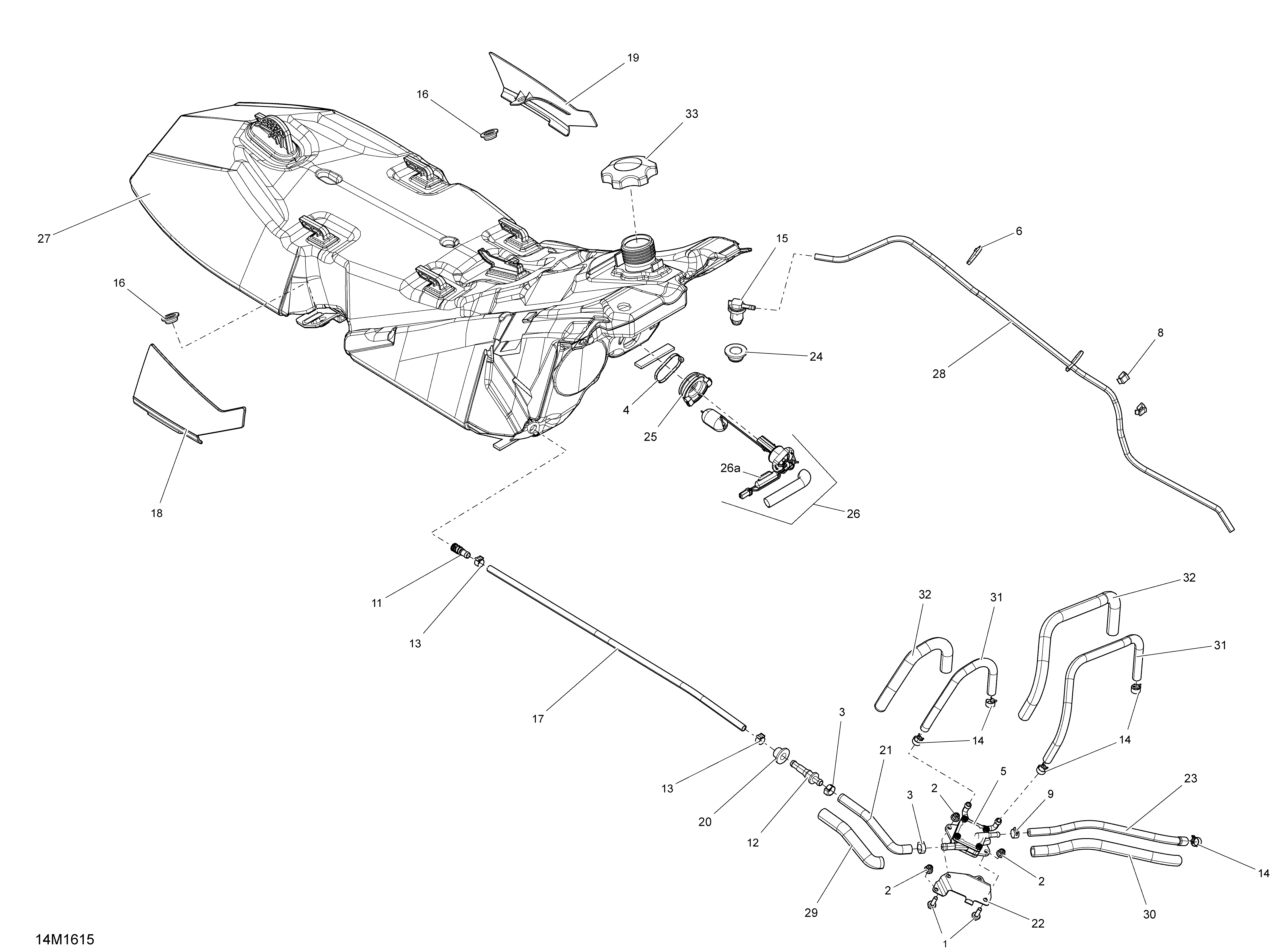

02- Fuel System для BRP Ski-Doo TUNDRA - LT-Sport_2-STROKE - 2016
-
№АртикулНазвание
-
1207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
3293650053 Crimp ClampCrimp Clamp
-
4293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
5403901813 Fuel PumpFuel Pump
-
6414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
8414227300 ClipClip
-
9414415200 Spring ClampSpring Clamp
-
11414872100 Fuel FilterFuel Filter
-
12414872700 Male ConnectorMale Connector
-
13513033010 Norma Spring ClampNorma Spring Clamp
-
14513033029 Universal Spring ClampUniversal Spring Clamp
-
15513033188 Check ValveCheck Valve
-
16513033326 Shoulder BushingShoulder Bushing
-
17513033332 HoseHose
-
18513033418 RH CapRH Cap
-
19513033419 LH CapLH Cap
-
20513033435 GrommetGrommet
-
21513033499 Formed HoseFormed Hose
-
22513033543 Pump BracketPump Bracket
-
23513033553 Formed HoseFormed Hose
-
24513033596 GrommetGrommet
-
25513033606 GrommetGrommet
-
26513033642 Fuel Level Sensor Ass'yFuel Level Sensor Ass'y
-
26a710001995 Fuse, 0.5 AmpereFuse, 0.5 Ampere
-
27513033695 Fuel TankFuel Tank
-
28415080200 Hose, PolyurethaneHose, Polyurethane
-
29415080000 Tubing 16 mmTubing 16 mm
-
31709000666 HoseHose
-
32415080000 Tubing 16 mmTubing 16 mm
-
33513033720 Fuel Tank CapFuel Tank Cap
