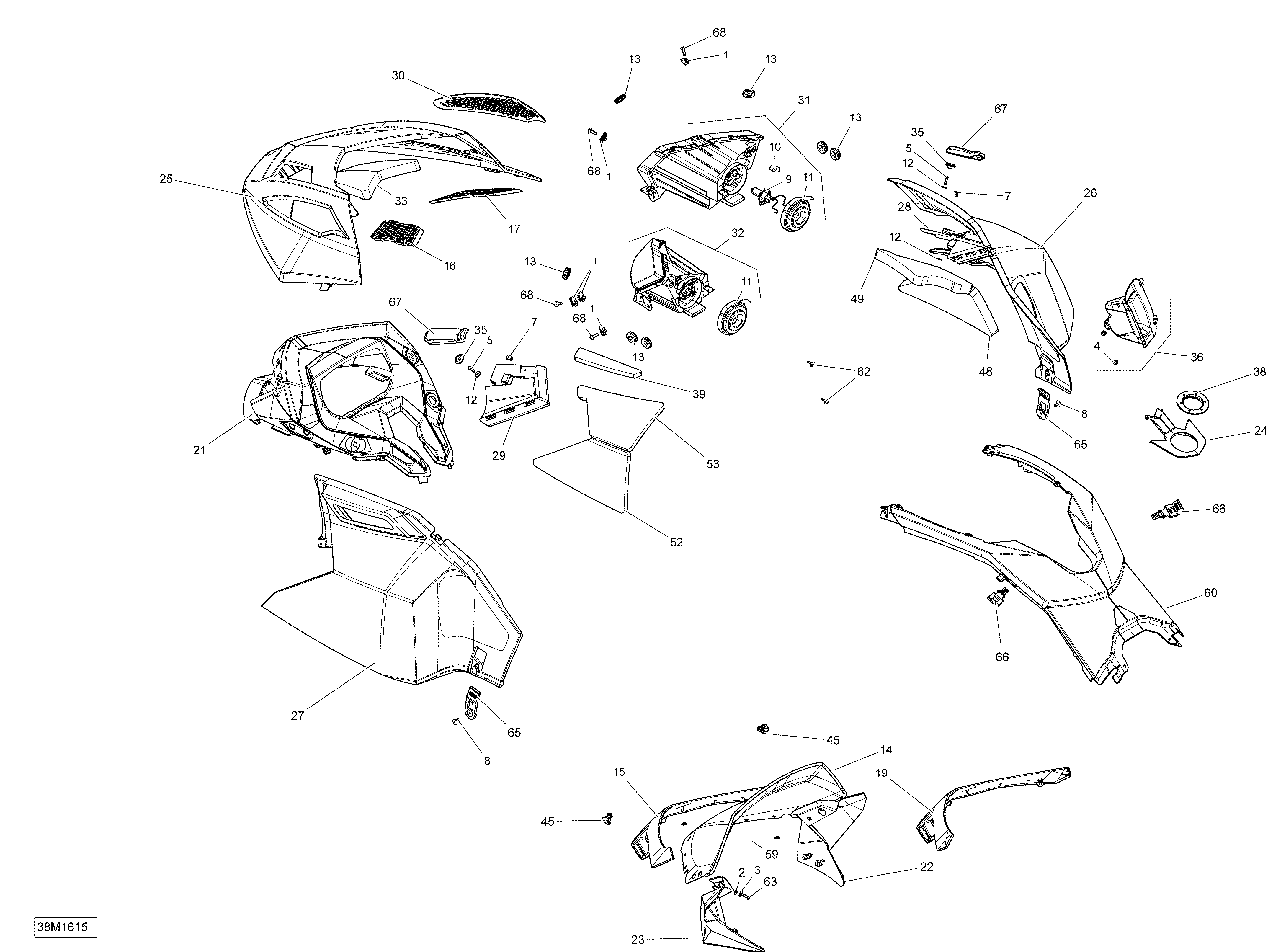

09- Hood для BRP Ski-Doo TUNDRA - LT-Sport_2-STROKE - 2016
-
№АртикулНазвание
-
1250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
2250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
3250200025 Washer M5Washer M5
-
4275500241 Black CapBlack Cap
-
5293150014 Pop Rivet 3/16''Pop Rivet 3/16''
-
7293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
8293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
9515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
10515176498 CapCap
-
11515176499 CoverCover
-
12517124300 WasherWasher
-
13517303756 Grommet. Package SportGrommet. Package Sport
-
13517303756 Grommet. Package LTGrommet. Package LT
-
14517305720 Windshield (430). Package SportWindshield (430). Package Sport
-
14517305721 Windshield (20''). Package LTWindshield (20''). Package LT
-
15517304712 Windshield Support. Package LTWindshield Support. Package LT
-
15860200229 Medium Windshield Support. Package SportMedium Windshield Support. Package Sport
-
15860200228 Low Windshield Support. Package LTLow Windshield Support. Package LT
-
16517303804 LH Hood GrillLH Hood Grill
-
17517303805 RH Hood GrillRH Hood Grill
-
21517303999 Indicator SupportIndicator Support
-
22517304024 RH Console Air Deflector. Package SportRH Console Air Deflector. Package Sport
-
23517304025 LH Console Air Deflector. Package SportLH Console Air Deflector. Package Sport
-
24517304027 Deep Black Cap ConsoleDeep Black Cap Console
-
25517305014 HoodHood
-
26517305016 RH PanelRH Panel
-
27517305017 LH PanelLH Panel
-
28517304090 RH InsertRH Insert
-
29517304092 LH Panel InsertLH Panel Insert
-
30517304187 RH Lateral Hood GrillRH Lateral Hood Grill
-
31517304194 RH Headlamp Ass'yRH Headlamp Ass'y
-
32517304195 LH Headlamp Ass'yLH Headlamp Ass'y
-
33517304877 Foam HoodFoam Hood
-
35517304320 Anchor LinkAnchor Link
-
36517304322 Black RH ConsoleBlack RH Console
-
38517304518 Console NutConsole Nut
-
39517304880 FoamFoam
-
45517304744 ButtonButton
-
48517304870 FoamFoam
-
49517304871 FoamFoam
-
52517304874 FoamFoam
-
53517304875 FoamFoam
-
59732610072 Push NutPush Nut
-
60517305015 ConsoleConsole
-
62250000725 Screw M4 X 16Screw M4 X 16
-
63250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
65517304999 Rear Panel LatchRear Panel Latch
-
66517304093 Center Panel LatchCenter Panel Latch
-
67517305186 Front Latch PanelFront Latch Panel
-
68250000705 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
