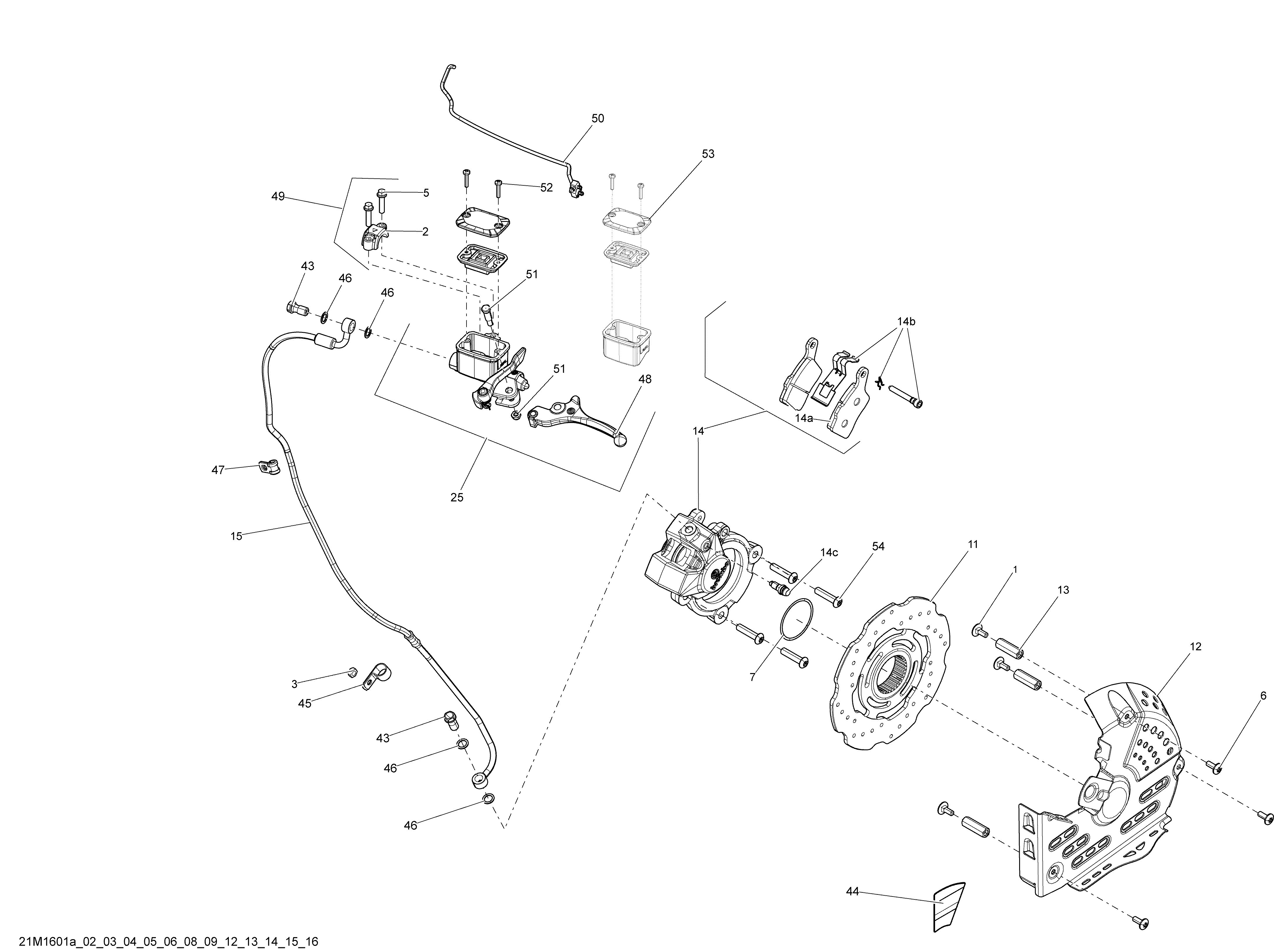

06- Brakes для BRP Ski-Doo TUNDRA - LT-Sport_2-STROKE - 2016
-
№АртикулНазвание
-
1207761644 Carriage Bolt M6 X 16Carriage Bolt M6 X 16
-
2719000049 Clamps KitClamps Kit
-
3232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5250000447 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
6250000717 Torx Head Screw M6 X 16. Except Package-Sport, LTTorx Head Screw M6 X 16. Except Package-Sport, LT
-
6250000365 Torx Screw M6 X 16. Package-SportTorx Screw M6 X 16. Package-Sport
-
7293300134 O-RingO-Ring
-
11507032554 DiskDisk
-
12507032492 Black Disk Protector. Except Package-Sport, LTBlack Disk Protector. Except Package-Sport, LT
-
12507032446 Aluminum Disk Protector. Package-SportAluminum Disk Protector. Package-Sport
-
13507032497 Threaded TubeThreaded Tube
-
14507032498 Brake Caliper Ass'y. Package-Sport, Includes 14 To 14cBrake Caliper Ass'y. Package-Sport, Includes 14 To 14c
-
14507032500 Brake Caliper Ass'y. Package-SP, X, Burton , Includes 14 To 14cBrake Caliper Ass'y. Package-SP, X, Burton , Includes 14 To 14c
-
14a507032473 Brake Pads KitBrake Pads Kit
-
14b507032474 Pin, Clip & Spring KitPin, Clip & Spring Kit
-
14c507032475 BleederBleeder
-
15507032535 HoseHose
-
25507032584 Master Cylinder Ass'y. REV-XPMaster Cylinder Ass'y. REV-XP
-
25507032585 Master Cylinder Ass'y. REV-XMMaster Cylinder Ass'y. REV-XM
-
43507032551 Banjo BoltBanjo Bolt
-
44516005525 Warning DecalWarning Decal
-
45518321570 Open ClampOpen Clamp
-
46705600310 Copper WasherCopper Washer
-
47705600459 ClampClamp
-
48507032476 LeverLever
-
49507032477 Clamp And Screw KitClamp And Screw Kit
-
50507032593 Microswitch. REV-XPMicroswitch. REV-XP
-
50507032592 Microswitch. REV-XMMicroswitch. REV-XM
-
51415030000 Pin Ass'yPin Ass'y
-
52415129356 Screw M4 X 20Screw M4 X 20
-
53507032478 Master Cylinder Reservoir Ass'yMaster Cylinder Reservoir Ass'y
-
54250000764 Hex. Butoon Head Screw M8 X 35Hex. Butoon Head Screw M8 X 35
