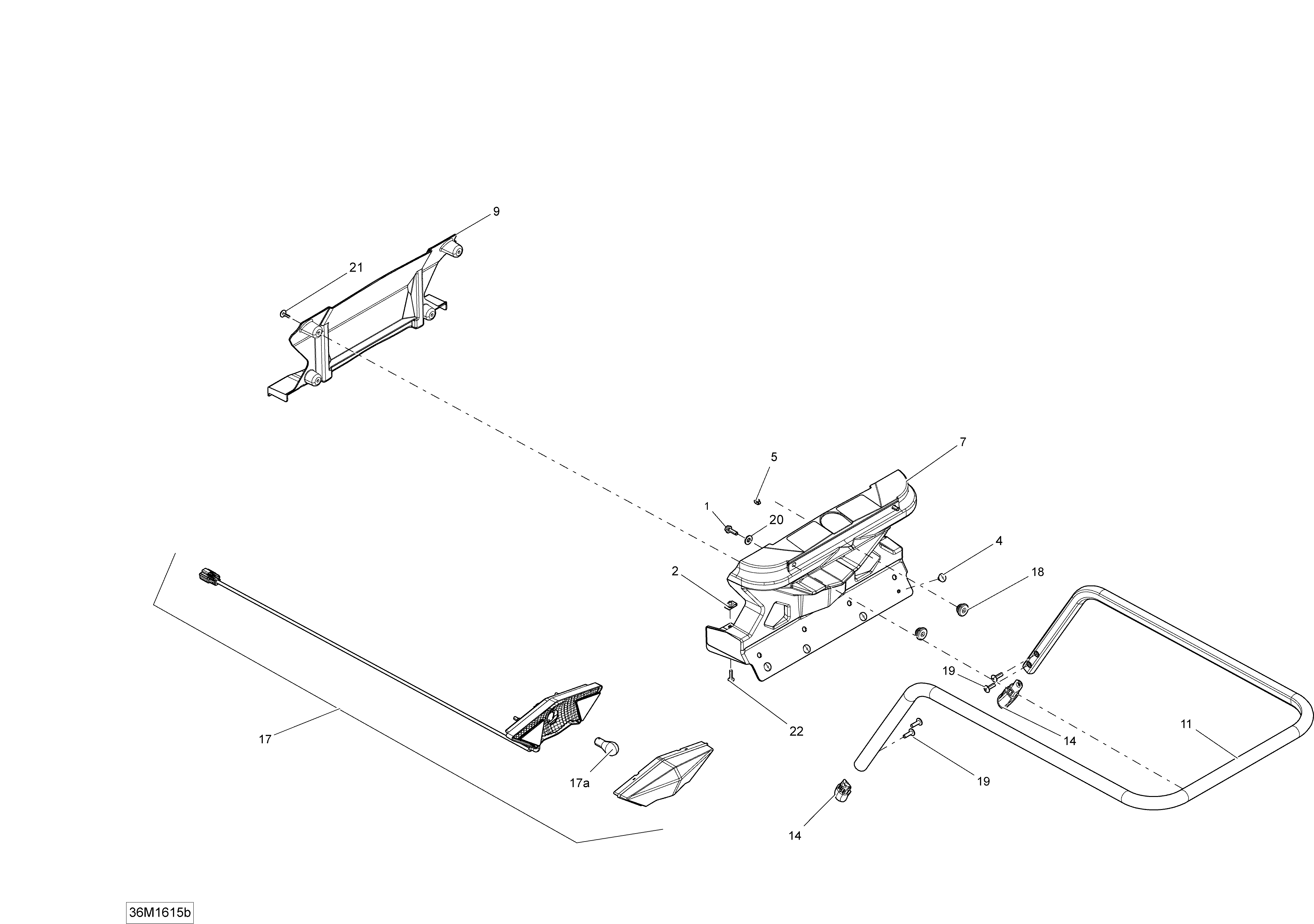

09- Luggage Rack - Package LT для BRP Ski-Doo TUNDRA - LT-Sport_2-STROKE - 2016
-
№АртикулНазвание
-
1207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
4293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
5293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
7511000625 Rear Light SupportRear Light Support
-
9511000701 Rear Cover SupportRear Cover Support
-
11511000706 Luggage RackLuggage Rack
-
14520000899 Black CapBlack Cap
-
17520001559 Rear Light. Includes 17 To 17aRear Light. Includes 17 To 17a
-
17a520000758 BulbBulb
-
18705003666 Rubber GrommetRubber Grommet
-
19250000786 Torx Screw M6 X 20, Scotch GripTorx Screw M6 X 20, Scotch Grip
-
20234062410 Flat Washer 6 mmFlat Washer 6 mm
-
21250000725 Screw M4 X 16Screw M4 X 16
-
22250000724 Torx Screw M5 X 20Torx Screw M5 X 20
