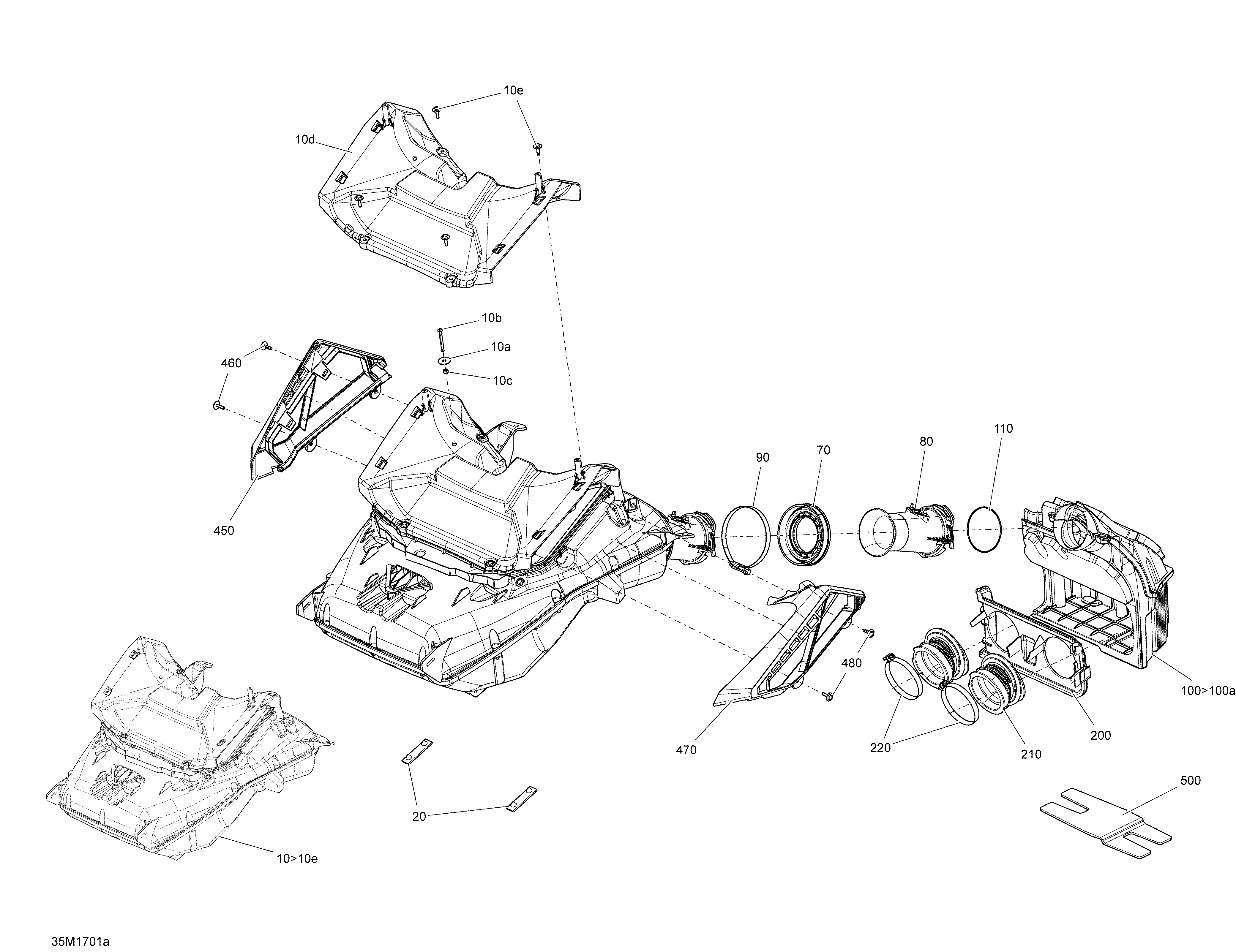

02- Air Intake System - All Models для BRP Ski-Doo GRAND TOURING - 2-STROKE - 2017
-
№АртикулНазвание
-
10508000754 Secondary Chamber Ass'y. Includes 10 to 10eSecondary Chamber Ass'y. Includes 10 to 10e
-
10a224060201 Flat WasherFlat Washer
-
10b205444056 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
10c232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
10d508000732 Air DuctAir Duct
-
10e250000725 Screw M4 X 16Screw M4 X 16
-
20508000744 StopperStopper
-
70508000567 BootBoot
-
80508000662 FluteFlute
-
90514052924 Norma ClampNorma Clamp
-
100508000660 Primary Chamber Ass'y. Includes 100 to 100aPrimary Chamber Ass'y. Includes 100 to 100a
-
100a516005876 Notice Decal, Air Intake SilencerNotice Decal, Air Intake Silencer
-
110293300115 O-RingO-Ring
-
200508000613 Plate AdapterPlate Adapter
-
210508000614 Air Intake AdapterAir Intake Adapter
-
220508000346 Gemi ClampGemi Clamp
-
450508000730 RH Air FilterRH Air Filter
-
460250000725 Screw M4 X 16Screw M4 X 16
-
470508000731 LH Air FilterLH Air Filter
-
480250000725 Screw M4 X 16Screw M4 X 16
-
500508000739 Insulated FoamInsulated Foam
