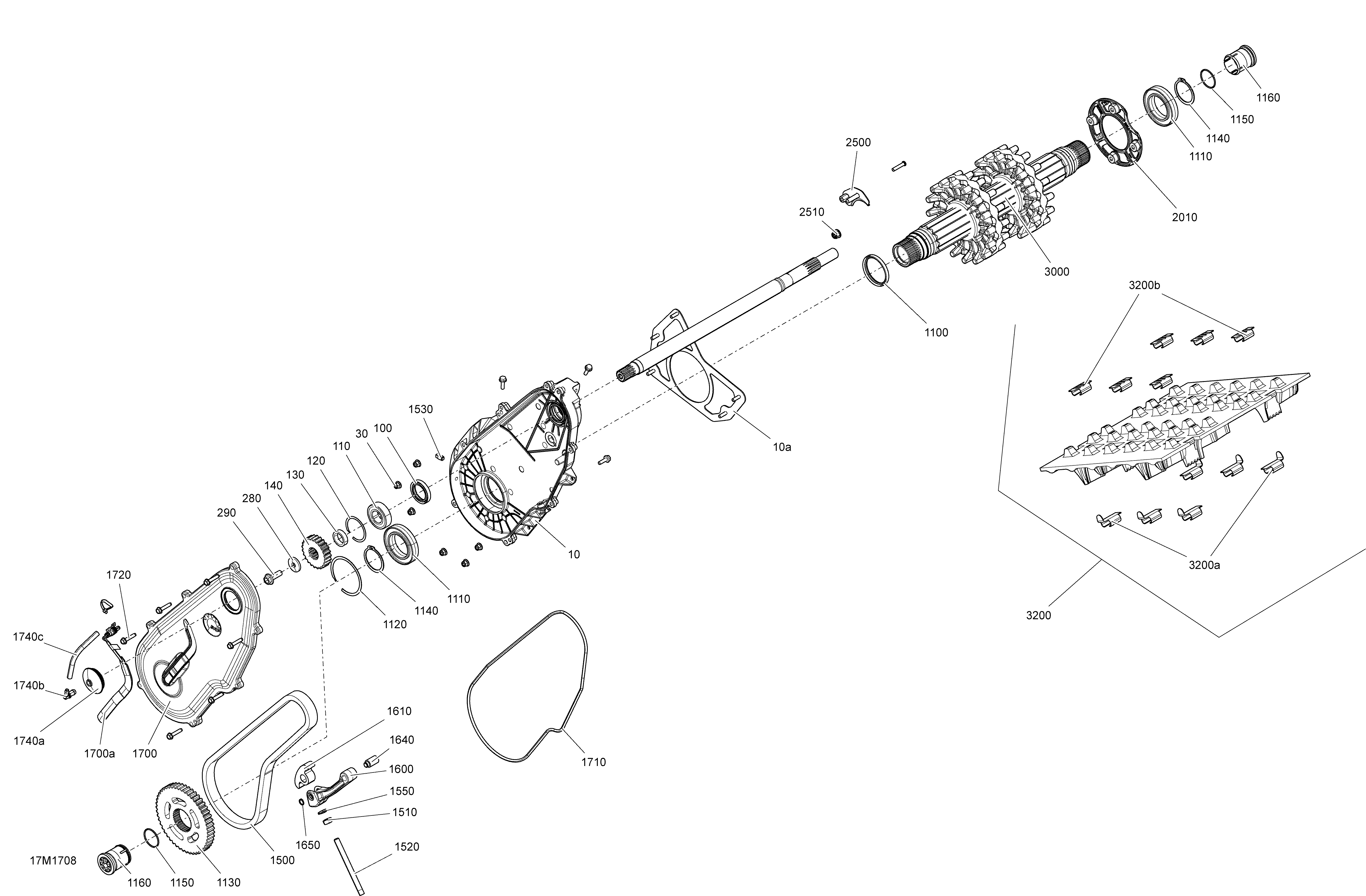

05- Drive System - All Models для BRP Ski-Doo GRAND TOURING - 2-STROKE - 2017
-
№АртикулНазвание
-
10>10a504153405 Chaincase. Inclus 10 to 10aChaincase. Inclus 10 to 10a
-
10a518325816 PlatePlate
-
100415049300 Oil SealOil Seal
-
110293350055 Ball BearingBall Bearing
-
120504152576 CirclipCirclip
-
130504152628 ShimShim
-
140504091000 Sprocket, 23 TeethSprocket, 23 Teeth
-
280504152784 Spring Washer M10Spring Washer M10
-
290207503046 Hex. Flanged Screw M10 X 30, Scotch GripHex. Flanged Screw M10 X 30, Scotch Grip
-
1100504152571 SealSeal
-
1110293350059 Ball BearingBall Bearing
-
1120504152582 CirclipCirclip
-
1130504152593 Sprocket, 45 TeethSprocket, 45 Teeth
-
1140504152572 CirclipCirclip
-
1150293300122 O-RingO-Ring
-
1160504152619 Magnetic CapMagnetic Cap
-
1500504152629 Drive Chain, 104 LinksDrive Chain, 104 Links
-
1510232006414 Hex. Nut M10Hex. Nut M10
-
1520504152602 Adjustment ScrewAdjustment Screw
-
1530504152854 Magnetic PlugMagnetic Plug
-
1550250200100 Bonded WasherBonded Washer
-
1600504153429 Tensioner chainTensioner chain
-
1610504152739 Slider ChainSlider Chain
-
1640504152841 Tensioner AxleTensioner Axle
-
1650504152282 CirclipCirclip
-
1700>1700a504153410 Chaincase Cover Ass'y. Includes 1700 to 1700aChaincase Cover Ass'y. Includes 1700 to 1700a
-
1700a504152896 SensorSensor
-
1710293300130 O-RingO-Ring
-
1720210263050 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
2010504152949 Housing BearingHousing Bearing
-
2500504153418 Bearing HousingBearing Housing
-
2510233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
3000504153269 Drive Axle Ass'yDrive Axle Ass'y
-
3200504153480 Track Ass'y 15''X137''X1.25''Track Ass'y 15''X137''X1.25''
