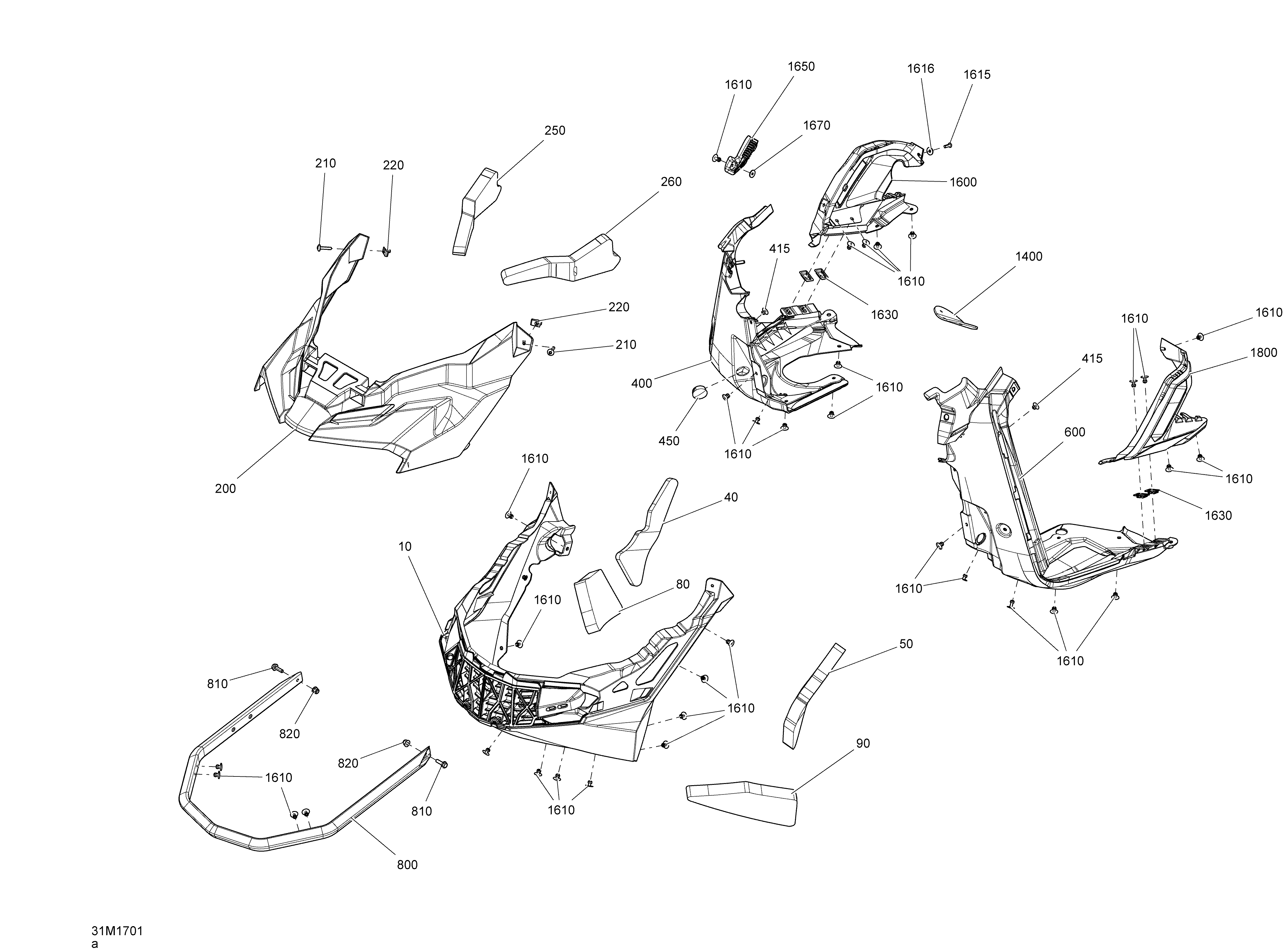

09- Bottom Pan - All Models для BRP Ski-Doo GRAND TOURING - 2-STROKE - 2017
-
№АртикулНазвание
-
10502007172 Black Front Bottom PanBlack Front Bottom Pan
-
40502007243 RH Bottom Pan Upper FoamRH Bottom Pan Upper Foam
-
50502007244 LH Bottom Pan Upper FoamLH Bottom Pan Upper Foam
-
80502007245 RH Bottom Pan Lower FoamRH Bottom Pan Lower Foam
-
90502007246 LH Bottom Pan Lower FoamLH Bottom Pan Lower Foam
-
200502007173 Deep Black Bottom Pan CapDeep Black Bottom Pan Cap
-
210250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
220250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
250502007263 RH Bottom Pan Cap FoamRH Bottom Pan Cap Foam
-
260502007264 LH Bottom Pan Cap FoamLH Bottom Pan Cap Foam
-
400502007340 Black RH Bottom PanBlack RH Bottom Pan
-
415293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
450414916600 Nylon CapNylon Cap
-
600502007175 Black LH Bottom PanBlack LH Bottom Pan
-
800502007176 Black Front BumperBlack Front Bumper
-
810207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
820233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
1400502006935 Snow DeflectorSnow Deflector
-
1600502007297 Deep Black RH Side Bottom Pan PanelDeep Black RH Side Bottom Pan Panel
-
1610293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1615250000652 Socket Screw M5 X 16Socket Screw M5 X 16
-
1616250200025 Washer M5Washer M5
-
1620293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1630517305109 Rivet PlateRivet Plate
-
1650517305280 Stopper BumperStopper Bumper
-
1670517124300 WasherWasher
-
1800502007298 Black LH Side Bottom Pan PanelBlack LH Side Bottom Pan Panel
