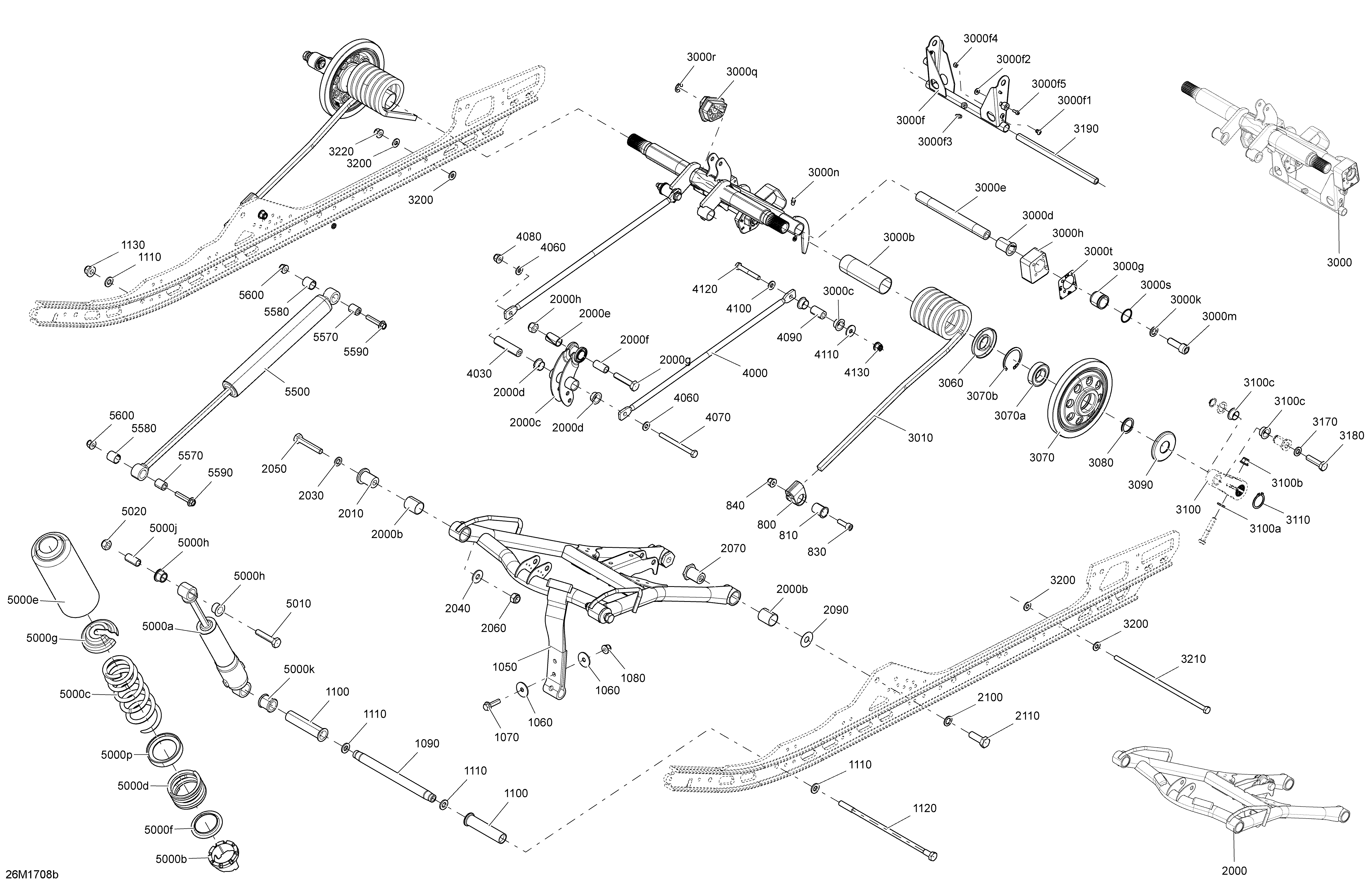

08- Rear Suspension - rMotion - Superior для BRP Ski-Doo GRAND TOURING - 2-STROKE - 2017
-
№АртикулНазвание
-
800503191183 Spring SupportSpring Support
-
M1708ESHA GTX (E), LE, Black-Black. 600HOE, REV-XS, 137''.. North AmericaGTX (E), LE, Black-Black. 600HOE, REV-XS, 137''.. North America
-
810503190754 Retainer CushionRetainer Cushion
-
830205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
840233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
1050503192360 Stopper StrapStopper Strap
-
1050503192759 Stopper StrapStopper Strap
-
1060250200128 Flat Washer 8 mmFlat Washer 8 mm
-
1070207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
1080233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
1090503193435 Pivot AxlePivot Axle
-
1100503191259 Center BushingCenter Bushing
-
1110250200143 Flat WasherFlat Washer
-
1120503193227 Bolt M10 X 251MMBolt M10 X 251MM
-
1130233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
2000503193971 Front Arm Ass'y. Includes 2000 to 2000hFront Arm Ass'y. Includes 2000 to 2000h
-
2000b503191554 BushingBushing
-
2000c503192531 RockerRocker
-
2000d503191555 Swivel BushingSwivel Bushing
-
2000e503193037 BushingBushing
-
2000f503189282 BushingBushing
-
2000g207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
2000h233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
2010503190698 AxleAxle
-
2030503192496 WasherWasher
-
2040503191926 WasherWasher
-
2050207006056 Hex. Cap Screw M10 X 60Hex. Cap Screw M10 X 60
-
2060233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
2070503191966 Lower AxleLower Axle
-
2090503190656 WasherWasher
-
2100503192491 WasherWasher
-
2110250000537 Hex. Cap Screw M12 X 35Hex. Cap Screw M12 X 35
-
3000503193617 Rear Arm Ass'y. Includes 3000 to 3000uRear Arm Ass'y. Includes 3000 to 3000u
-
3000b503192767 BushingBushing
-
3000c503191555 Swivel BushingSwivel Bushing
-
3000d503191640 CushionCushion
-
3000e503192981 Lower ShaftLower Shaft
-
3000f503192823 Pivot Arm Ass'y. Includes 3000f to 3000f5Pivot Arm Ass'y. Includes 3000f to 3000f5
-
3000f1390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
3000f2517225900 Flat WasherFlat Washer
-
3000f3408200700 Grease FittingGrease Fitting
-
3000f4232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
3000f5205041060 Socket Head Screw M4X 10Socket Head Screw M4X 10
-
3000g503192749 Guide BlockGuide Block
-
3000h503192918 LH Cam BlockLH Cam Block
-
3000h503192919 RH Cam BlockRH Cam Block
-
3000k503189276 WasherWasher
-
3000m205523554 Socket Head Screw M12 X 35Socket Head Screw M12 X 35
-
3000n408200700 Grease FittingGrease Fitting
-
3000q503191565 LH Cam AdjusterLH Cam Adjuster
-
3000q503191566 RH Cam AdjusterRH Cam Adjuster
-
3000r293370013 E-CirclipE-Circlip
-
3000s503192921 O-RingO-Ring
-
3000t516004900 LH Block Sticker DecalLH Block Sticker Decal
-
3000t516004901 RH Block Sticker DecalRH Block Sticker Decal
-
3010503193539 Black LH Spring, SquareBlack LH Spring, Square
-
3010503193538 Black RH Spring, SquareBlack RH Spring, Square
-
3060503190434 Labyrinth SealLabyrinth Seal
-
3070503193451 Black Wheel Ass'y 165 mm. Includes 3070 to 3070bBlack Wheel Ass'y 165 mm. Includes 3070 to 3070b
-
3070a503193548 Ball BearingBall Bearing
-
3070b415129780 Retaining RingRetaining Ring
-
3080503189146 Axle SpringAxle Spring
-
3090503192592 Labyrinth RingLabyrinth Ring
-
3100503193069 Link Ass'y. Includes 3100 to 3100cLink Ass'y. Includes 3100 to 3100c
-
3100a503192494 WasherWasher
-
3100b233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
3100c503191555 Swivel BushingSwivel Bushing
-
3110293370080 Retaining RingRetaining Ring
-
3170503192496 WasherWasher
-
3180207204056 Cap Screw Hex. M10 X 40Cap Screw Hex. M10 X 40
-
3190503189156 Pivot Arm AxlePivot Arm Axle
-
3200503192494 WasherWasher
-
3210503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
3220233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
4000503193005 Link RodLink Rod
-
4030503190643 Axle Bar (Long)Axle Bar (Long)
-
4060503192494 WasherWasher
-
4070503193372 Screw M8 X 90Screw M8 X 90
-
4080233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
4090503192555 Axle BarAxle Bar
-
4100503192494 WasherWasher
-
4110234082410 Flat Washer 8 mmFlat Washer 8 mm
-
4120207085586 Hex. Screw M8 X 55Hex. Screw M8 X 55
-
4130233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
5000a503193444 Central ShockCentral Shock
-
5000b505073625 Adjustment CamAdjustment Cam
-
5000c503193837 Black - Spring (Short)Black - Spring (Short)
-
5000d503193067 Black - Spring (Short)Black - Spring (Short)
-
5000e503193663 ProtectorProtector
-
5000f503191872 Spring GuideSpring Guide
-
5000g706200881 Spring StopperSpring Stopper
-
5000h503189117 BushingBushing
-
5000j503189282 BushingBushing
-
5000k503189271 BushingBushing
-
5000p503191281 Spring SpacerSpring Spacer
-
5010207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
5020233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
5500503193646 Rear Shock HPG Ass'yRear Shock HPG Ass'y
-
5570503192606 Rear Shock AxleRear Shock Axle
-
5580505072663 Leg CushionLeg Cushion
-
5590207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
5600233281466 Elastic Flang Nut M8Elastic Flang Nut M8
