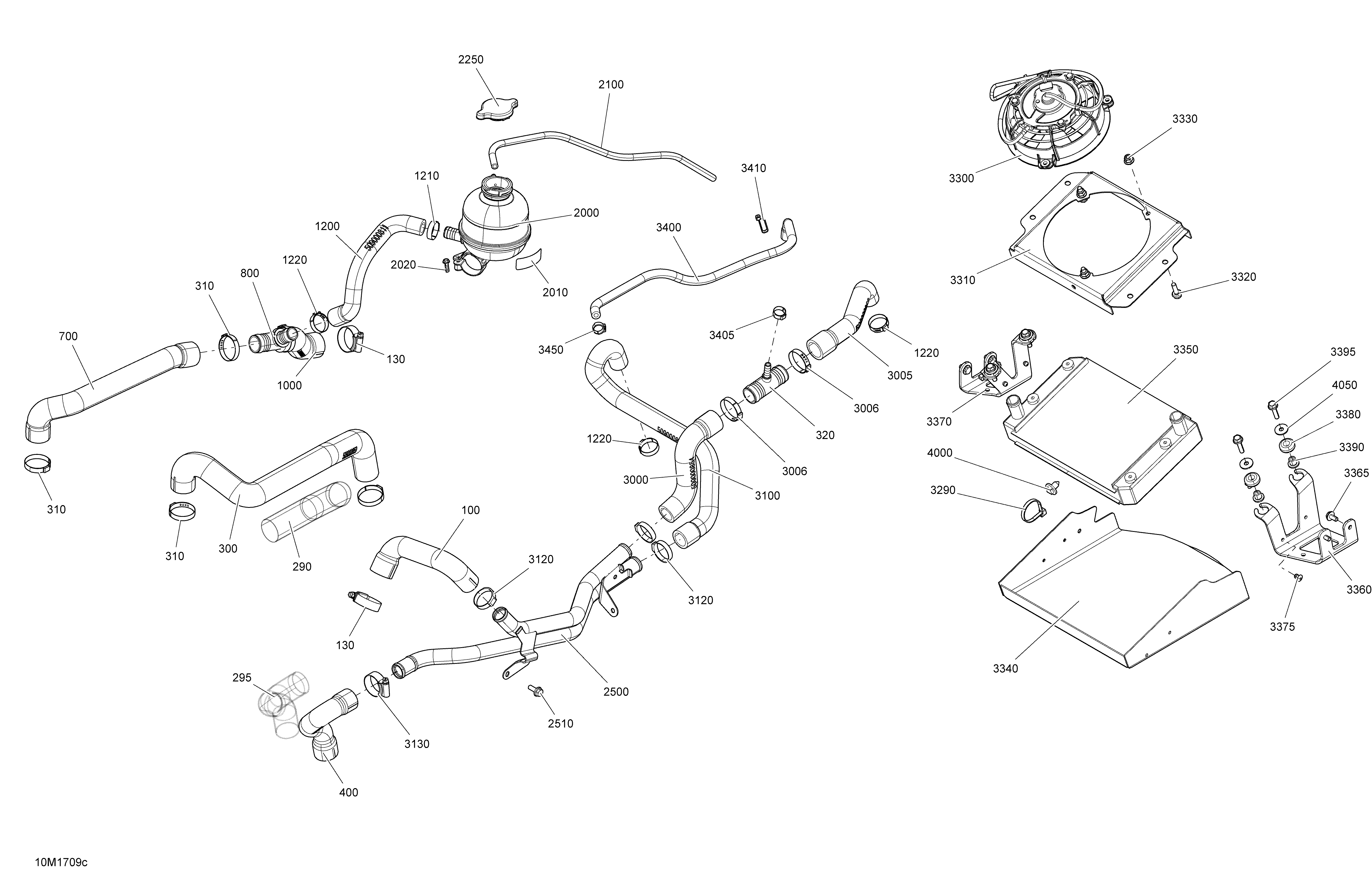

01- Cooling System - 600_900 ACE для BRP Ski-Doo GRAND TOURING - 4-STROKE - 2017
-
№АртикулНазвание
-
100509000863 Engine Outlet Hose. M-903Engine Outlet Hose. M-903
-
100509000913 Engine Outlet Hose. M-602, North AmericaEngine Outlet Hose. M-602, North America
-
100509000932 Engine Outlet Hose. M-602, EuropeEngine Outlet Hose. M-602, Europe
-
130509000443 Aba Gear ClampAba Gear Clamp
-
290509000513 Protector Tube 32 mmProtector Tube 32 mm
-
295509000513 Protector Tube 32 mmProtector Tube 32 mm
-
300509000859 Radiator HoseRadiator Hose
-
310509000529 Oetiker Gear ClampOetiker Gear Clamp
-
320509000510 T-Fitting. M-602, EuropeT-Fitting. M-602, Europe
-
400509000888 Engine Outlet Hose. EuropeEngine Outlet Hose. Europe
-
700509000697 Radiator Return HoseRadiator Return Hose
-
710509000529 Oetiker Gear ClampOetiker Gear Clamp
-
800509000372 T-FittingT-Fitting
-
1000509000864 Engine Inlet Hose. M-903Engine Inlet Hose. M-903
-
1000509000921 Radiator Hose. M-602Radiator Hose. M-602
-
1010509000529 Oetiker Gear ClampOetiker Gear Clamp
-
1020509000443 Aba Gear ClampAba Gear Clamp
-
1200509000811 Filling HoseFilling Hose
-
1210509000442 Oetiker Gear ClampOetiker Gear Clamp
-
1220293650099 Crimp ClampCrimp Clamp
-
2000509000875 Cooling Tank. M-602, EuropeCooling Tank. M-602, Europe
-
2000509000881 Cooling Tank. M-602, North AmericaCooling Tank. M-602, North America
-
2000509000881 Cooling Tank. M-903Cooling Tank. M-903
-
2010516005904 Warning DecalWarning Decal
-
2020241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
2100509000775 HoseHose
-
2250509000180 Pressure CapPressure Cap
-
2500509000800 Water Pipe. EuropeWater Pipe. Europe
-
2510207561634 Hex. Flanged Screw M6 X 16, Scotch Grip. EuropeHex. Flanged Screw M6 X 16, Scotch Grip. Europe
-
3000509000854 Radiator Hose. EuropeRadiator Hose. Europe
-
3005509000862 Radiator Hose. EuropeRadiator Hose. Europe
-
3006509000162 Gear Clamp. EuropeGear Clamp. Europe
-
3010293650099 Crimp Clamp. EuropeCrimp Clamp. Europe
-
3100509000855 Radiator Hose. EuropeRadiator Hose. Europe
-
3110293650099 Crimp Clamp. EuropeCrimp Clamp. Europe
-
3120293650141 Oetiker Gear Clamp. EuropeOetiker Gear Clamp. Europe
-
3130509000931 Gear Clamp. EuropeGear Clamp. Europe
-
3290414115200 Tie-Rap 180 mm. EuropeTie-Rap 180 mm. Europe
-
3300709200573 Fan. EuropeFan. Europe
-
3310509000714 Fan Support. EuropeFan Support. Europe
-
3320207662044 Hex. Flanged Screw M6 X 20. EuropeHex. Flanged Screw M6 X 20. Europe
-
3330233261414 Hex. Flanged Elastic Nut M6. EuropeHex. Flanged Elastic Nut M6. Europe
-
3340509000835 Air Inlet Deflector. EuropeAir Inlet Deflector. Europe
-
3350509000488 Radiator. EuropeRadiator. Europe
-
3360509000933 Support. EuropeSupport. Europe
-
3365207661644 Hex. Flanged Screw M6 X 16. EuropeHex. Flanged Screw M6 X 16. Europe
-
3370509000934 Support. EuropeSupport. Europe
-
3375390909100 Avex Rivet. EuropeAvex Rivet. Europe
-
3380293720053 Grommet. EuropeGrommet. Europe
-
3390293900100 Bushing. EuropeBushing. Europe
-
3395207562544 Hex. Flanged Screw M6 X 25, Scotch Grip. EuropeHex. Flanged Screw M6 X 25, Scotch Grip. Europe
-
3400509000860 Breather Hose. EuropeBreather Hose. Europe
-
3405293650047 Crimp Clamp. EuropeCrimp Clamp. Europe
-
3410293750002 Tie-Rap 142 mm. EuropeTie-Rap 142 mm. Europe
-
3450293650025 Oetiker Gear Clamp. EuropeOetiker Gear Clamp. Europe
-
4000293730040 Mount Dart. EuropeMount Dart. Europe
-
4010414115200 Tie-Rap 180 mm. EuropeTie-Rap 180 mm. Europe
-
4050250200082 Flat WasherFlat Washer
