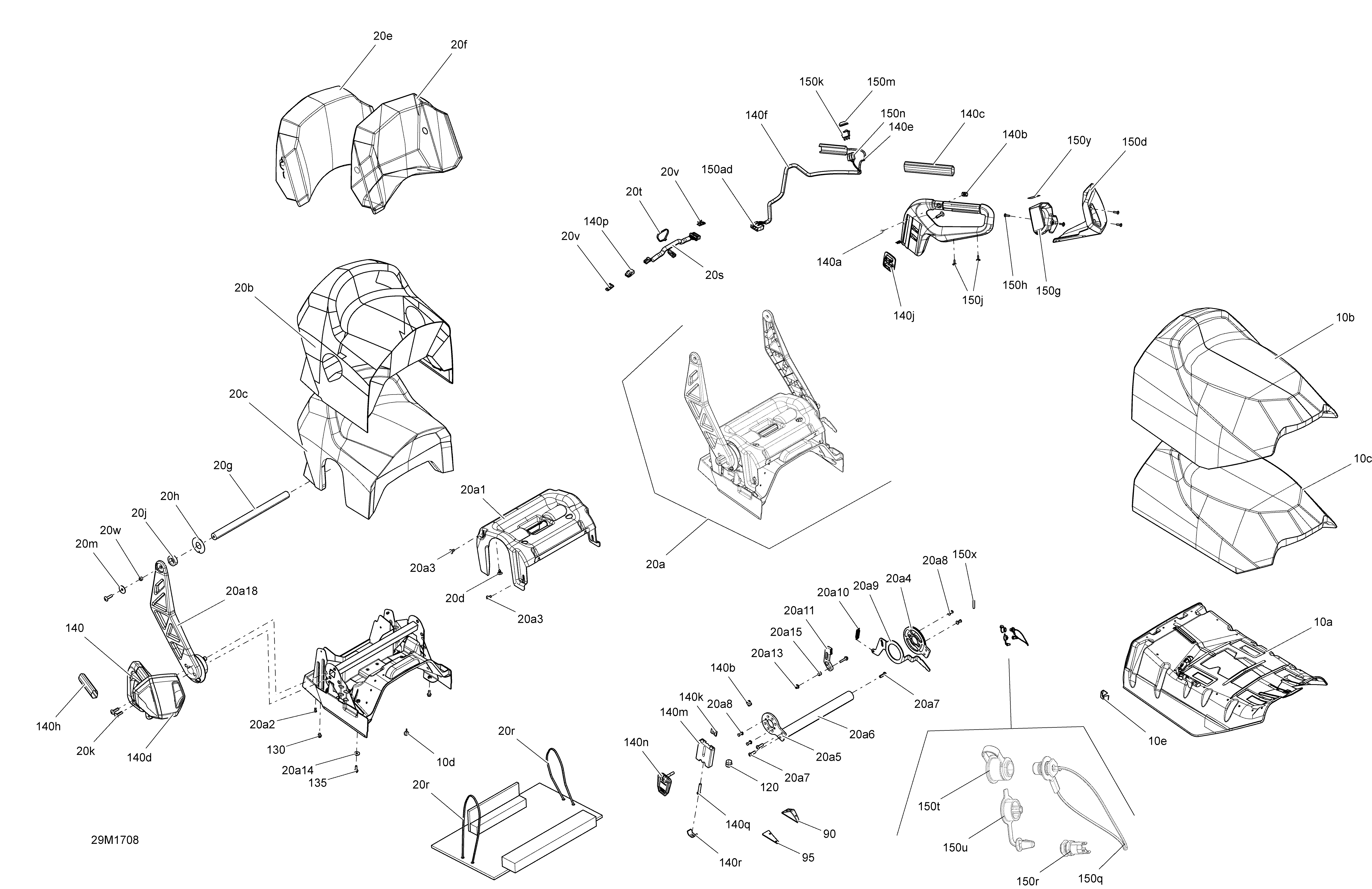

09- Seat - All Models для BRP Ski-Doo GRAND TOURING - 4-STROKE - 2017
-
№АртикулНазвание
-
10a510004775 Front Seat BaseFront Seat Base
-
10b510005181 Seat Cover. Package SportSeat Cover. Package Sport
-
10b510005685 Front Seat Cover. Package LEFront Seat Cover. Package LE
-
10b510006109 Seat Cover. Package SESeat Cover. Package SE
-
10c510004777 Front Seat FoamFront Seat Foam
-
10d708000759 Rubber StopperRubber Stopper
-
10e510004963 Seat Corner, Black. Package LESeat Corner, Black. Package LE
-
10e510004976 Seat Corner, Full Moon. Package SESeat Corner, Full Moon. Package SE
-
10f515175442 Tubing 6 mm. Package SETubing 6 mm. Package SE
-
10g515175220 Tie Rap. Package SETie Rap. Package SE
-
20a510005535 Seat Base Ass'y. Package Sport. Includes 20a to 20a3Seat Base Ass'y. Package Sport. Includes 20a to 20a3
-
20a510005688 Seat Base Ass'y. Package LE, SE. Includes 20a to 20a18Seat Base Ass'y. Package LE, SE. Includes 20a to 20a18
-
20a1510004423 Foam SupportFoam Support
-
20a10514053643 Spring. Package LE, SESpring. Package LE, SE
-
20a11510004392 Adjustment Pivot. Package LE, SEAdjustment Pivot. Package LE, SE
-
20a12207563034 Hex. Flanged Screw M6 X 30, Scotch Grip. Package LE, SEHex. Flanged Screw M6 X 30, Scotch Grip. Package LE, SE
-
20a13233261414 Hex. Flanged Elastic Nut M6. Package LE, SEHex. Flanged Elastic Nut M6. Package LE, SE
-
20a14224061201 Flat Washer. Package LE, SEFlat Washer. Package LE, SE
-
20a15510004425 Bushing. Package LE, SEBushing. Package LE, SE
-
10d708000771 Rubber Stopper. Package LERubber Stopper. Package LE
-
10d708000759 Rubber Stopper. Package SERubber Stopper. Package SE
-
20a18510005465 LH Arm. Package LE, SELH Arm. Package LE, SE
-
20a18510005464 RH Arm. Package LE, SERH Arm. Package LE, SE
-
20a2293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
20a3390402300 Pop Rivet 3/16''. Package SportPop Rivet 3/16''. Package Sport
-
20a3293150100 Pop Rivet 3/16''. Package LE, SEPop Rivet 3/16''. Package LE, SE
-
20a4510004391 Sprocket. Package LE, SESprocket. Package LE, SE
-
20a5510005568 Link Plate. Package LE, SELink Plate. Package LE, SE
-
20a6510005496 Link Tube. Package LE, SELink Tube. Package LE, SE
-
20a7205982586 Socket Head Screw M8 X 25, Scotch Grip. Package LE, SESocket Head Screw M8 X 25, Scotch Grip. Package LE, SE
-
20a8293150129 Steel Rivet. Package LE, SESteel Rivet. Package LE, SE
-
20a9510004385 Handle, Black. Package LE, SEHandle, Black. Package LE, SE
-
20a9510004419 Grip. Package LE, SEGrip. Package LE, SE
-
20b510005399 Rear Seat Cover. Package SportRear Seat Cover. Package Sport
-
20b510005694 Rear Seat Cover. Package LERear Seat Cover. Package LE
-
20b510006112 Seat Cover. Package SESeat Cover. Package SE
-
20c510004791 Rear Seat FoamRear Seat Foam
-
20d414644300 DartDart
-
20e510004782 Backrest FoamBackrest Foam
-
20f510005309 Backrest Cover. Package SportBackrest Cover. Package Sport
-
20f510005353 Backrest Cover. Package LEBackrest Cover. Package LE
-
20f510006116 Backrest Cover. Package SEBackrest Cover. Package SE
-
20g510004377 Upper Backrest AxleUpper Backrest Axle
-
20h510004379 WasherWasher
-
20j510004378 Rubber ShimRubber Shim
-
20k250000745 Torx Truss M/S M8 X30. Package LE, SETorx Truss M/S M8 X30. Package LE, SE
-
20k250000745 Torx Truss M/S M8 X30. Package SportTorx Truss M/S M8 X30. Package Sport
-
20m250200128 Flat Washer 8 mmFlat Washer 8 mm
-
10e510004963 Seat Corner, BlackSeat Corner, Black
-
10e510004964 RH Rear Corner Seat. Package LE, SERH Rear Corner Seat. Package LE, SE
-
10e510004965 LH Rear Corner Seat. Package LE, SELH Rear Corner Seat. Package LE, SE
-
20r293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
20s515176766 Seat Harness. Package Sport, LESeat Harness. Package Sport, LE
-
20s515176649 Seat Harness. Package SESeat Harness. Package SE
-
20t414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
20v515175283 Housing SupportHousing Support
-
20w271000558 SpacerSpacer
-
20x510005539 RH Arm, Black. Package SportRH Arm, Black. Package Sport
-
20y510005538 LH Arm, Black. Package SportLH Arm, Black. Package Sport
-
20z250000745 Torx Truss M/S M8 X30. Package SportTorx Truss M/S M8 X30. Package Sport
-
90518325710 RH Seat Anchor. Package LE, SERH Seat Anchor. Package LE, SE
-
90518325709 LH Seat Anchor. Package LE, SELH Seat Anchor. Package LE, SE
-
95510005216 Spacer. Package LE, SESpacer. Package LE, SE
-
120510005095 Seat Stud. Package LE, SESeat Stud. Package LE, SE
-
130207561044 Flanged Screw M6 X 10, Scotch Grip. Package LE, SEFlanged Screw M6 X 10, Scotch Grip. Package LE, SE
-
135207562044 Flanged Screw M6 X 20, Scotch Grip. Package LE, SEFlanged Screw M6 X 20, Scotch Grip. Package LE, SE
-
140510005853 LH Handle Ass'y. Package LE. Includes 140 to 140rLH Handle Ass'y. Package LE. Includes 140 to 140r
-
140510005854 RH Handle Ass'y. Package LE, SE. Includes 140 to 140rRH Handle Ass'y. Package LE, SE. Includes 140 to 140r
-
140510005856 LH Handle Ass'y. Package SE. Includes 140 to 140aeLH Handle Ass'y. Package SE. Includes 140 to 140ae
-
140510005848 RH Handle Ass'y. Package Sport. Includes 140 to 140pRH Handle Ass'y. Package Sport. Includes 140 to 140p
-
140510005847 LH Handle Ass'y. Package Sport. Includes 140 to 140pLH Handle Ass'y. Package Sport. Includes 140 to 140p
-
140a250000721 Torx ScrewTorx Screw
-
140b293100003 Nut M6Nut M6
-
140c510004449 Handle GripHandle Grip
-
140c510005814 Reinforcement HandleReinforcement Handle
-
140d510005009 RH Air DeflectorRH Air Deflector
-
140e515176999 Heated ElementHeated Element
-
140f515175506 TubingTubing
-
140h510005814 Reinforcement HandleReinforcement Handle
-
140j510004405 Moulding. Package LE, SEMoulding. Package LE, SE
-
140k510004804 Stopper Block. Package LE, SEStopper Block. Package LE, SE
-
140m510004798 Handle Link. Package LE, SEHandle Link. Package LE, SE
-
140n510004806 Lever Lock Ass'y. Package LE, SELever Lock Ass'y. Package LE, SE
-
140p515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
140q250000220 Socket Head Screw M8 X 45. Package LE, SESocket Head Screw M8 X 45. Package LE, SE
-
140r510004565 Handle Clamp. Package LE, SEHandle Clamp. Package LE, SE
-
150d510005010 LH Air DeflectorLH Air Deflector
-
150g510005036 Housing Switch. Package Sport, LEHousing Switch. Package Sport, LE
-
150g510005037 Housing Switch. Package SEHousing Switch. Package SE
-
150h250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
150j250000725 Screw M4 X 16Screw M4 X 16
-
150k510004413 Rocker SwitchRocker Switch
-
150m510004414 Switch ProtectorSwitch Protector
-
150n515176697 Handle HarnessHandle Harness
-
150p515177409 Passager Heated Seat Harness. Package SEPassager Heated Seat Harness. Package SE
-
150q515176698 Visor Connector Harness. Package LE, SEVisor Connector Harness. Package LE, SE
-
150r515177018 Heated Liner Harness. Package LE, SEHeated Liner Harness. Package LE, SE
-
150s572103300 Cap. Package LE, SECap. Package LE, SE
-
150t510004950 Cap. Package LE, SECap. Package LE, SE
-
150u516003809 Intensity Switch Decal. Package SEIntensity Switch Decal. Package SE
-
150w516003937 Connector Decal. Package SportConnector Decal. Package Sport
-
150w516003612 Visor and Liner Decal. Package LE, SEVisor and Liner Decal. Package LE, SE
-
150x516003816 Heated Handle Decal. Package Sport, LEHeated Handle Decal. Package Sport, LE
-
150x516003613 Handle and Seat Decal. Package SEHandle and Seat Decal. Package SE
-
150ac515176033 Male ConnectorMale Connector
-
160510004405 Moulding. Package SportMoulding. Package Sport
-
170250000745 Torx Truss M/S M8 X30. Package SportTorx Truss M/S M8 X30. Package Sport
-
6000207361644 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
-
6001207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
6002224061201 Flat WasherFlat Washer
