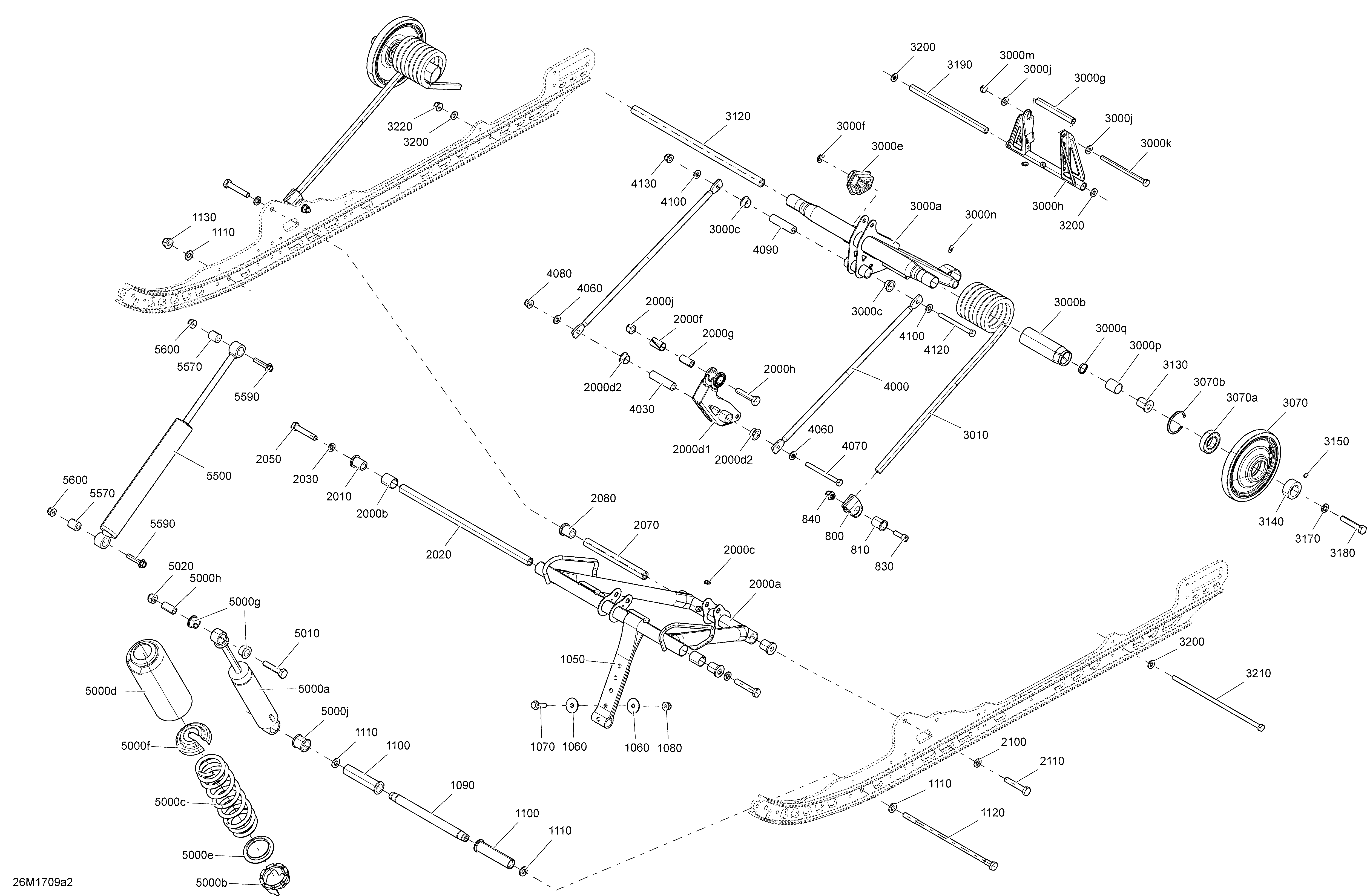

08- Rear Suspension - Package Sport - Superior для BRP Ski-Doo GRAND TOURING - 4-STROKE - 2017
-
№АртикулНазвание
-
800503191183 Spring SupportSpring Support
-
810503190754 Retainer CushionRetainer Cushion
-
830205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
840233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
1050503192360 Stopper StrapStopper Strap
-
1060250200128 Flat Washer 8 mmFlat Washer 8 mm
-
1070207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
1080233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
1090503193435 Pivot AxlePivot Axle
-
1100503191259 Center BushingCenter Bushing
-
1110250200143 Flat WasherFlat Washer
-
1120503193227 Bolt M10 X 251MMBolt M10 X 251MM
-
1130233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
2000a503191752 Front Arm. Includes 2000a to 2000a1Front Arm. Includes 2000a to 2000a1
-
2000b503191556 Extended BushingExtended Bushing
-
2000c408200700 Grease FittingGrease Fitting
-
2000d1503192211 RockerRocker
-
2000d2503191555 Swivel BushingSwivel Bushing
-
2000f503193037 BushingBushing
-
2000g503189282 BushingBushing
-
2000h207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
2000j233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
2010503191262 BushingBushing
-
2020503191215 Upper ShaftUpper Shaft
-
2030503192496 WasherWasher
-
2050250000605 Hex. ScrewS.GRIP M10 X 55Hex. ScrewS.GRIP M10 X 55
-
2070503191279 Lower ShaftLower Shaft
-
2080503189324 BushingBushing
-
2100250200143 Flat WasherFlat Washer
-
2110250000605 Hex. ScrewS.GRIP M10 X 55Hex. ScrewS.GRIP M10 X 55
-
3000a503192253 Rear Arm. Includes 3000a to 3000a1Rear Arm. Includes 3000a to 3000a1
-
3000b572080700 BushingBushing
-
3000c503191555 Swivel BushingSwivel Bushing
-
3000e503191565 LH Cam AdjusterLH Cam Adjuster
-
3000e503191566 RH Cam AdjusterRH Cam Adjuster
-
3000f293370013 E-CirclipE-Circlip
-
3000g503144300 Upper Axle, Pivot ArmUpper Axle, Pivot Arm
-
3000h503191209 Pivot Arm. Includes 3000h to 3000h1Pivot Arm. Includes 3000h to 3000h1
-
3000j503192494 WasherWasher
-
3000k732601197 Bolt M8, ShortBolt M8, Short
-
3000m232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
3000n408200700 Grease FittingGrease Fitting
-
3000p503191556 Extended BushingExtended Bushing
-
3000q503191651 WasherWasher
-
3010503192271 Black LH Spring, Square. Model North AmericaBlack LH Spring, Square. Model North America
-
3010503192270 Black RH Spring, Square. Model North AmericaBlack RH Spring, Square. Model North America
-
3010503193539 Black LH Spring, Square. Model EuropeBlack LH Spring, Square. Model Europe
-
3010503193538 Black RH Spring, Square. Model EuropeBlack RH Spring, Square. Model Europe
-
3070503191738 Black Wheel Ass'y, 155 mm. Includes 3070 to 3070bBlack Wheel Ass'y, 155 mm. Includes 3070 to 3070b
-
3070a503193548 Ball BearingBall Bearing
-
3070b415129780 Retaining RingRetaining Ring
-
3120503191215 Upper ShaftUpper Shaft
-
3130503191262 BushingBushing
-
3140503168800 Retaining RingRetaining Ring
-
3150206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
3170503192496 WasherWasher
-
3180250000605 Hex. ScrewS.GRIP M10 X 55Hex. ScrewS.GRIP M10 X 55
-
3190503189156 Pivot Arm AxlePivot Arm Axle
-
3200503192494 WasherWasher
-
3210503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
3220233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
4000503192255 Linkage RodLinkage Rod
-
4030503190643 Axle Bar (Long)Axle Bar (Long)
-
4060503192494 WasherWasher
-
4070503193372 Screw M8 X 90Screw M8 X 90
-
4080233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
4090503190643 Axle Bar (Long)Axle Bar (Long)
-
4100503192494 WasherWasher
-
4120503193372 Screw M8 X 90Screw M8 X 90
-
4130233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
5000a503192266 Center ShockCenter Shock
-
5000b505073625 Adjustment CamAdjustment Cam
-
5000c503191882 Black SpringBlack Spring
-
5000d503193663 ProtectorProtector
-
5000e503191872 Spring GuideSpring Guide
-
5000f706200881 Spring StopperSpring Stopper
-
5000g503189117 BushingBushing
-
5000h503189282 BushingBushing
-
5000j503189271 BushingBushing
-
5010207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
5020233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
5500503193190 Rear Shock HPG SEAL. Model North AmericaRear Shock HPG SEAL. Model North America
-
5500503194138 Rear Shock. Model EuropeRear Shock. Model Europe
-
5570414936000 BushingBushing
-
5590207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
5600233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
7000503192771 Black - Wheel CapBlack - Wheel Cap
