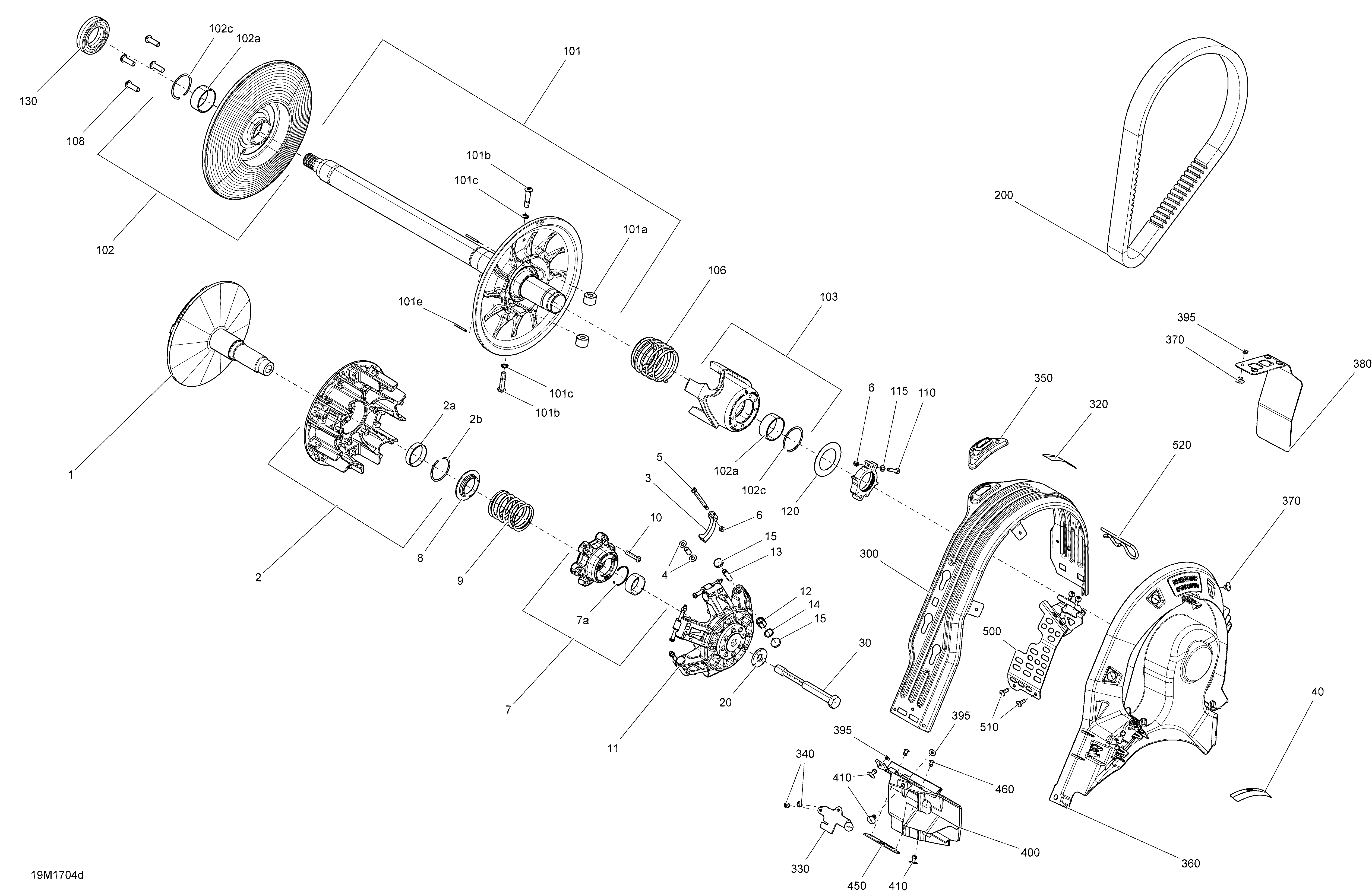

05- Pulley System - 1200 4-TEC для BRP Ski-Doo GRAND TOURING - 4-STROKE - 2017
-
№АртикулНазвание
-
1417224091 Fixed Flange Ass'yFixed Flange Ass'y
-
2>2b417224044 Flange-Slid.Assy. Includes 2 to 2bFlange-Slid.Assy. Includes 2 to 2b
-
2a417222758 BushingBushing
-
2b293370037 CirclipCirclip
-
3417224103 Ramp 749Ramp 749
-
4417223660 Stopper WasherStopper Washer
-
5417223694 Ramp AxleRamp Axle
-
6232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
7>7a417223650 Spring Cover Ass'y. Includes 7 to 7aSpring Cover Ass'y. Includes 7 to 7a
-
7A293370065 CirclipCirclip
-
8417223752 Seat SpringSeat Spring
-
9417224084 Clutch SpringClutch Spring
-
10250000580 Torx Screw M6 X 30Torx Screw M6 X 30
-
11417223865 Governor Cup Ass'yGovernor Cup Ass'y
-
12417224081 RollerRoller
-
13417223257 Roller AxleRoller Axle
-
14293300185 O-RingO-Ring
-
15417223919 Slider ShoeSlider Shoe
-
20250200144 Conical Spring Washer M14Conical Spring Washer M14
-
30417300432 Pulley Drive BoltPulley Drive Bolt
-
40516005503 Decal, EnglishDecal, English
-
101>101e417127362 Fix Flange Ass'y. Includes 101 to 101eFix Flange Ass'y. Includes 101 to 101e
-
101a417127016 RollerRoller
-
101b417127294 Pivot StudPivot Stud
-
101c250200009 Lock Washer 8 mmLock Washer 8 mm
-
101e250400063 Spring Pin M3 X 30Spring Pin M3 X 30
-
102>102c417127317 Sliding Flange Ass'y. Incldues 102 to 102cSliding Flange Ass'y. Incldues 102 to 102c
-
102a417127318 BushingBushing
-
102c293370049 CirclipCirclip
-
103>103b417127476 Cam Ass'y. Includes 103 to 103bCam Ass'y. Includes 103 to 103b
-
103a417127318 BushingBushing
-
103b293370049 CirclipCirclip
-
106417127467 Release SpringRelease Spring
-
108250000707 Hex. Button Head Screw M8 X 25Hex. Button Head Screw M8 X 25
-
110205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
115234051410 Flat Washer M5Flat Washer M5
-
118232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
120417127155 WasherWasher
-
130504152574 Ball BearingBall Bearing
-
200417300383 Drive BeltDrive Belt
-
300417300382 Belt GuardBelt Guard
-
320516005509 Safety Belt Guard DecalSafety Belt Guard Decal
-
330417300467 Front BracketFront Bracket
-
340390909200 Avex RivetAvex Rivet
-
350417300381 GuideGuide
-
360417300466 CVT Air Duct. SECVT Air Duct. SE
-
360417300475 CVT Air Duct. LECVT Air Duct. LE
-
370293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
380417300476 Stopper. SEStopper. SE
-
390293150103 Black Pop Rivet 3/16''. SEBlack Pop Rivet 3/16''. SE
-
395517225900 Flat Washer. SEFlat Washer. SE
-
400417300430 Front SupportFront Support
-
410293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
420517225900 Flat WasherFlat Washer
-
450417300421 Reinforcement PlateReinforcement Plate
-
460390909100 Avex RivetAvex Rivet
-
500417300361 Belt Guard BracketBelt Guard Bracket
-
510250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
520114045200 Hair PinHair Pin
