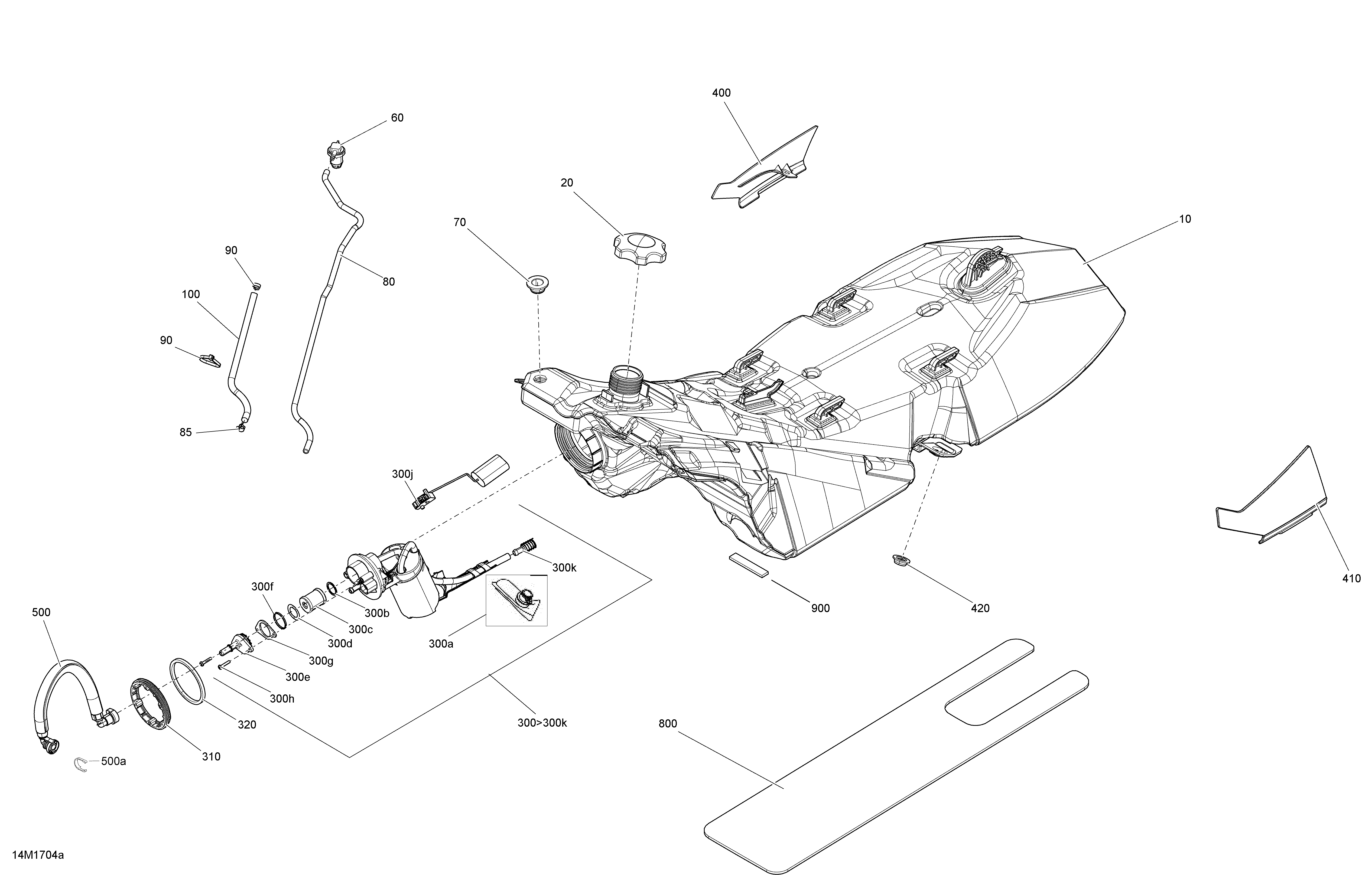

02- Fuel System - All Models для BRP Ski-Doo MXZ - 4-STROKE - 2017
-
№АртикулНазвание
-
10513033667 Fuel TankFuel Tank
-
20513033720 Fuel Tank CapFuel Tank Cap
-
60513033842 Check ValveCheck Valve
-
70513033596 GrommetGrommet
-
80415080200 Hose, PolyurethaneHose, Polyurethane
-
85414554800 Spring ClampSpring Clamp
-
90414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
100504153074 Protector TubeProtector Tube
-
300>300k513033838 Fuel Pump Ass'y. Includes 300 to 300kFuel Pump Ass'y. Includes 300 to 300k
-
300a415129451 Fuel FilterFuel Filter
-
300b415129511 O-RingO-Ring
-
300c415129510 Fuel FilterFuel Filter
-
300d415129512 Wave WasherWave Washer
-
300e415129685 CoverCover
-
300f415129509 O-RingO-Ring
-
300g415129569 Fuel Pump RingFuel Pump Ring
-
300h415129513 ScrewScrew
-
300j415130108 Fuel Level SensorFuel Level Sensor
-
300k414872100 Fuel FilterFuel Filter
-
310513033180 RingRing
-
320513033334 GasketGasket
-
400513033418 RH CapRH Cap
-
410513033419 LH CapLH Cap
-
420513033326 Shoulder BushingShoulder Bushing
-
500513033582 Hose Ass'y. Engine 600-900 ACE. Includes 500 to 500aHose Ass'y. Engine 600-900 ACE. Includes 500 to 500a
-
500513033583 Hose Ass'y. Engine 1200 4-TEC. Includes 500 to 500aHose Ass'y. Engine 1200 4-TEC. Includes 500 to 500a
-
500a513033135 Locking ClipLocking Clip
-
800513033588 Insulating FoamInsulating Foam
-
900513033813 GasketGasket
