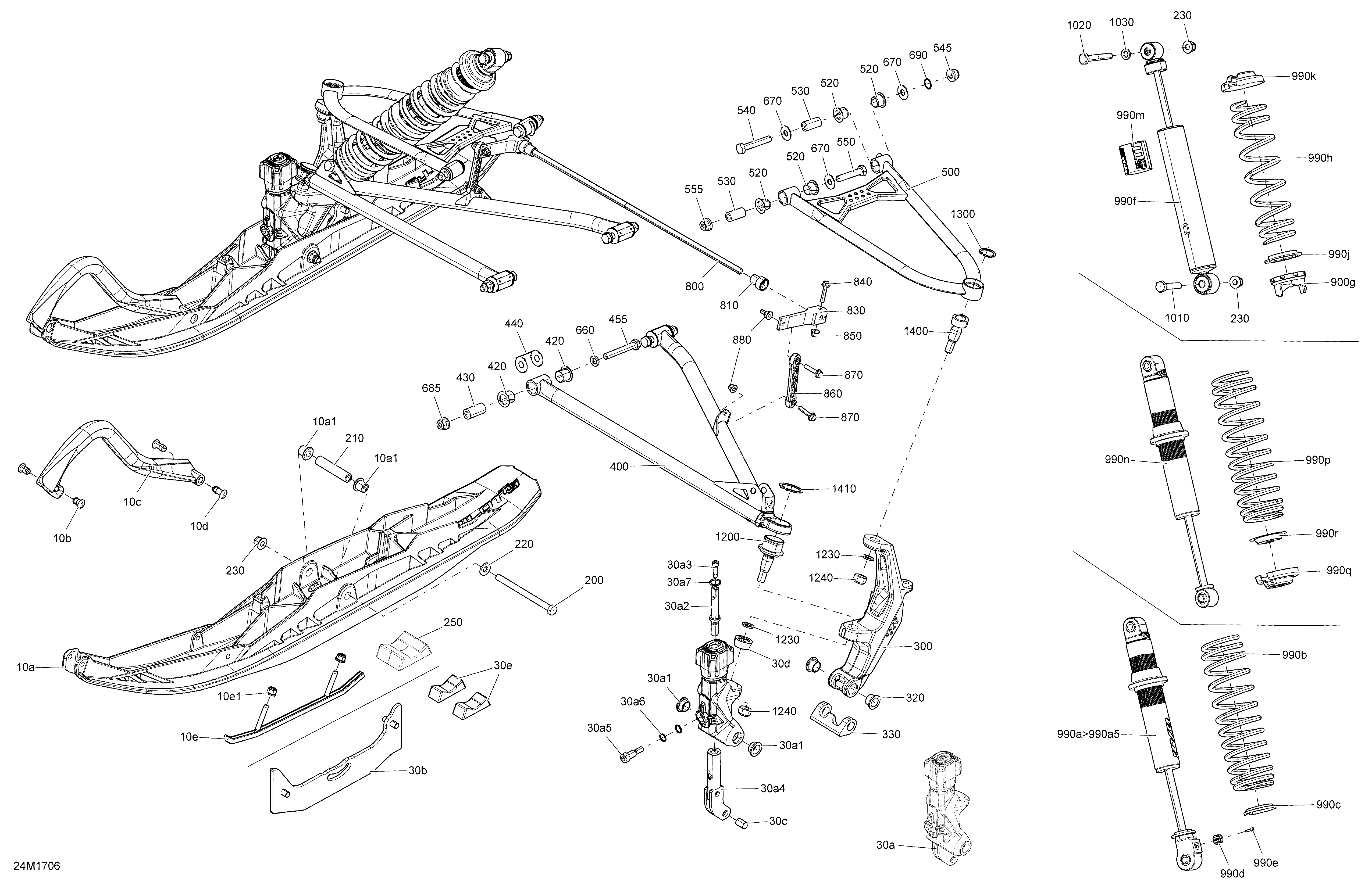

07- Front Suspension And Ski - All Models для BRP Ski-Doo MXZ - 4-STROKE - 2017
-
№АртикулНазвание
-
10a505072855 Deep Black, RH Pilot 5.7 Ski. Sport, TNT, X without Adjustable Ski Pilot TS. Includes 10a to 10a1Deep Black, RH Pilot 5.7 Ski. Sport, TNT, X without Adjustable Ski Pilot TS. Includes 10a to 10a1
-
10a505072854 Deep Black, LH Pilot 5.7 Ski. Sport, TNT, X without Adjustable Ski Pilot TS. Includes 10a to 10a1Deep Black, LH Pilot 5.7 Ski. Sport, TNT, X without Adjustable Ski Pilot TS. Includes 10a to 10a1
-
10a505073796 Deep Black, RH Pilot TS Ski. Blizzard, X with Adjustable ski Pilot TS. Includes 10a to 10a1Deep Black, RH Pilot TS Ski. Blizzard, X with Adjustable ski Pilot TS. Includes 10a to 10a1
-
10a505073786 Deep Black, LH Pilot TS Ski. Blizzard, X with Adjustable ski Pilot TS. Includes 10a to 10a1Deep Black, LH Pilot TS Ski. Blizzard, X with Adjustable ski Pilot TS. Includes 10a to 10a1
-
10a1505071781 Ski BushingSki Bushing
-
10b505071812 Retainer 17mm longRetainer 17mm long
-
10c505070963 Black, Handle. Except BlizzardBlack, Handle. Except Blizzard
-
10c505072102 White Handle. BlizzardWhite Handle. Blizzard
-
10d505072133 Retainer 23mm LongRetainer 23mm Long
-
10e860201044 Carbide Runner Kit (Square Runner). Without Adjustable Ski Pilot TS. Includes 10e to 10e1Carbide Runner Kit (Square Runner). Without Adjustable Ski Pilot TS. Includes 10e to 10e1
-
10e1233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
30a505073789 Black LH Support. With Adjustable Ski Pilot TS. Includes 30a to 30a6Black LH Support. With Adjustable Ski Pilot TS. Includes 30a to 30a6
-
30a505073792 Black RH Support. With Adjustable Ski Pilot TS. Includes 30a to 30a6Black RH Support. With Adjustable Ski Pilot TS. Includes 30a to 30a6
-
30a1505073773 Bushing. With Adjustable Ski Pilot TSBushing. With Adjustable Ski Pilot TS
-
30a2505073771 Shaft. With Adjustable Ski Pilot TSShaft. With Adjustable Ski Pilot TS
-
30a3205562560 Socket Head Screw M6 X 25, Scotch Grip. With Adjustable Ski Pilot TSSocket Head Screw M6 X 25, Scotch Grip. With Adjustable Ski Pilot TS
-
30a4505073761 Tip. With Adjustable Ski Pilot TSTip. With Adjustable Ski Pilot TS
-
30a5505073767 Screw. With Adjustable Ski Pilot TSScrew. With Adjustable Ski Pilot TS
-
30a6293300013 O-Ring. With Adjustable Ski Pilot TSO-Ring. With Adjustable Ski Pilot TS
-
30a7234061600 Flat Washer M6, Stainless. With Adjustable Ski Pilot TSFlat Washer M6, Stainless. With Adjustable Ski Pilot TS
-
30b860201178 Carbide Runner Kit, Ajustable TS Ski. With Adjustable Ski Pilot TSCarbide Runner Kit, Ajustable TS Ski. With Adjustable Ski Pilot TS
-
30c505073782 Pin. With Adjustable Ski Pilot TSPin. With Adjustable Ski Pilot TS
-
30d505073772 Black Rubber Grommet. With Adjustable Ski Pilot TSBlack Rubber Grommet. With Adjustable Ski Pilot TS
-
30e505073788 Ski Stopper. With Adjustable Ski Pilot TSSki Stopper. With Adjustable Ski Pilot TS
-
200250000703 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
210506133300 SpacerSpacer
-
220503192496 WasherWasher
-
230233201464 Hex. Elast. Flanged Nut M10 x 1.5Hex. Elast. Flanged Nut M10 x 1.5
-
250505072594 Ski StopperSki Stopper
-
300505073007 Clear, LH Ski Leg. SportClear, LH Ski Leg. Sport
-
300505073807 Black LH Ski Leg. Except Sport, BlizzardBlack LH Ski Leg. Except Sport, Blizzard
-
300505073867 White LH Ski Leg. BlizzardWhite LH Ski Leg. Blizzard
-
300505073008 Clear, RH Ski Leg. SportClear, RH Ski Leg. Sport
-
300505073808 Black RH Ski Leg. Except Sport, BlizzardBlack RH Ski Leg. Except Sport, Blizzard
-
300505073868 White RH Ski Leg. BlizzardWhite RH Ski Leg. Blizzard
-
320505072690 Leg BushingLeg Bushing
-
330505073779 Leg Stopper. TNT, X without Adjustable Ski Pilot TSLeg Stopper. TNT, X without Adjustable Ski Pilot TS
-
400505072665 Black, LH Lower Arm. SportBlack, LH Lower Arm. Sport
-
400505072664 Black, RH Lower Arm. SportBlack, RH Lower Arm. Sport
-
400505073420 LH Lower Arm 42'', Black Epoxy. Except SportLH Lower Arm 42'', Black Epoxy. Except Sport
-
400505073426 RH Lower Arm 42'', Black Epoxy. Except SportRH Lower Arm 42'', Black Epoxy. Except Sport
-
420505072208 BushingBushing
-
430505072209 SleeveSleeve
-
440505072634 Wear PlateWear Plate
-
450250000291 Screw Hex. M10 X 1.25 X 70Screw Hex. M10 X 1.25 X 70
-
500505073462 Black LH Upper Arm, 42''. SportBlack LH Upper Arm, 42''. Sport
-
500505073463 Black RH Upper Arm, 42''. SportBlack RH Upper Arm, 42''. Sport
-
500505073412 LH Upper Arm 42'', Black Epoxy. Except SportLH Upper Arm 42'', Black Epoxy. Except Sport
-
500505073416 RH Upper Arm 42'', Black Epoxy. Except SportRH Upper Arm 42'', Black Epoxy. Except Sport
-
520505072250 BushingBushing
-
530505072143 SleeveSleeve
-
540250000290 Screw Hex. M10 X 1.25 X 60Screw Hex. M10 X 1.25 X 60
-
545250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
550250000289 Screw Hex. M10 X 1.25 X 50Screw Hex. M10 X 1.25 X 50
-
555250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
660503189564 WasherWasher
-
670505072392 WasherWasher
-
680250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
690505072448 O-RingO-Ring
-
800505072602 StabilisatorStabilisator
-
810505072064 BushingBushing
-
830505072394 Stabilisator LeverStabilisator Lever
-
840207663056 Hex Flanged Screw M6 X 1.0 X 30Hex Flanged Screw M6 X 1.0 X 30
-
850233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
860505072204 Sway Bar Double Joint LinkSway Bar Double Joint Link
-
870207663056 Hex Flanged Screw M6 X 1.0 X 30Hex Flanged Screw M6 X 1.0 X 30
-
880233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
990a>990a5505073702 Front Shock. X. Includes 990a to 990a5Front Shock. X. Includes 990a to 990a5
-
990a1414888312 O-Ring. XO-Ring. X
-
990a2503189308 Piston Ring. XPiston Ring. X
-
990a3505070398 Air Valve. XAir Valve. X
-
990a4505070399 Screw. XScrew. X
-
990a5505070400 O-Ring. XO-Ring. X
-
990b505072761 Deep Black Spring. XDeep Black Spring. X
-
990c503194270 Spring Stopper. XSpring Stopper. X
-
990d505072753 Adjustment Knob. XAdjustment Knob. X
-
990e205031060 Socket Screw M3 X 0.5 x 10. XSocket Screw M3 X 0.5 x 10. X
-
990f505073180 Front Shock. SportFront Shock. Sport
-
990g505073625 Adjustment Cam. SportAdjustment Cam. Sport
-
990h505073265 Deep Black, Spring. SportDeep Black, Spring. Sport
-
990j503187500 Spring Guide. SportSpring Guide. Sport
-
990k706200881 Spring Stopper. SportSpring Stopper. Sport
-
990m516005535 Shock Decal, Mc. SportShock Decal, Mc. Sport
-
990n505073699 Front Shock. 900 ACE, TNT 1200, Blizzard 1200Front Shock. 900 ACE, TNT 1200, Blizzard 1200
-
990p505073332 Deep Black, Spring. 900 ACEDeep Black, Spring. 900 ACE
-
990p505072528 Deep Black Spring. TNT 1200, Blizzard 1200Deep Black Spring. TNT 1200, Blizzard 1200
-
990q706200881 Spring Stopper. 900 ACE, TNT 1200, Blizzard 1200Spring Stopper. 900 ACE, TNT 1200, Blizzard 1200
-
990r706200785 Cap. 900 ACE, TNT 1200, Blizzard 1200Cap. 900 ACE, TNT 1200, Blizzard 1200
-
1010207005554 Hex Screw M10 X 1.5 X 55Hex Screw M10 X 1.5 X 55
-
1020207006544 Hex. Screw M10 X 1.5 X 65Hex. Screw M10 X 1.5 X 65
-
1030503189564 WasherWasher
-
1200505073636 Ball JointBall Joint
-
1230503192491 WasherWasher
-
1240232521464 Hex Elastic Nut M12 X 1.25Hex Elastic Nut M12 X 1.25
-
1300293370070 CirclipCirclip
-
1400505072913 Upper Ball JointUpper Ball Joint
-
1410293370035 CirclipCirclip
-
6000503192496 WasherWasher
-
6001233201464 Hex. Elast. Flanged Nut M10 x 1.5Hex. Elast. Flanged Nut M10 x 1.5
-
6002505072594 Ski StopperSki Stopper
-
6003233201464 Hex. Elast. Flanged Nut M10 x 1.5Hex. Elast. Flanged Nut M10 x 1.5
