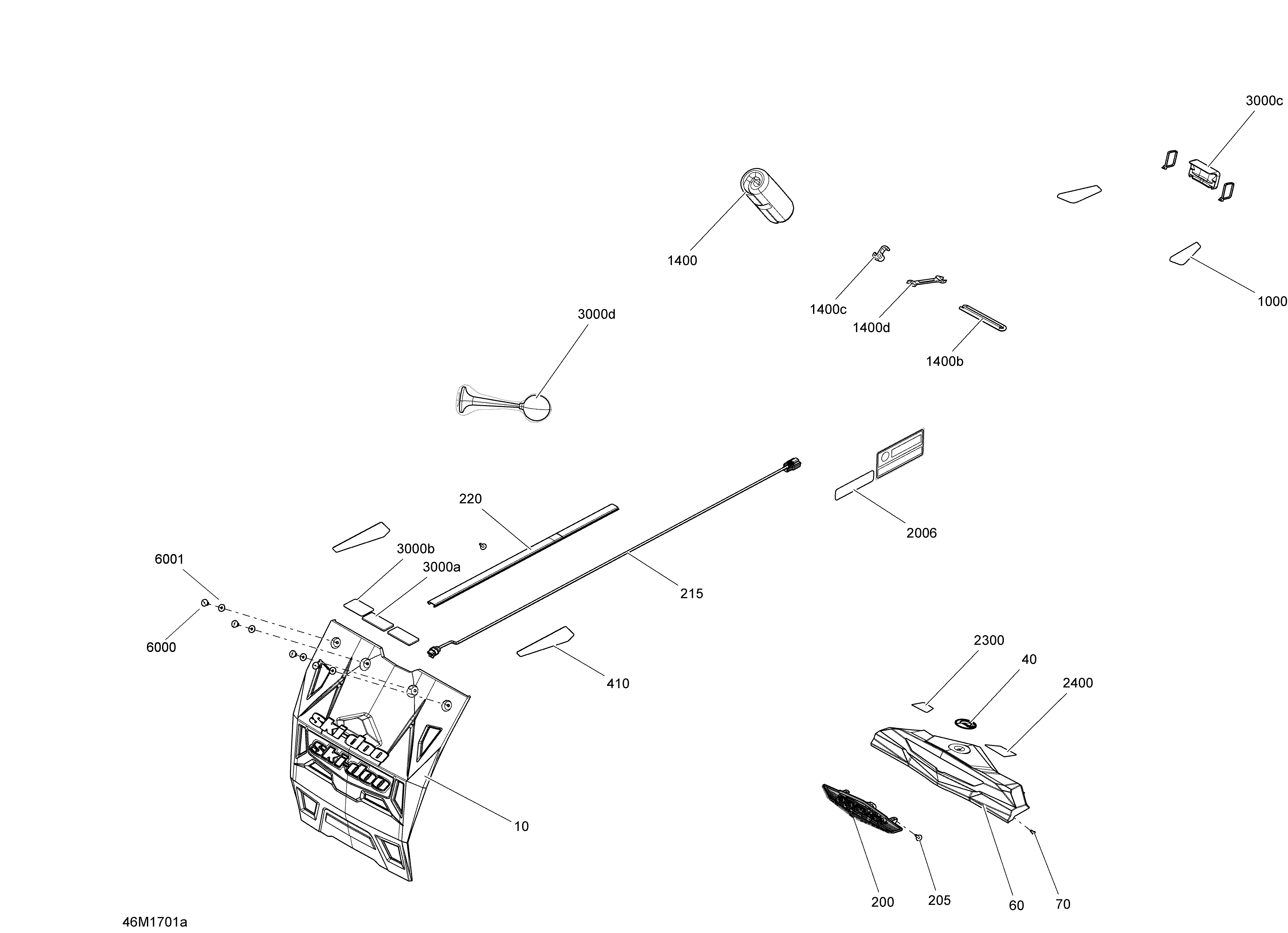

09- Utilities - All Models для BRP Ski-Doo MXZ - 4-STROKE - 2017
-
№АртикулНазвание
-
10520001318 Snow Guard. Package SportSnow Guard. Package Sport
-
10520001342 Snow Guard. Except Package SportSnow Guard. Except Package Sport
-
11516005175 Warning Decal, TrackWarning Decal, Track
-
40516006887 BRP Logo, 48 mmBRP Logo, 48 mm
-
60511000810 Light FairingLight Fairing
-
70241141340 Hex. Screw K40 X 13Hex. Screw K40 X 13
-
200520001143 Rear LightRear Light
-
205250000725 Screw M4 X 16Screw M4 X 16
-
215515178062 Wiring HarnessWiring Harness
-
225520000829 Radiator TrimRadiator Trim
-
410520001239 Red RH Rear Reflector. Model North AmericaRed RH Rear Reflector. Model North America
-
410520001238 Red LH Rear Reflector. Model North AmericaRed LH Rear Reflector. Model North America
-
1000520001237 Yellow RH Front ReflectorYellow RH Front Reflector
-
1000520001236 Yellow LH Front ReflectorYellow LH Front Reflector
-
1400520001591 Tools Kit. Except Package Sport. Includes 1400 to 1400dTools Kit. Except Package Sport. Includes 1400 to 1400d
-
1400520001593 Tools Kit. Package Sport. Includes 1400 to 1400fTools Kit. Package Sport. Includes 1400 to 1400f
-
1400a529000004 Screw Driver. Package SportScrew Driver. Package Sport
-
1400b529000046 Set Key, 16/21 mm. Package SportSet Key, 16/21 mm. Package Sport
-
1400c529000002 Fork Wrench, 10/13 mmFork Wrench, 10/13 mm
-
1400d412500200 Starter Rope, Meter. Package SportStarter Rope, Meter. Package Sport
-
1400e529000060 Starter Grip. Package SportStarter Grip. Package Sport
-
1400f520001499 Wrench. Package SportWrench. Package Sport
-
1600520000894 Tool Kit Rack. Package SportTool Kit Rack. Package Sport
-
1610520000528 Latch. Package SportLatch. Package Sport
-
2300516006914 Security Label, XSSecurity Label, XS
-
2400516005058 Warning Decal, SafetyWarning Decal, Safety
-
6000293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
6001517124300 WasherWasher
