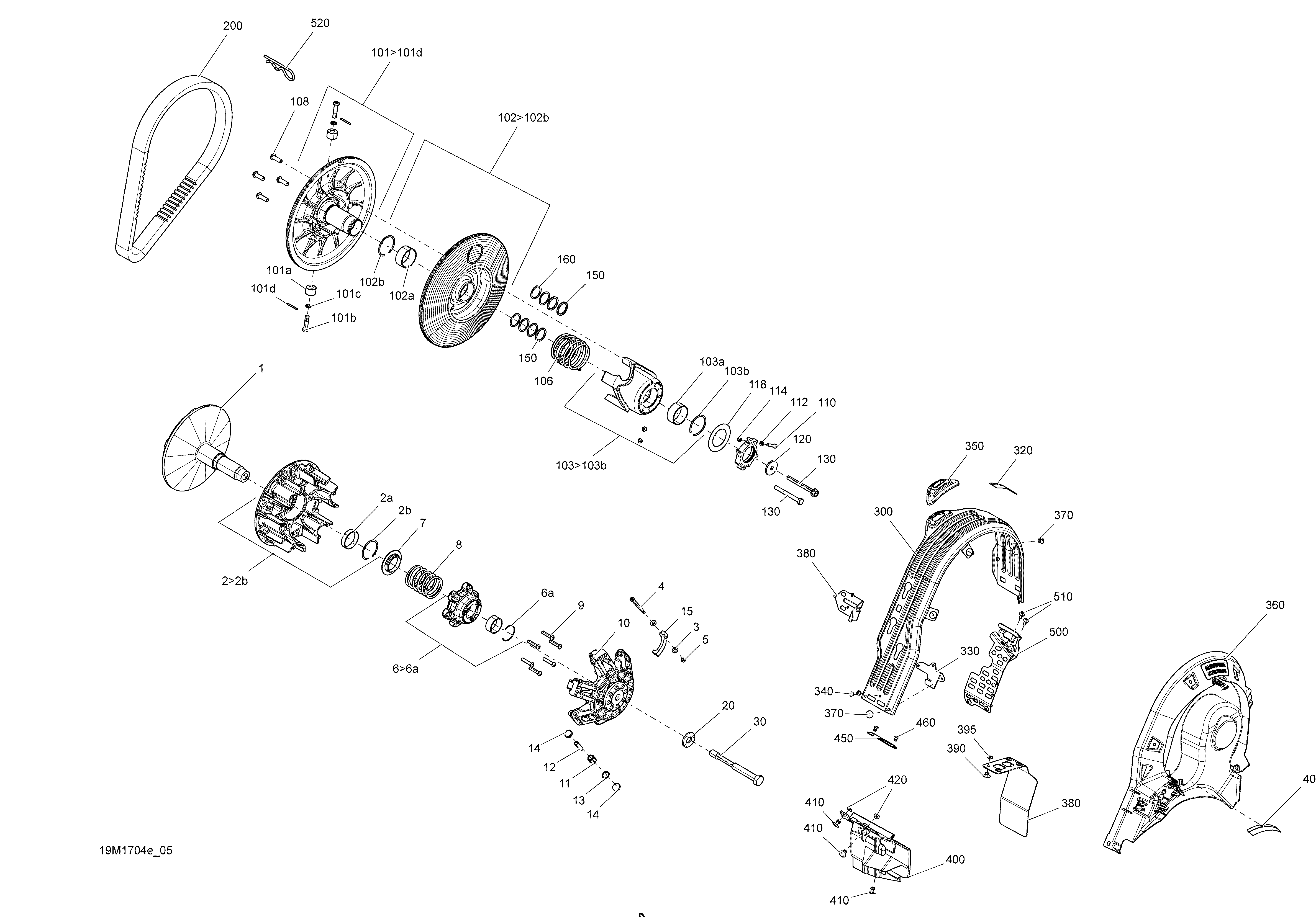

05- Pulley System - 600_900 ACE для BRP Ski-Doo MXZ - 4-STROKE - 2017
-
№АртикулНазвание
-
1417224091 Fixed Flange Ass'yFixed Flange Ass'y
-
2>2b417224044 Flange-Slid.Assy. Engine 900 ACE. Includes 2 to 2bFlange-Slid.Assy. Engine 900 ACE. Includes 2 to 2b
-
2>2b417224101 Sliding Flange Ass'y. Package Sport. Includes 2 to 2bSliding Flange Ass'y. Package Sport. Includes 2 to 2b
-
2a417222758 BushingBushing
-
2b293370037 CirclipCirclip
-
3417223660 Stopper Washer. Engine 900 ACEStopper Washer. Engine 900 ACE
-
3417223255 Thrust Washer. Package SportThrust Washer. Package Sport
-
4417223694 Ramp AxleRamp Axle
-
5232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
6>6a417223650 Spring Cover Ass'y. Engine 900 ACE. Includes 6 to 6aSpring Cover Ass'y. Engine 900 ACE. Includes 6 to 6a
-
6>6a417223907 Spring Cover Ass'y. Package Sport. Includes 6 to 6aSpring Cover Ass'y. Package Sport. Includes 6 to 6a
-
6a293370065 CirclipCirclip
-
7417223752 Seat SpringSeat Spring
-
8417224085 Clutch Spring. Engine 900 ACEClutch Spring. Engine 900 ACE
-
8417223747 Clutch Spring. Package SportClutch Spring. Package Sport
-
9250000580 Torx Screw M6 X 30Torx Screw M6 X 30
-
10417223865 Governor Cup Ass'yGovernor Cup Ass'y
-
11417224081 Roller. Engine 900 ACERoller. Engine 900 ACE
-
11417223767 Roller. Package SportRoller. Package Sport
-
12417223257 Roller AxleRoller Axle
-
13293300185 O-RingO-Ring
-
14417223919 Slider ShoeSlider Shoe
-
15417224103 Ramp 749. Engine 900 ACERamp 749. Engine 900 ACE
-
15417223508 Ramp 716 Ass. Package SportRamp 716 Ass. Package Sport
-
20250200144 Conical Spring Washer M14Conical Spring Washer M14
-
30417300432 Pulley Drive BoltPulley Drive Bolt
-
40516005503 Decal, EnglishDecal, English
-
101>101d417127351 Fixe Flange Ass'y. includes 101 to 102dFixe Flange Ass'y. includes 101 to 102d
-
101a417127016 RollerRoller
-
101b417127294 Pivot StudPivot Stud
-
101c250200009 Lock Washer 8 mmLock Washer 8 mm
-
101d250400063 Spring Pin M3 X 30Spring Pin M3 X 30
-
102>102b417127366 Slider Flange Ass'y. Includes 102 to 102bSlider Flange Ass'y. Includes 102 to 102b
-
102a417127318 BushingBushing
-
102b293370049 CirclipCirclip
-
103>103b417127391 Cam Ass'y. Package Sport. Includes 103 to 103bCam Ass'y. Package Sport. Includes 103 to 103b
-
103>103b417127474 Cam Ass'y. Engine 900 ACE. Includes 103 to 103bCam Ass'y. Engine 900 ACE. Includes 103 to 103b
-
103a417127318 BushingBushing
-
103b293370049 CirclipCirclip
-
106417127344 Release Spring. Package SportRelease Spring. Package Sport
-
106417127467 Release Spring. Engine 900 ACERelease Spring. Engine 900 ACE
-
108250000707 Hex. Button Head Screw M8 X 25Hex. Button Head Screw M8 X 25
-
110205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
112234051410 Flat Washer M5Flat Washer M5
-
114232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
118417127155 WasherWasher
-
120517302322 Strength WasherStrength Washer
-
130207287544 Hex. Cap Screw M8 X 75. Package SportHex. Cap Screw M8 X 75. Package Sport
-
130207588044 Hex. Cap Screw M8 X 80. Engine 900 ACEHex. Cap Screw M8 X 80. Engine 900 ACE
-
150417300252 Spacer. Engine 900 ACESpacer. Engine 900 ACE
-
160417300265 SpacerSpacer
-
200417300127 Drive Belt. Package SportDrive Belt. Package Sport
-
200417300383 Drive Belt. Engine 900 ACEDrive Belt. Engine 900 ACE
-
300417300382 Belt GuardBelt Guard
-
320516005509 Safety Belt Guard DecalSafety Belt Guard Decal
-
330417300423 Front BracketFront Bracket
-
340390909200 Avex RivetAvex Rivet
-
350417300381 GuideGuide
-
360417300440 CVT Air Duct PulleyCVT Air Duct Pulley
-
370293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
380417300445 StopperStopper
-
400417300430 Front SupportFront Support
-
410293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
420517225900 Flat WasherFlat Washer
-
450417300421 Reinforcement PlateReinforcement Plate
-
460390909100 Avex RivetAvex Rivet
-
500417300448 Belt Guard BracketBelt Guard Bracket
-
510250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
520114045200 Hair PinHair Pin
