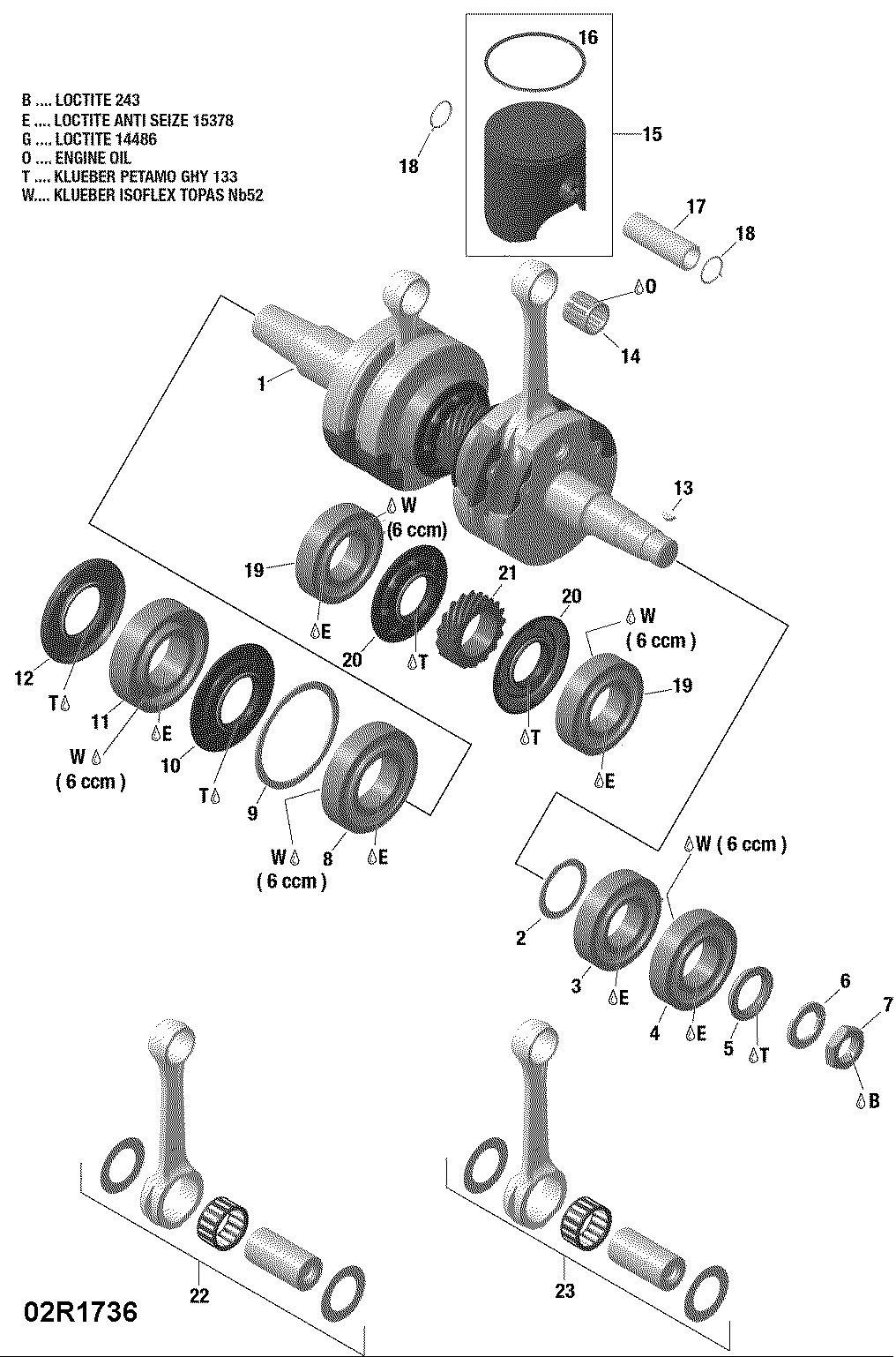

01- Crankshaft and Pistons для BRP Ski-Doo MXZ 600 RS - 2017
-
№АртикулНазвание
-
2420827767 ShimShim
-
3420832575 Ball BearingBall Bearing
-
4420832575 Ball BearingBall Bearing
-
5420931795 Oil SealOil Seal
-
6420945759 Lock Washer, 22 mmLock Washer, 22 mm
-
7420842239 Hex. Nut, M22 X 1.5Hex. Nut, M22 X 1.5
-
8420832600 Ball Bearing 6208Ball Bearing 6208
-
9420926190 WasherWasher
-
10420931910 Oil SealOil Seal
-
11420832603 Ball BearingBall Bearing
-
12420931284 Oil SealOil Seal
-
13420246015 Woodruff KeyWoodruff Key
-
14420832445 Needle BearingNeedle Bearing
-
15>16420893303 Piston Ass'y, 71.87 mmPiston Ass'y, 71.87 mm
-
16420815295 Semi-Trapez RingSemi-Trapez Ring
-
17420916413 Piston PinPiston Pin
-
18420845106 Piston CirclipPiston Circlip
-
19420832575 Ball BearingBall Bearing
-
20420931455 Oil SealOil Seal
-
21420834355 Central GearCentral Gear
-
22420891637 Rod Repair Kit PTORod Repair Kit PTO
-
23420891639 Rod Repair Kit MAGRod Repair Kit MAG
