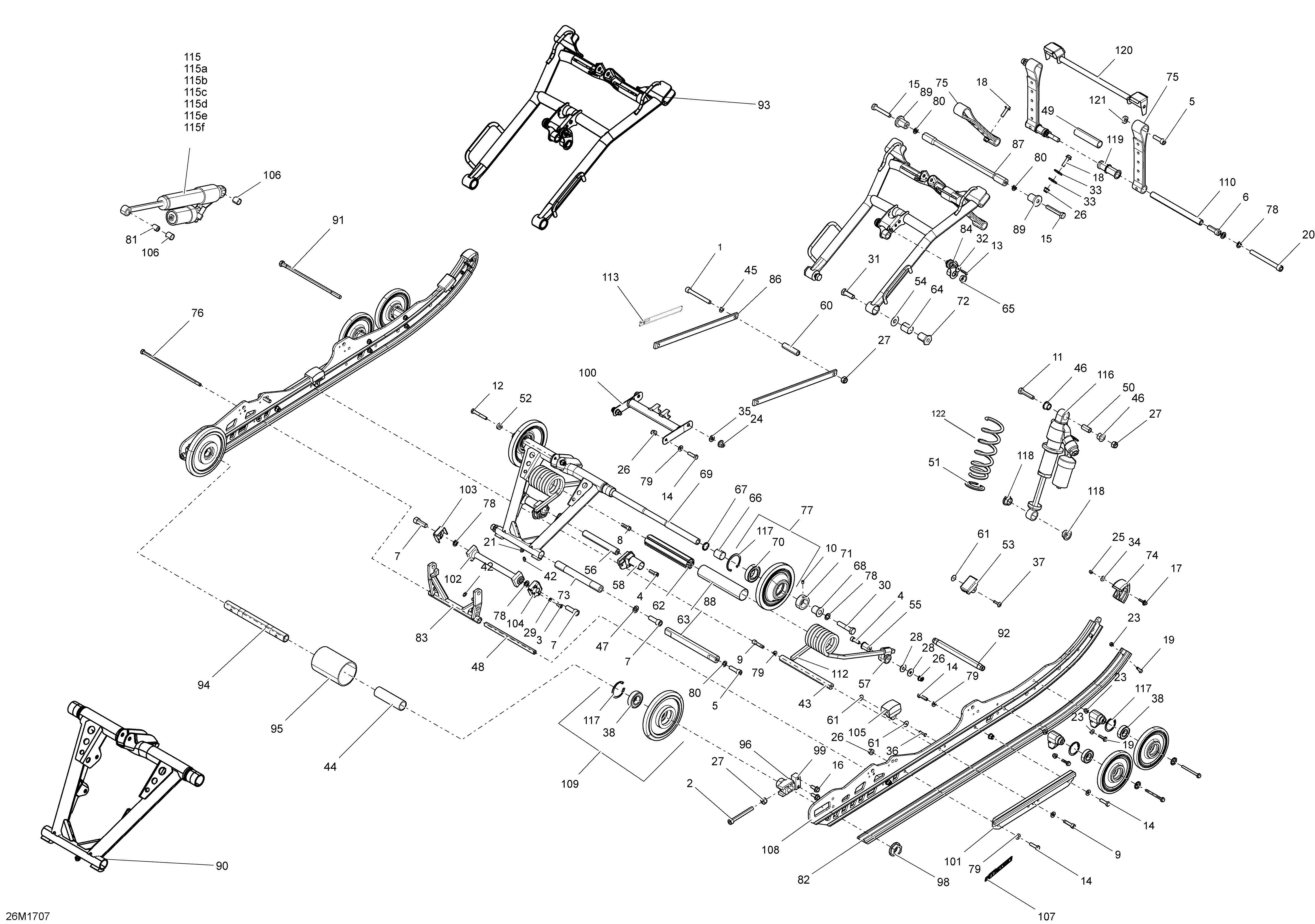

08- Rear Suspension для BRP Ski-Doo MXZ 600 RS - 2017
-
№АртикулНазвание
-
1205009044 Socket Screw M10 X 90Socket Screw M10 X 90
-
2205009087 Socket Head ScrewSocket Head Screw
-
3205061260 Socket Head Screw M6 X 12Socket Head Screw M6 X 12
-
4205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
5205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
6205523554 Socket Head Screw M12 X 35Socket Head Screw M12 X 35
-
7205523587 Socket Head Screw Scotch Grip Din.912Socket Head Screw Scotch Grip Din.912
-
8205582544 Socket Head Screw M8 X 25, Scotch GripSocket Head Screw M8 X 25, Scotch Grip
-
9205583544 Socket Head Screw M8 X 35, Scotch GripSocket Head Screw M8 X 35, Scotch Grip
-
10206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
11207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
12207085586 Hex. Screw M8 X 55Hex. Screw M8 X 55
-
13207152044 Hex. Screw M5 X 20Hex. Screw M5 X 20
-
14207183054 Hex. Cap Screw M8 X 30Hex. Cap Screw M8 X 30
-
15207206534 Hex. Screw M10 X 65, Scotch GripHex. Screw M10 X 65, Scotch Grip
-
16207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
17207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
18207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
19208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
20231022087 Socket Head Screw M12 X 120Socket Head Screw M12 X 120
-
21232061404 Hexagonal Nut M6Hexagonal Nut M6
-
23232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
24233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
25233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
26233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
28234082410 Flat Washer 8 mmFlat Washer 8 mm
-
29234161471 Lock Washer M6, BlackLock Washer M6, Black
-
30250000485 Hex. Cap Screw M12 X 60, Scotch GripHex. Cap Screw M12 X 60, Scotch Grip
-
31250000537 Hex. Cap Screw M12 X 35Hex. Cap Screw M12 X 35
-
32250200016 WasherWasher
-
33250200128 Flat Washer 8 mmFlat Washer 8 mm
-
34250200140 WasherWasher
-
35250200143 Flat WasherFlat Washer
-
36293150013 Pop Rivet 3/16''Pop Rivet 3/16''
-
37293150224 Rivet Pop 3/16Rivet Pop 3/16
-
38293350115 Ball BearingBall Bearing
-
42408200700 Grease FittingGrease Fitting
-
43503151600 AxleAxle
-
44503156000 Center SpacerCenter Spacer
-
45503175800 WasherWasher
-
46503189117 BushingBushing
-
47503189148 WasherWasher
-
48503189156 Pivot Arm AxlePivot Arm Axle
-
49503189265 SpacerSpacer
-
50503189282 BushingBushing
-
51503190271 Spring StopperSpring Stopper
-
52503190526 SpacerSpacer
-
53503190576 Rubber StopperRubber Stopper
-
54503190656 WasherWasher
-
55503190754 Retainer CushionRetainer Cushion
-
56503191178 Spring Cam AxeSpring Cam Axe
-
57503191183 Spring SupportSpring Support
-
58503191191 LH Spring CamLH Spring Cam
-
58503191190 RH Spring CamRH Spring Cam
-
60503191192 Bar AxleBar Axle
-
61503191273 WasherWasher
-
62503191344 Spring AxleSpring Axle
-
63503191345 Plastic BushingPlastic Bushing
-
64503191554 BushingBushing
-
65503191555 Swivel BushingSwivel Bushing
-
66503191773 BushingBushing
-
67503191774 WasherWasher
-
68503191775 BushingBushing
-
69503191776 Upper ShaftUpper Shaft
-
70503191778 Ball BearingBall Bearing
-
71503191782 Retaining RingRetaining Ring
-
72503191966 Lower AxleLower Axle
-
73503192095 Lower ShaftLower Shaft
-
74503192299 Runner ProtectorRunner Protector
-
75503192360 Stopper StrapStopper Strap
-
76503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
77503192483 Black Wheel Ass'y 155 mmBlack Wheel Ass'y 155 mm
-
78503192491 WasherWasher
-
81503192606 Rear Shock AxleRear Shock Axle
-
82503192618 Black Slider, 154''Black Slider, 154''
-
83503192701 Pivot ArmPivot Arm
-
84503192706 LH Rocker ArmLH Rocker Arm
-
84503192707 RH Rocker ArmRH Rocker Arm
-
86503192712 Tie RodTie Rod
-
87503192713 Slide BushingSlide Bushing
-
88503192715 Limit AxleLimit Axle
-
89503192721 BushingBushing
-
90503193126 Rear ArmRear Arm
-
91503193227 Bolt M10 X 251MMBolt M10 X 251MM
-
92503193435 Pivot AxlePivot Axle
-
93503193685 Front Arm Ass'yFront Arm Ass'y
-
94503193692 Rear AxleRear Axle
-
95503193693 BushingBushing
-
96503193694 SpacerSpacer
-
98503193695 NutNut
-
98503193696 NutNut
-
99503193697 TensionerTensioner
-
100503194129 ReinforcementReinforcement
-
101503194175 Rail ReinforcementRail Reinforcement
-
102503194161 Cam AxleCam Axle
-
103503194162 PlatePlate
-
104503194163 PlatePlate
-
105503194164 Stopper RubberStopper Rubber
-
106505072663 Leg CushionLeg Cushion
-
107516004755 Runner DecalRunner Decal
-
108503194424 Painted RunnerPainted Runner
-
109503194127 Wheel 165''Wheel 165''
-
110503194431 AxleAxle
-
112503194179 LH SpringLH Spring
-
112503194180 RH SpringRH Spring
-
113516005609 Shock Position DecalShock Position Decal
-
115503194348 Rear ShockRear Shock
-
115a415093807 O-RingO-Ring
-
115b415093806 Piston RingPiston Ring
-
115c505070398 Air ValveAir Valve
-
115d505070399 ScrewScrew
-
115e505070400 O-RingO-Ring
-
115f415093804 O-RingO-Ring
-
116503194347 Center ShockCenter Shock
-
117415129598 Retaining RingRetaining Ring
-
118503189271 BushingBushing
-
119503194432 AxleAxle
-
120503194427 AxleAxle
-
121503194430 Troucated WasherTroucated Washer
-
122503194450 Painted SpringPainted Spring
