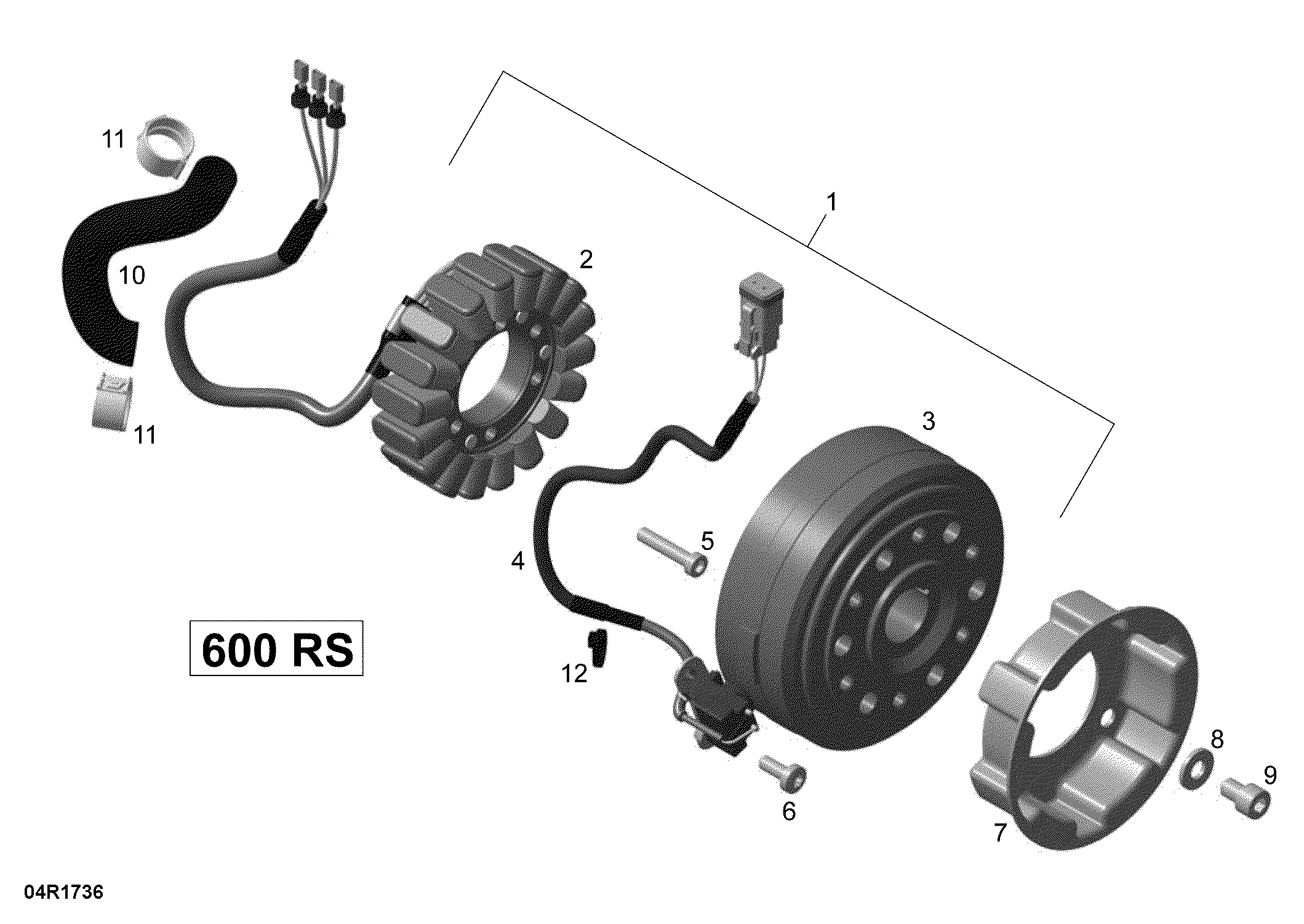

03- Magneto для BRP Ski-Doo MXZ 600 RS - 2017
-
№АртикулНазвание
-
2420893060 Stator PlateStator Plate
-
3420665727 FlywheelFlywheel
-
4410922951 Pick-UpPick-Up
-
5420840886 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
6420640324 Torx Screw M6 X 16Torx Screw M6 X 16
-
7420852590 Starting PulleyStarting Pulley
-
8420827405 Flat WasherFlat Washer
-
9420841520 Socket Head Screw M8 X 12Socket Head Screw M8 X 12
-
10420460871 TubeTube
-
11420960896 Conduit ClipConduit Clip
-
12420866714 Tie RapTie Rap
