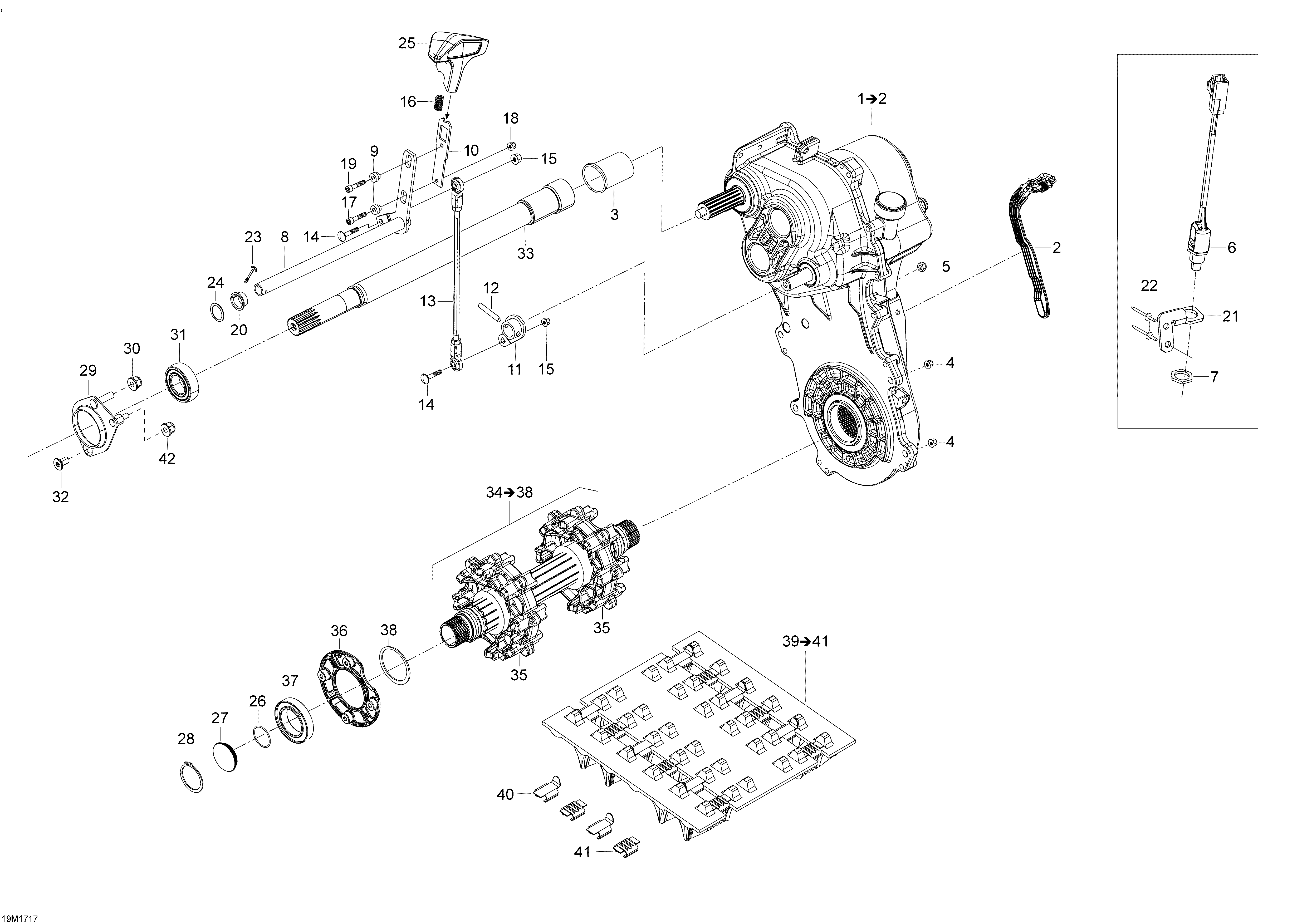

05- Drive System для BRP Ski-Doo SKANDIC - 2-STROKE - WT-SWT - 2017

№

Артикул

Название
1

619230077 Transmission Ass'y (Slow Ratio). Model WT Engine 600ETEC, WT 550F, SWT 550F. Includes 1 To 2

Transmission Ass'y (Slow Ratio). Model WT Engine 600ETEC, WT 550F, SWT 550F. Includes 1 To 2

743 340 ₽
1

619230078 Transmission Ass'y (Fast Ratio). Model SWT Engine 600ETEC. Includes 1 To 2

Transmission Ass'y (Fast Ratio). Model SWT Engine 600ETEC. Includes 1 To 2

743 340 ₽
2

504152896 Sensor

Sensor

8 740 ₽
3

504153054 Protective Rubber

Protective Rubber

5 740 ₽
4

233281414 Hex. Flanged Elastic Nut M8

Hex. Flanged Elastic Nut M8

490 ₽
5

232581414 Hex. Elastic Stop Nut M8

Hex. Elastic Stop Nut M8

210 ₽
6

515176472 Switch Ass'y

Switch Ass'y

23 840 ₽
7

250000373 Brass Nut

Brass Nut

2 440 ₽
8

504153288 Lever Shifter

Lever Shifter

11 770 ₽
9

504152787 Sleeve

Sleeve

9 280 ₽
10

504153287 Shifter Arm

Shifter Arm

16 700 ₽
11

504153280 Welded Lever. Model WT

Welded Lever. Model WT

6 700 ₽
11

504153278 Lever. Model SWT

Lever. Model SWT

26 010 ₽
12

41012 Pin

Pin

450 ₽
13

504153258 Shifter Rod

Shifter Rod

3 850 ₽
14

250000677 Carriage Bolt M6 X 20

Carriage Bolt M6 X 20

740 ₽
15

232561434 Elastic Stop Nut M6

Elastic Stop Nut M6

740 ₽
16

504152882 Spring

Spring

11 450 ₽
17

205052544 Socket Screw M5 X 25

Socket Screw M5 X 25

600 ₽
18

233251434 Flanged Elastic Nut M5

Flanged Elastic Nut M5

740 ₽
19

250000676 Forming Screw M5 x 16

Forming Screw M5 x 16

360 ₽
20

504152890 Bearing

Bearing

14 840 ₽
21

504152902 Sensor Bracket

Sensor Bracket

1 130 ₽
22

293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GAT

Rivet Hucklok 4,8 mm HKLP-R6-5GAT

1 040 ₽
23

250400035 Cotter Pin

Cotter Pin

200 ₽
24

503189273 Washer

Washer

1 730 ₽
25

504152837 Handle

Handle

24 150 ₽
26

293300122 O-Ring

O-Ring

680 ₽
27

504152619 Magnetic Cap

Magnetic Cap

8 050 ₽
28

504152572 Circlip

Circlip

3 130 ₽
29

504153187 Bearing Housing

Bearing Housing

7 420 ₽
30

233281414 Hex. Flanged Elastic Nut M8

Hex. Flanged Elastic Nut M8

490 ₽
31

293350074 Ball Bearing

Ball Bearing

10 120 ₽
32

235381646 Torx Screw M8 X 16, Scotch Grip

Torx Screw M8 X 16, Scotch Grip

900 ₽
33

504152963 Counter Shaft. Model WT

Counter Shaft. Model WT

59 540 ₽
33

504153070 Counter Shaft. Model SWT

Counter Shaft. Model SWT

80 150 ₽
34

504153583 Drive Axle Ass'y. Model WT, Engine 550F. Includes 34 To 38

Drive Axle Ass'y. Model WT, Engine 550F. Includes 34 To 38

191 800 ₽
34

504153584 Drive Axle Ass'y. Model WT, Engine 600HO E-TEC. Includes 34 To 38

Drive Axle Ass'y. Model WT, Engine 600HO E-TEC. Includes 34 To 38

58 650 ₽
34

504153585 Drive Axle Ass'y. Model SWT. Includes 34 To 38

Drive Axle Ass'y. Model SWT. Includes 34 To 38

87 680 ₽
35

504153137 Sprocket, 8 Teeth. Model SWT

Sprocket, 8 Teeth. Model SWT

2 680 ₽
36

504152949 Housing Bearing

Housing Bearing

1 330 ₽
37

293350059 Ball Bearing

Ball Bearing

21 110 ₽
38

504153207 Shim

Shim

3 180 ₽
39

605613004 Track 500x39xx (38). Model WT. Includes 39 To 41

Track 500x39xx (38). Model WT. Includes 39 To 41

127 580 ₽
39

504153264 Track Ass'y. Model SWT. Includes 39 To 41

Track Ass'y. Model SWT. Includes 39 To 41

127 190 ₽
40

415129528 Track Guide

Track Guide

1 040 ₽
41

504152651 Cleat

Cleat

2 770 ₽
42

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6

490 ₽
