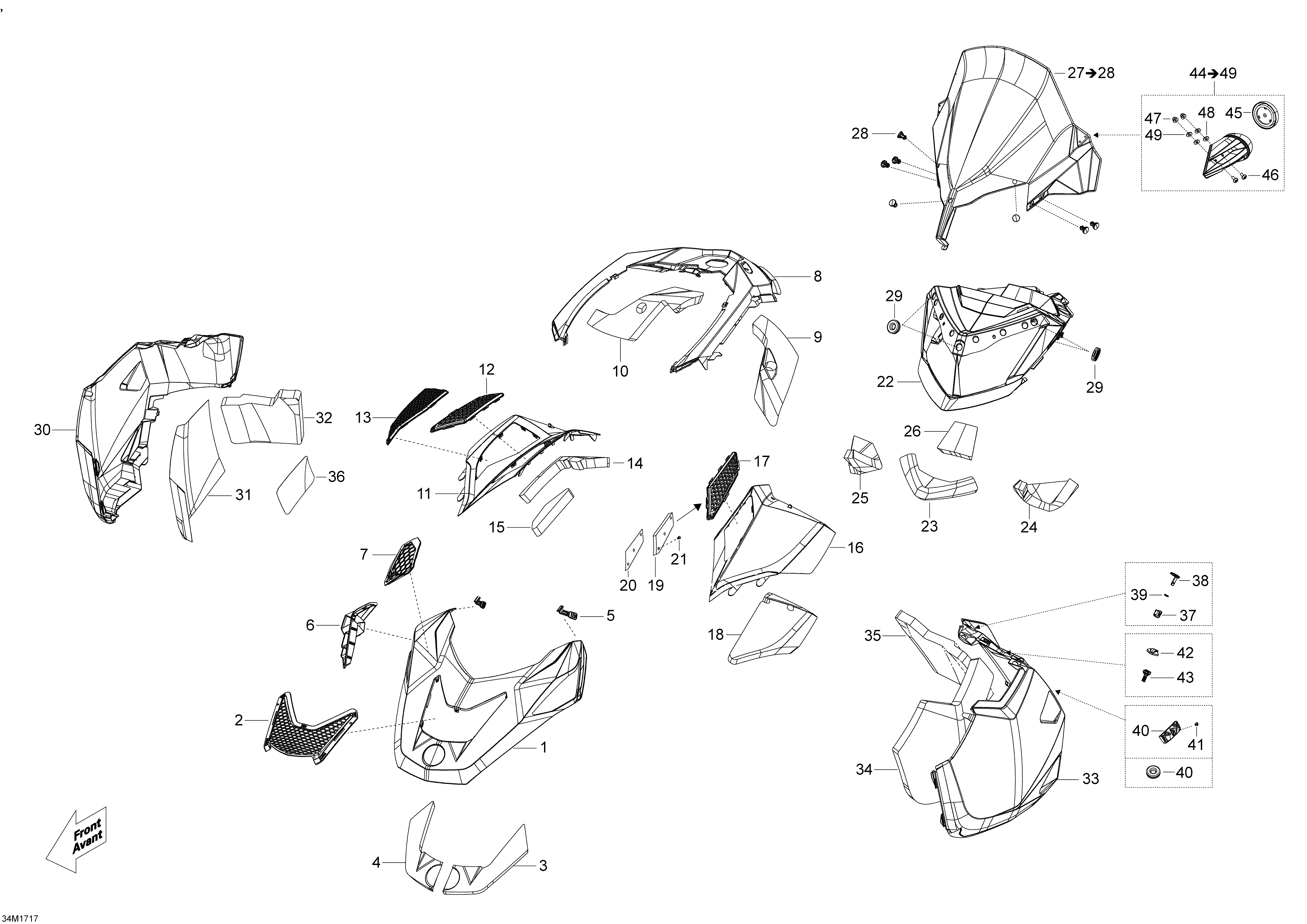

09- Hood для BRP Ski-Doo SKANDIC - 2-STROKE - WT-SWT - 2017
-
№АртикулНазвание
-
1517306012 Gray Hood. Model WT, Engine 550FGray Hood. Model WT, Engine 550F
-
1517305521 Yellow Hood. Model SWT, Engine 550FYellow Hood. Model SWT, Engine 550F
-
1517305440 Gray Hood. Model WT/SWT, Engine 600HO E-TECGray Hood. Model WT/SWT, Engine 600HO E-TEC
-
2517304843 Hood GrillHood Grill
-
3517304330 Insulator LHInsulator LH
-
4517304214 Insulator RHInsulator RH
-
5517304289 Latch PannelLatch Pannel
-
6517304855 Intake Grill. Engine 550FIntake Grill. Engine 550F
-
6517304155 Scoop Grill. Engine 600 E-TECScoop Grill. Engine 600 E-TEC
-
7517304584 Intake Grill. Engine 550FIntake Grill. Engine 550F
-
8517304820 Black ConsoleBlack Console
-
9517305644 InsulatorInsulator
-
10517304318 InsulatorInsulator
-
11517305446 Gray RH Side Access Panel. Model WT, Engine 550F/600HO E-TEC and SWT, Engine 600HO E-TECGray RH Side Access Panel. Model WT, Engine 550F/600HO E-TEC and SWT, Engine 600HO E-TEC
-
11517305525 Yellow Side Access Panel RH. Model SWT, Engine 550FYellow Side Access Panel RH. Model SWT, Engine 550F
-
12517304015 RH Access Panel GrillRH Access Panel Grill
-
13517304016 RH Lower Acces GrillRH Lower Acces Grill
-
14517304311 InsulatorInsulator
-
15517305987 InsulatorInsulator
-
16517305450 Gray LH Side Access Panel. Model WT, Engine 550F/600HO E-TEC and SWT, Engine 600HO E-TECGray LH Side Access Panel. Model WT, Engine 550F/600HO E-TEC and SWT, Engine 600HO E-TEC
-
16517305527 Yellow Side Access Panel LH. Model SWT, Engine 550FYellow Side Access Panel LH. Model SWT, Engine 550F
-
17517303893 LH Access Panel Grill. Engine 600 E-TECLH Access Panel Grill. Engine 600 E-TEC
-
18517304313 InsulatorInsulator
-
19517305311 Insulator. Engine 600 E-TECInsulator. Engine 600 E-TEC
-
20502007312 Grill plate. Engine 600 E-TECGrill plate. Engine 600 E-TEC
-
21414644300 Dart. Engine 600 E-TECDart. Engine 600 E-TEC
-
22517304002 Gauge Support. Engine 550FGauge Support. Engine 550F
-
22517304272 Indicator Support. Engine 600 E-TECIndicator Support. Engine 600 E-TEC
-
23517304314 InsulatorInsulator
-
24517304315 InsulatorInsulator
-
25517304316 InsulatorInsulator
-
26517304319 InsulatorInsulator
-
27860201000 Windshield Ass'y. Includes 27 To 28Windshield Ass'y. Includes 27 To 28
-
28517304744 ButtonButton
-
29517303756 GrommetGrommet
-
30517304328 Black Side Panel-RhBlack Side Panel-Rh
-
31517304709 Foam RightFoam Right
-
32517304310 RH Rear FoamRH Rear Foam
-
33517304329 Black Side Panel-LHBlack Side Panel-LH
-
34517304707 Foam LHFoam LH
-
35517304309 LH Rear FoamLH Rear Foam
-
36508000831 Heat Shield. Model SWT, Engine 550FHeat Shield. Model SWT, Engine 550F
-
37517304297 Handle Fastener Quarter-TurnHandle Fastener Quarter-Turn
-
38517304296 Quarter-Turn HandleQuarter-Turn Handle
-
39517304538 Locking PlateLocking Plate
-
40517304497 Side Panel Support. Model WTSide Panel Support. Model WT
-
40517303756 Grommet. Model SWTGrommet. Model SWT
-
41293150211 Rivet. Model WTRivet. Model WT
-
42517304075 End Piece LatchEnd Piece Latch
-
43517306057 Latch-PanelLatch-Panel
-
44517305787 RH/LH Mirror Ass'y. Model WT, Engine 550F/600HO E-TEC and SWT, Engine 600HO E-TEC. Includes 44 To 49RH/LH Mirror Ass'y. Model WT, Engine 550F/600HO E-TEC and SWT, Engine 600HO E-TEC. Includes 44 To 49
-
46250000721 Torx ScrewTorx Screw
-
47232361493 Domed Nut M6Domed Nut M6
-
48250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
4920117 WasherWasher
