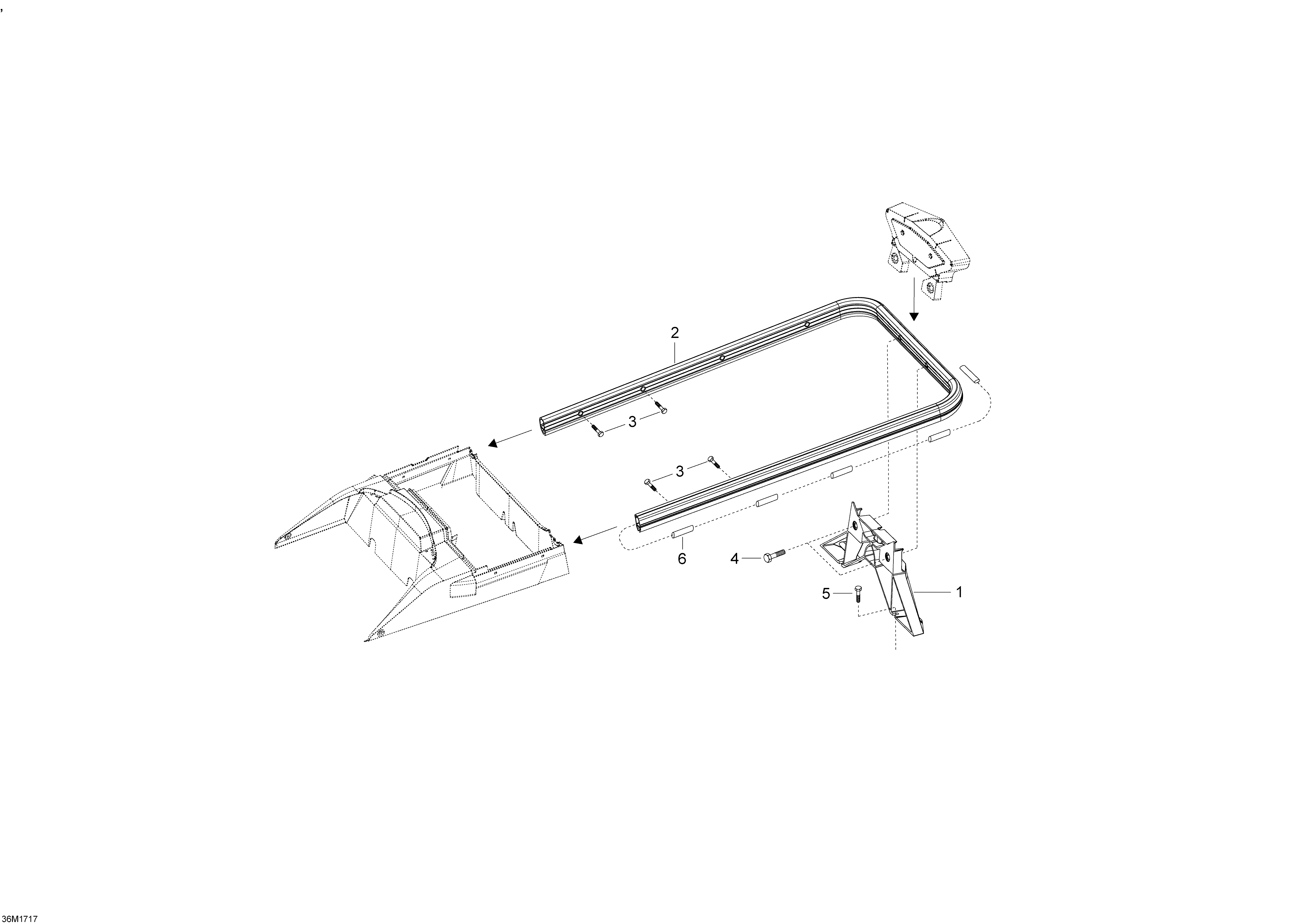

09- Luggage Rack для BRP Ski-Doo SKANDIC - 2-STROKE - WT-SWT - 2017
-
№АртикулНазвание
-
1511000559 Rear Light SupportRear Light Support
-
2511000563 Black Rear Bumper. Model WTBlack Rear Bumper. Model WT
-
2511000864 Rear Bumper. Model SWTRear Bumper. Model SWT
-
3207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
4207663054 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
5207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
6511000657 Support HoseSupport Hose
