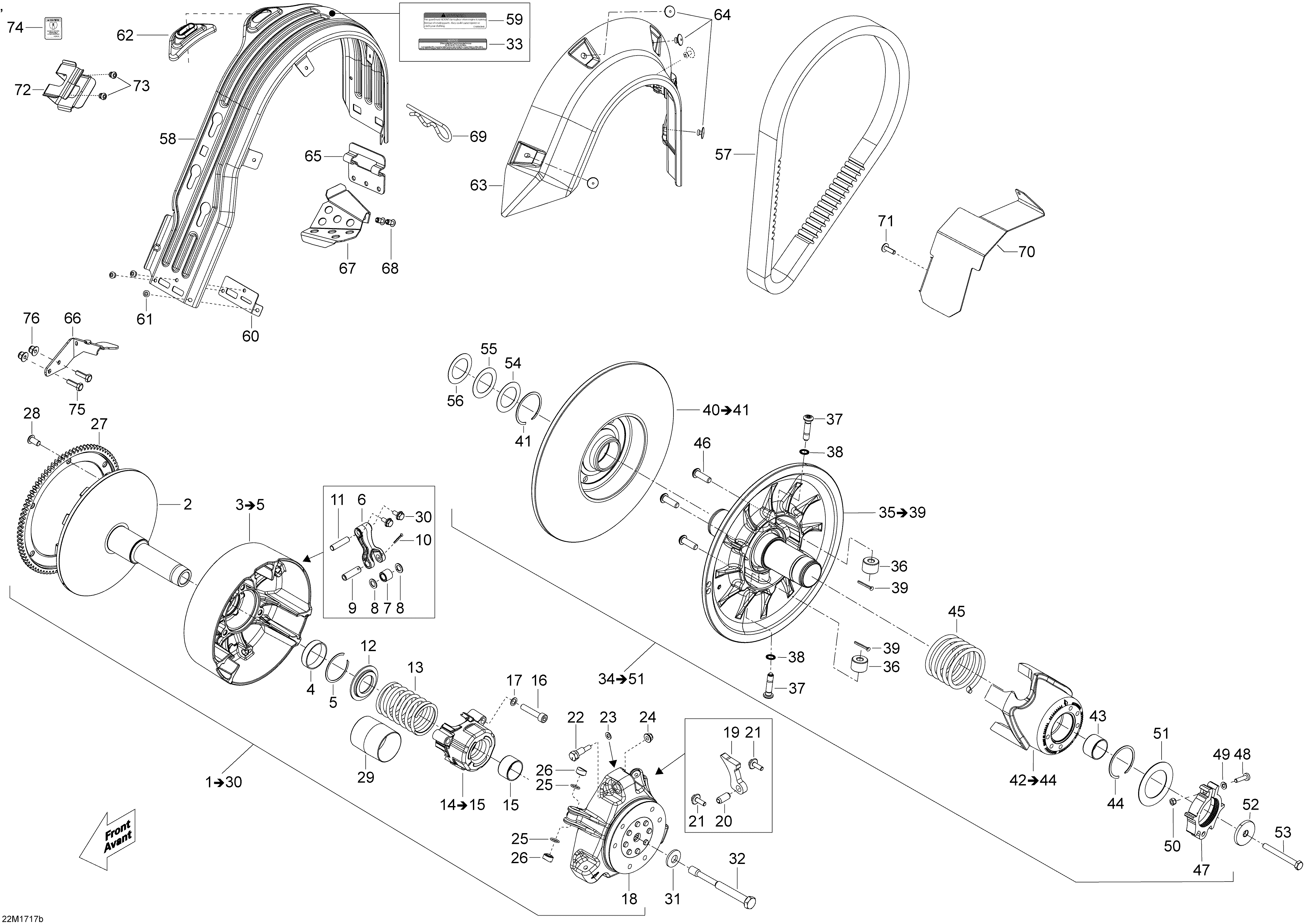

05- Pulley System - 600HO E-TEC для BRP Ski-Doo SKANDIC - 2-STROKE - WT-SWT - 2017
-
№АртикулНазвание
-
2417222937 Fixed Flange Ass'yFixed Flange Ass'y
-
3417222181 Sliding Flange Ass'y. Includes 3 To 5Sliding Flange Ass'y. Includes 3 To 5
-
4417222758 BushingBushing
-
5293370037 CirclipCirclip
-
6417222671 LeverLever
-
7417222947 RollerRoller
-
8417004302 Stopper WasherStopper Washer
-
9417222594 PinPin
-
10250400060 Cotter PinCotter Pin
-
11417223164 Lever AxleLever Axle
-
12417222312 Spring SeatSpring Seat
-
13414993000 Tra SpringTra Spring
-
14417007500 Spring Cover Ass'y. Includes 14 To 15Spring Cover Ass'y. Includes 14 To 15
-
15417009204 BushingBushing
-
16205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
17250200009 Lock Washer 8 mmLock Washer 8 mm
-
18417223669 Governor Cup Ass'yGovernor Cup Ass'y
-
19417222444 Ramp 600Ramp 600
-
20250400050 Spring Pin M10 X 22Spring Pin M10 X 22
-
21250000418 Flanged Hex. Screw M6 X 18, Scotch GripFlanged Hex. Screw M6 X 18, Scotch Grip
-
22417223501 Calibration ScrewCalibration Screw
-
23417005600 WasherWasher
-
24233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
25732401030 O-RingO-Ring
-
26417223271 Slider ShoeSlider Shoe
-
27417223738 Ring GearRing Gear
-
28250000533 Hex. Flange Screw M8 X 16Hex. Flange Screw M8 X 16
-
29417009205 GuardGuard
-
30250000412 Flanged Hex. Screw M6 X 12, Scotch GripFlanged Hex. Screw M6 X 12, Scotch Grip
-
31250200144 Conical Spring Washer M14Conical Spring Washer M14
-
32417120000 Drive Pulley BoltDrive Pulley Bolt
-
33516005503 Decal, EnglishDecal, English
-
35417127466 Fixed Flange Ass'y. Includes 35 To 39Fixed Flange Ass'y. Includes 35 To 39
-
36417127189 RollerRoller
-
37417127294 Pivot StudPivot Stud
-
38250200009 Lock Washer 8 mmLock Washer 8 mm
-
39250400063 Spring Pin M3 X 30Spring Pin M3 X 30
-
40417127366 Slider Flange Ass'y. Includes 40 To 41Slider Flange Ass'y. Includes 40 To 41
-
41293370049 CirclipCirclip
-
42417127459 Cam Ass'y. Includes 42 To 44Cam Ass'y. Includes 42 To 44
-
43417127318 BushingBushing
-
44293370049 CirclipCirclip
-
45417127243 Spring, WhiteSpring, White
-
46250000757 Screw-Torx Button Head M8 X 25 S.GrScrew-Torx Button Head M8 X 25 S.Gr
-
47415129604 Calibration Ass'yCalibration Ass'y
-
48205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
49234051410 Flat Washer M5Flat Washer M5
-
50232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
51417127155 WasherWasher
-
52517302322 Strength WasherStrength Washer
-
53207287544 Hex. Cap Screw M8 X 75Hex. Cap Screw M8 X 75
-
54417300252 Spacer. (Adjustment Part, Use If Needed)Spacer. (Adjustment Part, Use If Needed)
-
55417300265 Spacer. (Adjustment Part, Use If Needed)Spacer. (Adjustment Part, Use If Needed)
-
56504112000 Shim. (Adjustment Part, Use If Needed)Shim. (Adjustment Part, Use If Needed)
-
57417300383 Drive BeltDrive Belt
-
58417300357 Belt GuardBelt Guard
-
59516006900 Security Label, Belt GuardSecurity Label, Belt Guard
-
60417300380 ReinforcementReinforcement
-
61390909200 Avex RivetAvex Rivet
-
62417300381 GuideGuide
-
63417300356 Side ProtectorSide Protector
-
64293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
65417300363 Belt Guard Bracket. Model WTBelt Guard Bracket. Model WT
-
65417300413 Belt Guard Bracket. Model SWTBelt Guard Bracket. Model SWT
-
66417300451 Belt Guard BracketBelt Guard Bracket
-
67518325626 Brake Hose Cover. Model WTBrake Hose Cover. Model WT
-
67518327035 Brake Hose Cover. Model SWTBrake Hose Cover. Model SWT
-
68293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
69114045200 Hair PinHair Pin
-
70417300468 Air DuctAir Duct
-
71250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
72517281905 BracketBracket
-
73390909100 Avex RivetAvex Rivet
-
74516007493 Belt Gard DecalBelt Gard Decal
-
75207162044 Hex. Screw M6 X 20Hex. Screw M6 X 20
-
76233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
