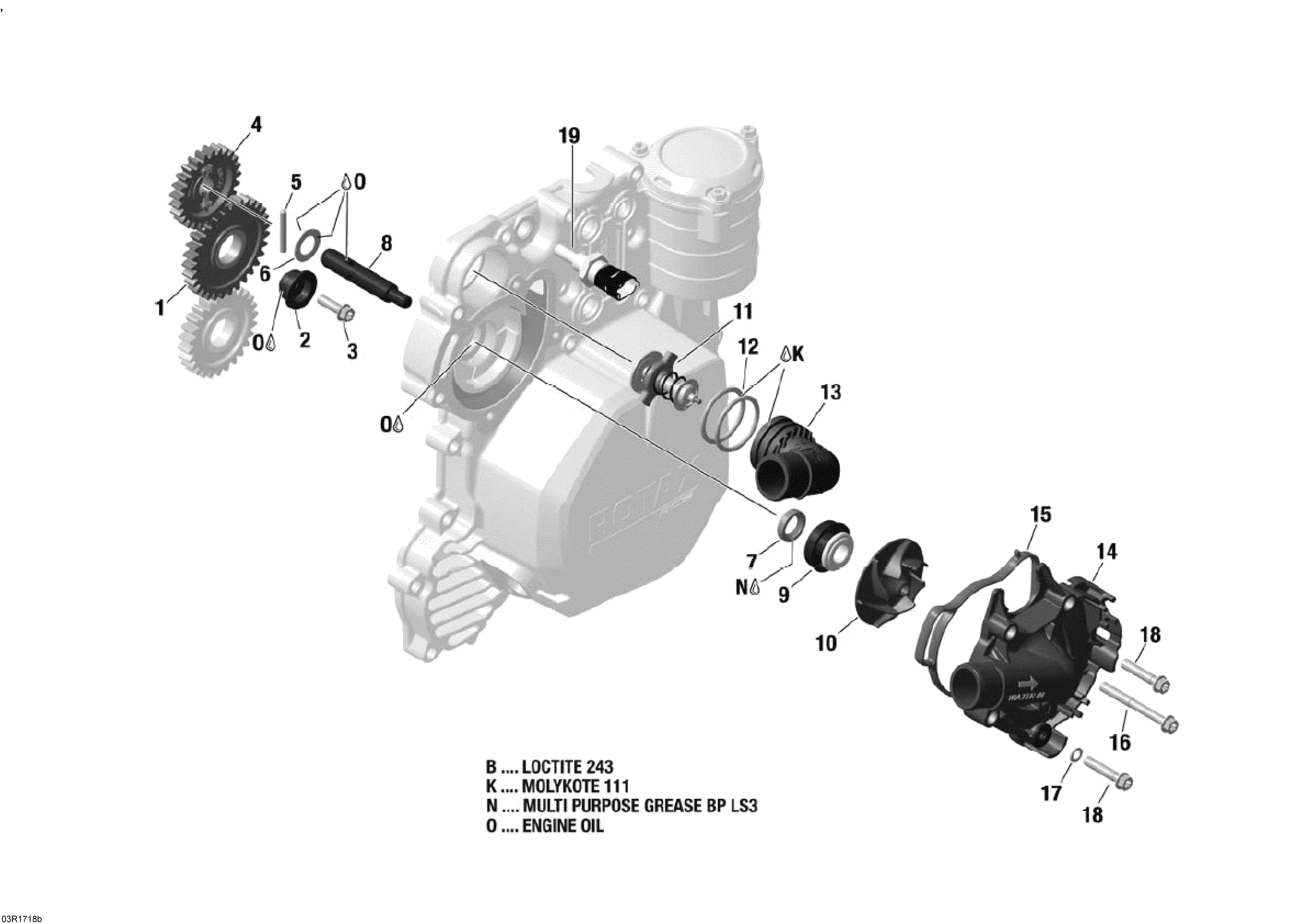

01- Engine Cooling - 900 ACE для BRP Ski-Doo SKANDIC - 4-STROKE - WT-SWT - 2017
-
№АртикулНазвание
-
1420835059 Idle Gear, 31 TeethIdle Gear, 31 Teeth
-
2420947394 SpacerSpacer
-
3420440207 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
4420835230 Water Pump GearWater Pump Gear
-
5420232431 Needle PinNeedle Pin
-
6420827261 Thrust WasherThrust Washer
-
7420931802 Oil Seal. Included In Gasket KitOil Seal. Included In Gasket Kit
-
8420820150 Waterpump ShaftWaterpump Shaft
-
9420850946 Seal. Included In Gasket KitSeal. Included In Gasket Kit
-
10420222880 Water ImpellerWater Impeller
-
11420822650 ThermostatThermostat
-
12420950893 O-Ring. Included In Gasket KitO-Ring. Included In Gasket Kit
-
13420922150 Thermostat CoverThermostat Cover
-
14420922293 Water Pump Housing. Includes 14 To 15Water Pump Housing. Includes 14 To 15
-
15420431682 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
16420440702 Flanged Torx Screw M6 X 55Flanged Torx Screw M6 X 55
-
17420230415 Seal Washer. Included In Gasket KitSeal Washer. Included In Gasket Kit
-
18420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
19278002895 Temperature SensorTemperature Sensor
