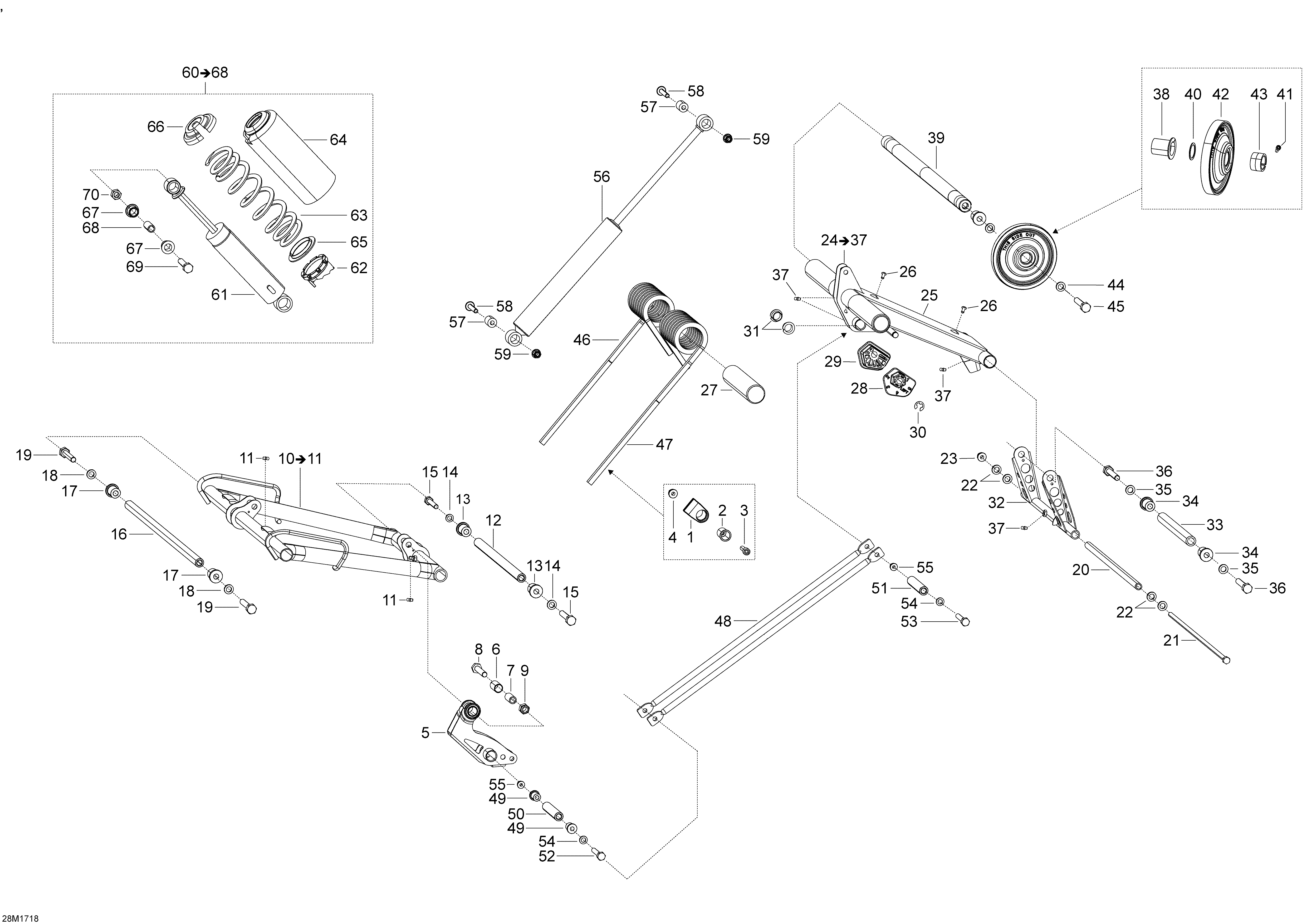

08- Rear Suspension - B для BRP Ski-Doo SKANDIC - 4-STROKE - WT-SWT - 2017
-
№АртикулНазвание
-
1503191183 Spring SupportSpring Support
-
2503190754 Retainer CushionRetainer Cushion
-
3205082544 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
4233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
5503192211 RockerRocker
-
6503193037 BushingBushing
-
7503189282 BushingBushing
-
8207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
9233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
10503193274 Front arm assy. Model WT. Includes 10 To 11Front arm assy. Model WT. Includes 10 To 11
-
10503193275 Front Arm Ass'y. Model SWT. Includes 10 To 11Front Arm Ass'y. Model SWT. Includes 10 To 11
-
11408200700 Grease FittingGrease Fitting
-
12503191390 Lower ShaftLower Shaft
-
13503189324 BushingBushing
-
14503192496 WasherWasher
-
15250000605 Hex. ScrewS.GRIP M10 X 55Hex. ScrewS.GRIP M10 X 55
-
16503191391 Upper Shaft. Model WTUpper Shaft. Model WT
-
16503191392 Upper Shaft. Model SWTUpper Shaft. Model SWT
-
17503189324 BushingBushing
-
18503189564 WasherWasher
-
19250000605 Hex. ScrewS.GRIP M10 X 55Hex. ScrewS.GRIP M10 X 55
-
20503191396 Axle PivotAxle Pivot
-
21503191397 Bolt 369mmBolt 369mm
-
22503189157 WasherWasher
-
23233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
24503191709 Rear Arm Ass'y. Includes 24 To 37Rear Arm Ass'y. Includes 24 To 37
-
25503191398 Rear ArmRear Arm
-
26414644300 DartDart
-
28503191565 LH Cam AdjusterLH Cam Adjuster
-
29503191566 RH Cam AdjusterRH Cam Adjuster
-
30293370013 E-CirclipE-Circlip
-
31503191555 Swivel BushingSwivel Bushing
-
32503191393 Welded Arm PivotWelded Arm Pivot
-
33503192330 Lower ShaftLower Shaft
-
34503191640 CushionCushion
-
35503189148 WasherWasher
-
36205523554 Socket Head Screw M12 X 35Socket Head Screw M12 X 35
-
37408200700 Grease FittingGrease Fitting
-
38503191451 CushionCushion
-
39503191405 Upper Shaft. Model WTUpper Shaft. Model WT
-
39503191406 Upper Shaft. Model SWTUpper Shaft. Model SWT
-
40503190328 WasherWasher
-
41206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
42503190803 Wheel 165Wheel 165
-
43503194366 Retaining Ring. Model WTRetaining Ring. Model WT
-
43503194674 Retaining Ring. Model SWTRetaining Ring. Model SWT
-
44503192491 WasherWasher
-
45250000484 Socket Screw M12 X 35Socket Screw M12 X 35
-
46503192377 Black RH Square Spring. Model WTBlack RH Square Spring. Model WT
-
46503192910 Painted Square Spring, RH. Model SWTPainted Square Spring, RH. Model SWT
-
47503192378 Black LH Square Spring. Model WTBlack LH Square Spring. Model WT
-
47503192911 Painted Square Spring, LH. Model SWTPainted Square Spring, LH. Model SWT
-
48503191765 Link RodLink Rod
-
49503191555 Swivel BushingSwivel Bushing
-
50503190643 Axle Bar (Long)Axle Bar (Long)
-
51503190643 Axle Bar (Long)Axle Bar (Long)
-
52207089044 Hex. Screw M8 X 90Hex. Screw M8 X 90
-
53207089044 Hex. Screw M8 X 90Hex. Screw M8 X 90
-
54503189157 WasherWasher
-
55233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
56503193520 Rear ShockRear Shock
-
57414936000 BushingBushing
-
58207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
59233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
61503192266 Center ShockCenter Shock
-
62505073625 Adjustment CamAdjustment Cam
-
63503191880 Black SpringBlack Spring
-
64503193663 ProtectorProtector
-
65503191872 Spring GuideSpring Guide
-
66706200881 Spring StopperSpring Stopper
-
67503189117 BushingBushing
-
68503189282 BushingBushing
-
69207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
70233601416 Elastic Locking Nut M10Elastic Locking Nut M10
