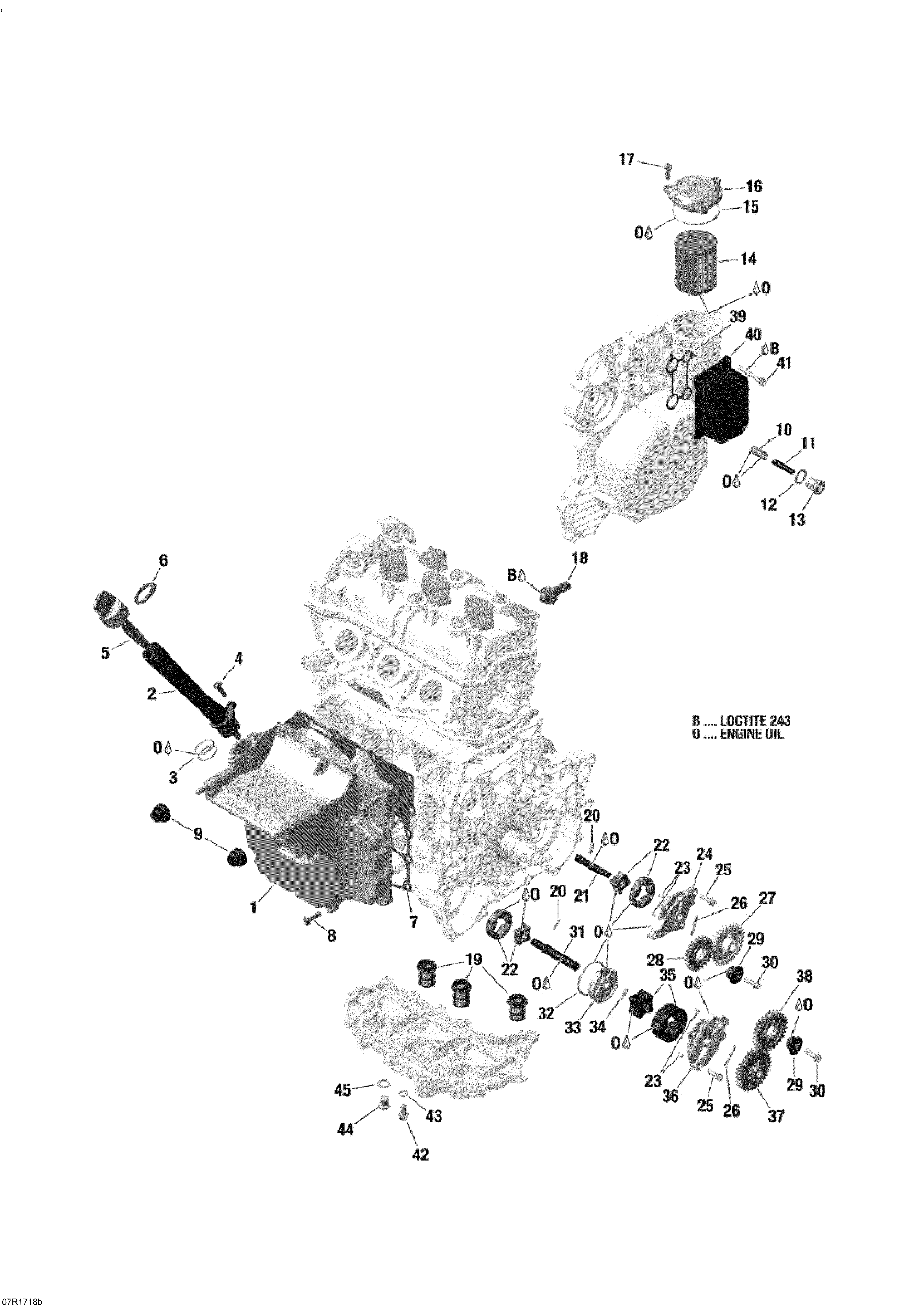

01- Engine Lubrication - 900 ACE для BRP Ski-Doo SKANDIC - 4-STROKE - WT-SWT - 2017
-
№АртикулНазвание
-
1420656705 Oil Sump CoverOil Sump Cover
-
2420656900 Oil Filler TubeOil Filler Tube
-
3420430440 O-Ring. Included In Gasket KitO-Ring. Included In Gasket Kit
-
4420441386 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
5420856667 Oil Lever Tube. Includes 5 To 6Oil Lever Tube. Includes 5 To 6
-
6420431790 Gasket Ring. Included In Gasket KitGasket Ring. Included In Gasket Kit
-
7420431840 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
8420841549 Flanged Torx Screw M6 X 25. RETRY TORQUE 11NM +/- 12%Flanged Torx Screw M6 X 25. RETRY TORQUE 11NM +/- 12%
-
9420860150 Rubber GrommetRubber Grommet
-
10420256518 Pressure Regulating PistonPressure Regulating Piston
-
11420239445 SpringSpring
-
12420430622 O-Ring. Included In Gasket KitO-Ring. Included In Gasket Kit
-
13420441372 Plug ScrewPlug Screw
-
14420956124 Oil FilterOil Filter
-
15420650500 O-Ring. Included In Gasket KitO-Ring. Included In Gasket Kit
-
16420612132 Oil Filter CoverOil Filter Cover
-
17420440207 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
18420256915 Oil Pressure SwitchOil Pressure Switch
-
19420656680 Oil SieveOil Sieve
-
20420232731 Needle PinNeedle Pin
-
21420820120 Oil Pump ShaftOil Pump Shaft
-
22420256348 Oil Pump RotorOil Pump Rotor
-
23420929075 Needle PinNeedle Pin
-
24420911080 Oil Pump CoverOil Pump Cover
-
25420440207 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
26420232431 Needle PinNeedle Pin
-
27420834882 Oil Pump Gear, 29 TeethOil Pump Gear, 29 Teeth
-
28420835054 Idle Gear, 22 TeethIdle Gear, 22 Teeth
-
29420947394 SpacerSpacer
-
30420440207 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
31420837916 Oil Pump ShaftOil Pump Shaft
-
32420631830 O-Ring. Included In Gasket KitO-Ring. Included In Gasket Kit
-
33420611950 Oil Pump CoverOil Pump Cover
-
34420632221 Needle PinNeedle Pin
-
35420256836 Oil Pump RotorOil Pump Rotor
-
36420611980 Oil Pump CoverOil Pump Cover
-
37420834887 Oil Pump Gear, 28 TeethOil Pump Gear, 28 Teeth
-
38420835321 Idle Gear, 26 TeethIdle Gear, 26 Teeth
-
39420431870 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
40420656698 Oil Water Heat ExchangerOil Water Heat Exchanger
-
41420440324 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
42420440852 Flanged Torx Screw M8 X 16Flanged Torx Screw M8 X 16
-
43420950141 Sealing Ring. Included In Gasket KitSealing Ring. Included In Gasket Kit
-
44420241701 Plug Screw M12 x 1,5Plug Screw M12 x 1,5
-
45420250640 Copper Washer. Included In Gasket KitCopper Washer. Included In Gasket Kit
