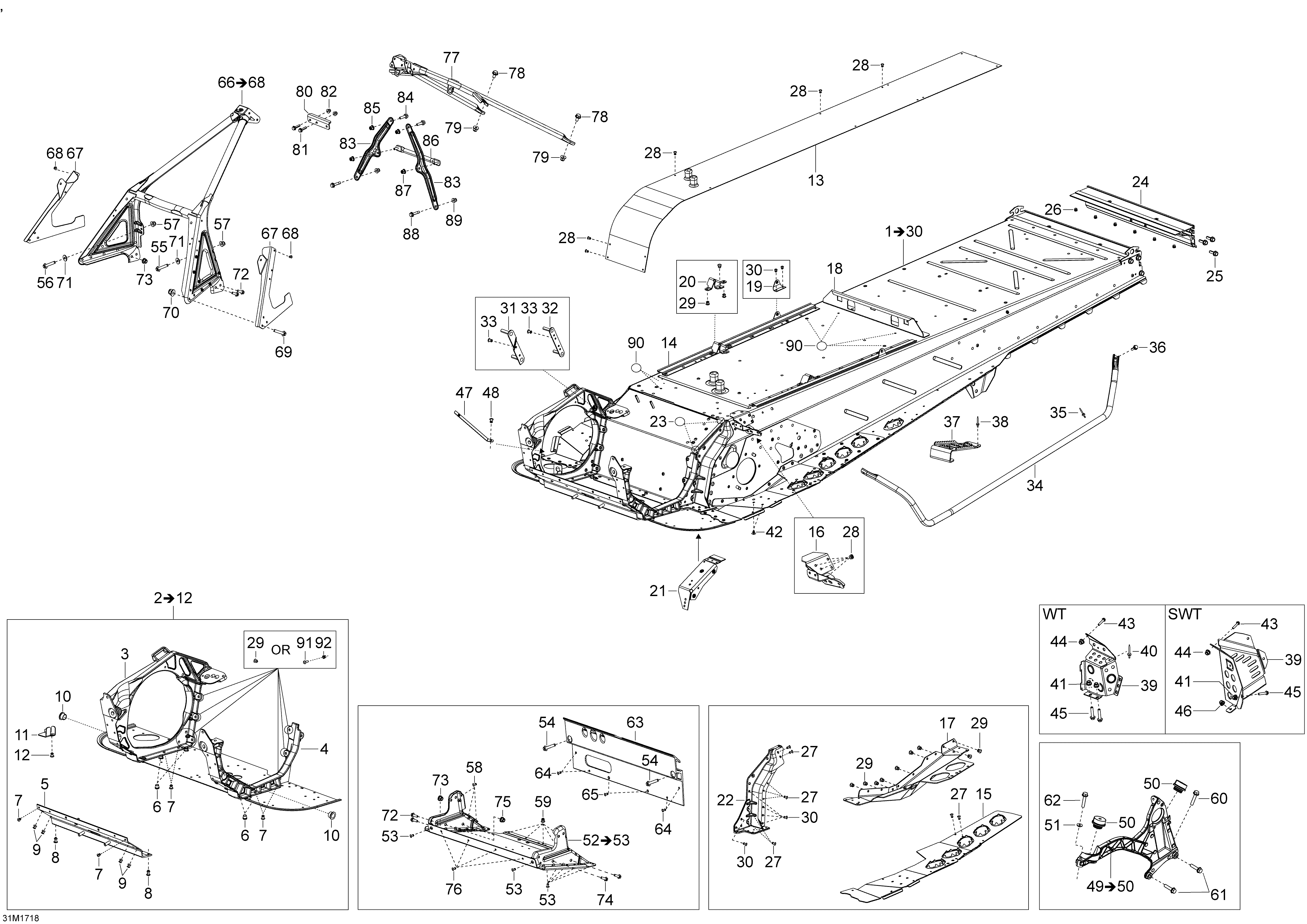

09- Frame для BRP Ski-Doo SKANDIC - 4-STROKE - WT-SWT - 2017

№

Артикул

Название
1

518329392 Black - Frame. Model WT. Includes 1 To 30

Black - Frame. Model WT. Includes 1 To 30

362 830 ₽
1

518329431 Black - Frame. Model SWT. Includes 1 To 30

Black - Frame. Model SWT. Includes 1 To 30

351 790 ₽
2

518328815 Module E. Includes 2 To 12

Module E. Includes 2 To 12

298 200 ₽
3

518326328 RH Side Member

RH Side Member

93 100 ₽
4

518326330 LH Side Member

LH Side Member

89 600 ₽
5

518326198 Front Member

Front Member

4 940 ₽
6

605636002 Clinch Nut Hexsert M8

Clinch Nut Hexsert M8

2 650 ₽
7

390909100 Avex Rivet

Avex Rivet

120 ₽
8

293150120 Hemlock Rivet 6.5 mm

Hemlock Rivet 6.5 mm

2 410 ₽
9

293150119 Hemlock Rivet, 6.5 mm

Hemlock Rivet, 6.5 mm

1 540 ₽
10

505072690 Leg Bushing

Leg Bushing

6 510 ₽
11

518327983 Muffler Support

Muffler Support

1 640 ₽
12

293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GAT

Rivet Hucklok 4,8 mm HKLP-R6-5GAT

1 040 ₽
13

509000976 Tunnel Radiator

Tunnel Radiator

226 800 ₽
14

518326107 Fastening rail

Fastening rail

1 330 ₽
15

518328821 Footrest LH. Model WT

Footrest LH. Model WT

7 190 ₽
15

518328852 Footrest LH. Model SWT

Footrest LH. Model SWT

8 110 ₽
15

518328822 Footrest RH. Model WT

Footrest RH. Model WT

7 190 ₽
15

518328853 Footrest RH. Model SWT

Footrest RH. Model SWT

7 700 ₽
16

605355235 Fastening Bracket. Model WT

Fastening Bracket. Model WT

4 940 ₽
16

518327884 Fastening Bracket. Model SWT

Fastening Bracket. Model SWT

2 260 ₽
17

518328016 LH Drive Axle Cover. Model WT

LH Drive Axle Cover. Model WT

16 820 ₽
17

518328014 LH Drive Axle Cover. Model SWT

LH Drive Axle Cover. Model SWT

16 820 ₽
17

518328017 RH Drive Axle Cover. Model WT

RH Drive Axle Cover. Model WT

16 820 ₽
17

518328015 RH Drive Axle Cover. Model SWT

RH Drive Axle Cover. Model SWT

16 820 ₽
18

518325986 Battery support plate. Model WT

Battery support plate. Model WT

6 350 ₽
18

518327003 Battery Support. Model SWT

Battery Support. Model SWT

2 340 ₽
19

518329164 Seat Box Bracket

Seat Box Bracket

2 510 ₽
20

518326109 Support Tube Bracket LH

Support Tube Bracket LH

3 590 ₽
20

518326110 Support Tube Bracket RH

Support Tube Bracket RH

3 590 ₽
21

518326430 Clinch nut plate. Model WT

Clinch nut plate. Model WT

4 020 ₽
21

518328096 Clinch Nut Plate. Model SWT

Clinch Nut Plate. Model SWT

3 940 ₽
22

518325524 Frame Corner LH. Model WT

Frame Corner LH. Model WT

4 520 ₽
22

518325643 Frame Corner LH. Model SWT

Frame Corner LH. Model SWT

17 640 ₽
22

518328024 Frame Corner RH. Model WT

Frame Corner RH. Model WT

4 520 ₽
22

518325644 Frame Corner RH. Model SWT

Frame Corner RH. Model SWT

17 640 ₽
23

518325560 Adhesive Patch

Adhesive Patch

420 ₽
24

518328748 Rear Profile. Model WT

Rear Profile. Model WT

73 500 ₽
24

518328749 Rear Profile. Model SWT

Rear Profile. Model SWT

73 500 ₽
25

207582586 Hex. Flanged Screw M8 X 25, Scotch Grip

Hex. Flanged Screw M8 X 25, Scotch Grip

670 ₽
26

293150174 Hemlock Rivet, 6.4 mm

Hemlock Rivet, 6.4 mm

2 320 ₽
27

390909100 Avex Rivet

Avex Rivet

120 ₽
28

390909200 Avex Rivet

Avex Rivet

170 ₽
29

293150119 Hemlock Rivet, 6.5 mm

Hemlock Rivet, 6.5 mm

1 540 ₽
30

293150183 Rivet

Rivet

320 ₽
31

518326123 Gearbox Front Plate

Gearbox Front Plate

1 430 ₽
32

518326124 Gearbox Rear Plate

Gearbox Rear Plate

1 330 ₽
33

390402200 Pop Rivet 3/16''

Pop Rivet 3/16''

120 ₽
34

518326963 Footboard Support Tube, LH. Model WT

Footboard Support Tube, LH. Model WT

42 910 ₽
34

518327595 Footboard Support Tube LH. Model SWT

Footboard Support Tube LH. Model SWT

27 550 ₽
34

518326964 Footboard Support Tube, RH. Model WT

Footboard Support Tube, RH. Model WT

11 160 ₽
34

518327596 Footboard Support Tube RH. Model SWT

Footboard Support Tube RH. Model SWT

27 550 ₽
35

390909100 Avex Rivet. Model WT

Avex Rivet. Model WT

120 ₽
35

390909100 Avex Rivet. Model SWT

Avex Rivet. Model SWT

120 ₽
36

207662056 Screw Hex. Flange M6 x 20

Screw Hex. Flange M6 x 20

360 ₽
37

520001208 Black Rear Footrest

Black Rear Footrest

6 200 ₽
38

293150102 Rivet 3/16''

Rivet 3/16''

270 ₽
39

518328819 Black LH Toe Hook. Model WT

Black LH Toe Hook. Model WT

8 110 ₽
39

518328921 Black LH Toe Hook. Model SWT

Black LH Toe Hook. Model SWT

6 110 ₽
39

518328820 Black RH Toe Hook. Model WT

Black RH Toe Hook. Model WT

8 110 ₽
39

518328922 Black RH Toe Hook. Model SWT

Black RH Toe Hook. Model SWT

6 110 ₽
40

390909200 Avex Rivet. Model WT

Avex Rivet. Model WT

170 ₽
41

605636003 Clinch Nut M6 Hexsert. Model WT

Clinch Nut M6 Hexsert. Model WT

1 540 ₽
41

605636003 Clinch Nut M6 Hexsert. Model SWT

Clinch Nut M6 Hexsert. Model SWT

1 540 ₽
42

414644300 Dart. Model WT

Dart. Model WT

370 ₽
43

207662056 Screw Hex. Flange M6 x 20

Screw Hex. Flange M6 x 20

360 ₽
44

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6

490 ₽
45

250000717 Torx Head Screw M6 X 16

Torx Head Screw M6 X 16

740 ₽
46

233261414 Hex. Flanged Elastic Nut M6. Model SWT

Hex. Flanged Elastic Nut M6. Model SWT

490 ₽
47

514054846 Spring Bracket

Spring Bracket

380 ₽
48

390909200 Avex Rivet

Avex Rivet

170 ₽
49

518327535 Brace Ass'y. Includes 49 To 50

Brace Ass'y. Includes 49 To 50

25 070 ₽
50

512060295 Rubber Mount

Rubber Mount

28 770 ₽
51

234281474 Conical Spring Washer M8

Conical Spring Washer M8

540 ₽
52

518326213 S Module. Includes 52 To 53

S Module. Includes 52 To 53

118 880 ₽
53

390909200 Avex Rivet

Avex Rivet

170 ₽
54

210262050 Washer Head Hexagonal Screw

Washer Head Hexagonal Screw

740 ₽
55

207662544 Hex. Flanged Screw M6 X 25

Hex. Flanged Screw M6 X 25

240 ₽
56

207662544 Hex. Flanged Screw M6 X 25

Hex. Flanged Screw M6 X 25

240 ₽
57

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6

490 ₽
58

390909100 Avex Rivet

Avex Rivet

120 ₽
59

390909200 Avex Rivet

Avex Rivet

170 ₽
60

207582586 Hex. Flanged Screw M8 X 25, Scotch Grip

Hex. Flanged Screw M8 X 25, Scotch Grip

670 ₽
61

207583586 Hex. Flanged Screw M8 X 35, Scotch Grip

Hex. Flanged Screw M8 X 35, Scotch Grip

880 ₽
62

207584044 Hex. Flanged Screw M8 X 40, Scotch Grip

Hex. Flanged Screw M8 X 40, Scotch Grip

600 ₽
63

518326140 Engine Support

Engine Support

10 090 ₽
64

390909100 Avex Rivet

Avex Rivet

120 ₽
65

293150119 Hemlock Rivet, 6.5 mm

Hemlock Rivet, 6.5 mm

1 540 ₽
66

518327004 Front Member Assy. Includes 66 To 68

Front Member Assy. Includes 66 To 68

201 250 ₽
67

502007077 Bumper Fastener LH

Bumper Fastener LH

17 640 ₽
67

502007078 Bumper Fastener RH

Bumper Fastener RH

4 520 ₽
68

390909200 Avex Rivet

Avex Rivet

170 ₽
69

207662044 Hex. Flanged Screw M6 X 20

Hex. Flanged Screw M6 X 20

1 470 ₽
70

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6

490 ₽
71

224061201 Flat Washer

Flat Washer

460 ₽
72

207662044 Hex. Flanged Screw M6 X 20

Hex. Flanged Screw M6 X 20

1 470 ₽
73

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6

490 ₽
74

207662044 Hex. Flanged Screw M6 X 20

Hex. Flanged Screw M6 X 20

1 470 ₽
75

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6

490 ₽
76

390909200 Avex Rivet

Avex Rivet

170 ₽
77

518329105 Upper Support Tube

Upper Support Tube

62 970 ₽
78

207182044 Hex. Screw M8 X 20

Hex. Screw M8 X 20

70 ₽
79

232581414 Hex. Elastic Stop Nut M8

Hex. Elastic Stop Nut M8

210 ₽
80

518327029 Extention Plate. Model SWT

Extention Plate. Model SWT

2 500 ₽
81

207662544 Hex. Flanged Screw M6 X 25. Model SWT

Hex. Flanged Screw M6 X 25. Model SWT

240 ₽
82

233261414 Hex. Flanged Elastic Nut M6. Model SWT

Hex. Flanged Elastic Nut M6. Model SWT

490 ₽
83

518326848 Upper Column Support

Upper Column Support

4 310 ₽
84

207662056 Screw Hex. Flange M6 x 20

Screw Hex. Flange M6 x 20

360 ₽
85

233261416 Elastic Flanged Nut M6

Elastic Flanged Nut M6

740 ₽
86

518326355 Center Column Support

Center Column Support

1 680 ₽
87

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6

490 ₽
88

207662556 Hex. Flange Screw M6 X 25

Hex. Flange Screw M6 X 25

410 ₽
89

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6

490 ₽
90

518325560 Adhesive Patch

Adhesive Patch

420 ₽
91

207662044 Hex. Flanged Screw M6 X 20

Hex. Flanged Screw M6 X 20

1 470 ₽
92

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6

490 ₽
