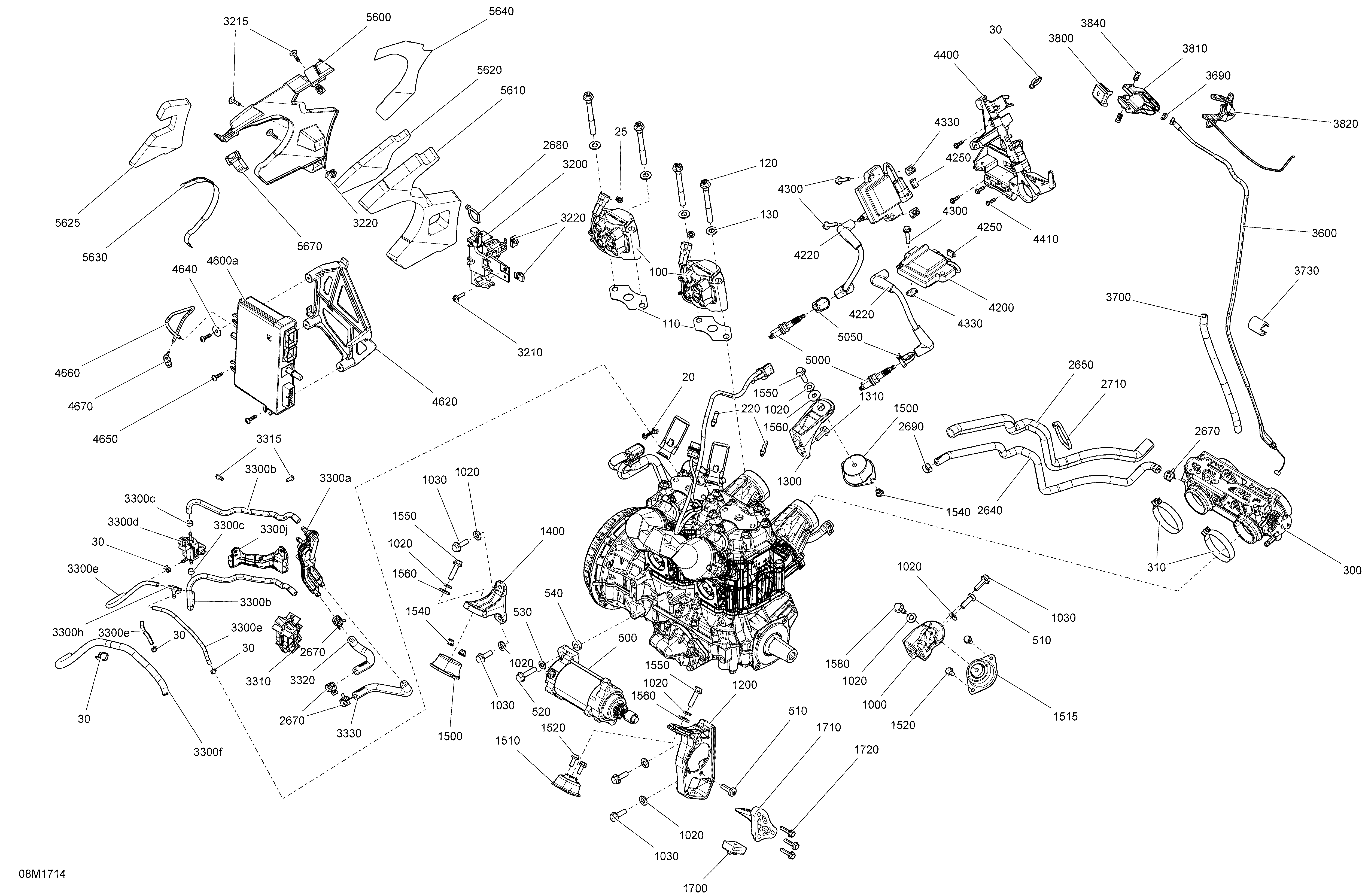

01- Engine - All Models для BRP Ski-Doo TUNDRA - 2-STROKE - XTREME - 2017
-
№АртикулНазвание
-
20515177770 LockerLocker
-
25732610072 Push NutPush Nut
-
30293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
100512061053 Fuel InjectorFuel Injector
-
110420430930 GasketGasket
-
120420441187 Flanged Torx Screw M10 X 90Flanged Torx Screw M10 X 90
-
130234001410 Flat Washer 10 mmFlat Washer 10 mm
-
220420924724 Hose NippleHose Nipple
-
300420889201 Throttle BodyThrottle Body
-
310293650158 Gemi ClampGemi Clamp
-
500515177389 StarterStarter
-
510250000752 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
520207583544 Hex Flanged Screw M8 X 35, Scotch GripHex Flanged Screw M8 X 35, Scotch Grip
-
530250200008 Flat Washer With Teflon 8 mmFlat Washer With Teflon 8 mm
-
540515176500 Washer. Manuf Before July 21rst 2016Washer. Manuf Before July 21rst 2016
-
1000512060478 Rear Support, PTORear Support, PTO
-
1020250200146 Conical Spring Washer M8Conical Spring Washer M8
-
1030207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
1200512060699 Front Support, PTOFront Support, PTO
-
1300512060559 Rear Support, MAGRear Support, MAG
-
1310207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
1400512060469 Front Support, MAGFront Support, MAG
-
1500512060729 Rubber MountRubber Mount
-
1510512060387 Rubber MountRubber Mount
-
1515512060448 Rubber MountRubber Mount
-
1520207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
1540233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1550207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
1560503183200 Washer, YellowWasher, Yellow
-
1580250000796 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
1700512060627 StopperStopper
-
1710512060576 Stopper SupportStopper Support
-
1720207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
2640512060740 Formed Hose, OutputFormed Hose, Output
-
2650513033412 TubingTubing
-
2670293650214 Norma Spring ClampNorma Spring Clamp
-
2680414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
2690293650046 Oetiker ClampOetiker Clamp
-
2710293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
3200512060298 Solenoid SupportSolenoid Support
-
3210207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
3215250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
3220250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
3300a512060692 ManifoldManifold
-
3300b415080200 Hose, PolyurethaneHose, Polyurethane
-
3300c293650234 Crimp ClampCrimp Clamp
-
3300d512061078 Solenoid ValveSolenoid Valve
-
3300e270000374 Hose 4.3 mmHose 4.3 mm
-
3300f409901700 Tubing 9 mmTubing 9 mm
-
3300h293710068 T-FittingT-Fitting
-
3300j512060827 Hose SupportHose Support
-
3300k512060934 SpringSpring
-
3310512060769 Manifold SupportManifold Support
-
3315210251150 Hex. Flanged Screw M5 X 11Hex. Flanged Screw M5 X 11
-
3320512060695 LH Formed HoseLH Formed Hose
-
3330512060694 RH Formed HoseRH Formed Hose
-
3600512060851 Throttle CableThrottle Cable
-
3690414274500 CirclipCirclip
-
3700409901700 Tubing 9 mmTubing 9 mm
-
3730512060313 ProtectorProtector
-
3800512060859 Upper HousingUpper Housing
-
3810512060860 Lower HousingLower Housing
-
3820512061051 Handle Ass'yHandle Ass'y
-
3840732601143 Flanged ScrewFlanged Screw
-
4200512060953 Ignition CoilIgnition Coil
-
4220512061126 Ignition CableIgnition Cable
-
4250710000992 ClipClip
-
4300250000253 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
4330293100003 Nut M6Nut M6
-
4400512060888 SupportSupport
-
4410241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
4600a512060780 Calibrated ModuleCalibrated Module
-
4620512060858 Calibrated Module SupportCalibrated Module Support
-
4640250200040 Flat WasherFlat Washer
-
4650250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
4660415080100 LineLine
-
4670414814100 Male ConnectorMale Connector
-
5000415129375 Spark PlugSpark Plug
-
5050512060993 ClampClamp
-
5600512060634 Noise ShieldNoise Shield
-
5610512060343 Interior Noise FoamInterior Noise Foam
-
5620512060344 Upper Exterior Noise FoamUpper Exterior Noise Foam
-
5625512060665 Lower Exterior Noise FoamLower Exterior Noise Foam
-
5630512060574 Heat ShieldHeat Shield
-
5640512060666 Heat ShieldHeat Shield
-
5650250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
5670508000599 Velcro StripVelcro Strip
