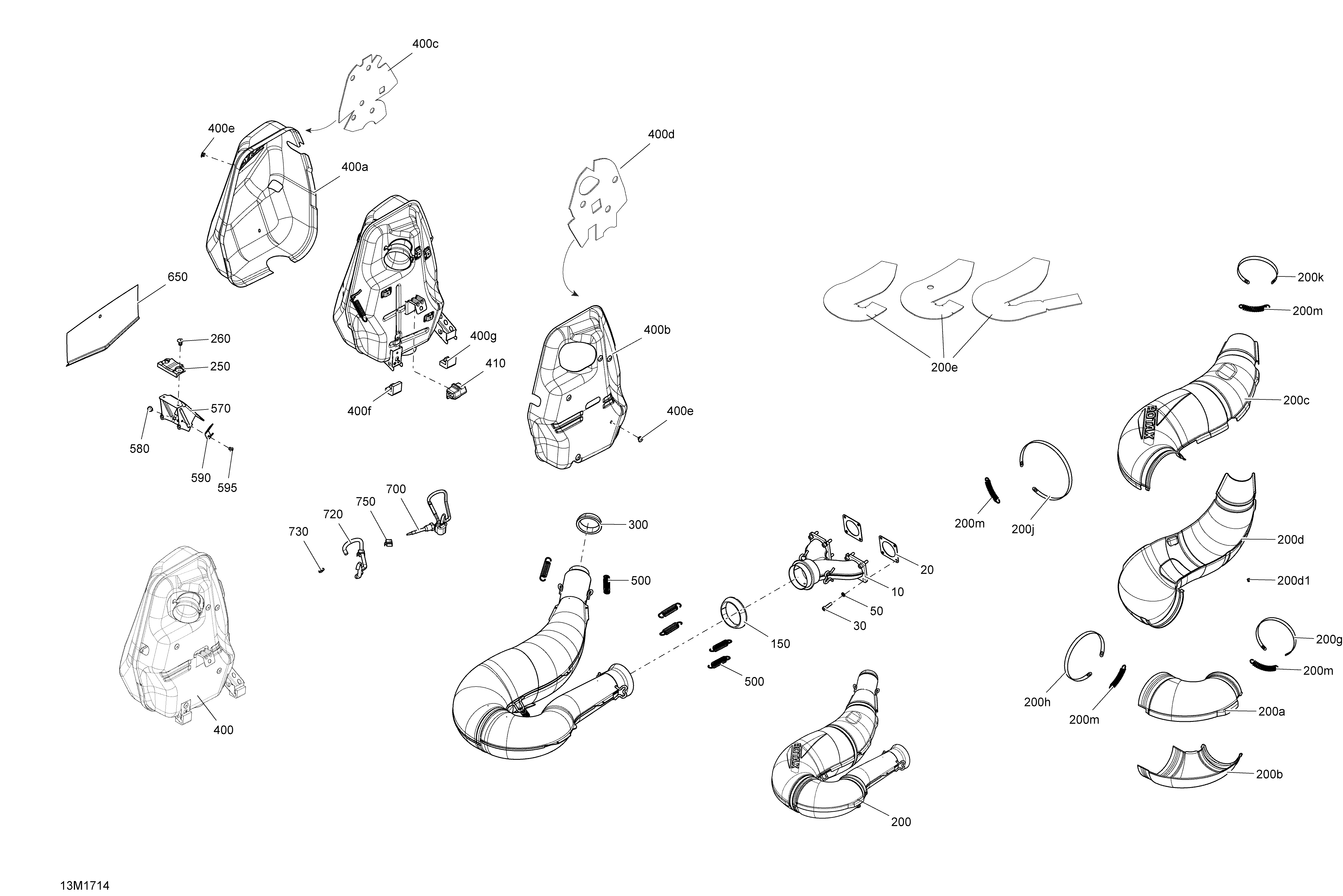

01- Exhaust System - All Models для BRP Ski-Doo TUNDRA - 2-STROKE - XTREME - 2017
-
№АртикулНазвание
-
10420673420 Exhaust ManifoldExhaust Manifold
-
10420673420 Exhaust ManifoldExhaust Manifold
-
20420850552 GasketGasket
-
20420850552 GasketGasket
-
30514054626 Socket Head Screw M6 X 22, Scotch GripSocket Head Screw M6 X 22, Scotch Grip
-
30514054626 Socket Head Screw M6 X 22, Scotch GripSocket Head Screw M6 X 22, Scotch Grip
-
50514053953 WasherWasher
-
50514053953 WasherWasher
-
150514053487 Exhaust GasketExhaust Gasket
-
150514053487 Exhaust GasketExhaust Gasket
-
200514055066 Exhaust Tuned Pipe. Includes 200 to 200mExhaust Tuned Pipe. Includes 200 to 200m
-
200514055066 Exhaust Tuned Pipe. Includes 200 to 200mExhaust Tuned Pipe. Includes 200 to 200m
-
200a514054992 Front Upper Half EnveloppeFront Upper Half Enveloppe
-
200a514054992 Front Upper Half EnveloppeFront Upper Half Enveloppe
-
200b514054993 Front Lower Half EnveloppeFront Lower Half Enveloppe
-
200b514054993 Front Lower Half EnveloppeFront Lower Half Enveloppe
-
200c514055039 Rear Upper Half EnveloppeRear Upper Half Enveloppe
-
200c514055039 Rear Upper Half EnveloppeRear Upper Half Enveloppe
-
200d514054990 Rear Lower Half Enveloppe. Includes 200d to 200d1Rear Lower Half Enveloppe. Includes 200d to 200d1
-
200d514054990 Rear Lower Half Enveloppe. Includes 200d to 200d1Rear Lower Half Enveloppe. Includes 200d to 200d1
-
200d1293150091 Henrob RivetHenrob Rivet
-
200d1293150091 Henrob RivetHenrob Rivet
-
200e514054487 Insulating WoolInsulating Wool
-
200e514054487 Insulating WoolInsulating Wool
-
200g514054408 Retaining StrapRetaining Strap
-
200g514054408 Retaining StrapRetaining Strap
-
200h514054409 Retaining StrapRetaining Strap
-
200h514054409 Retaining StrapRetaining Strap
-
200j514054410 Retaining StrapRetaining Strap
-
200j514054410 Retaining StrapRetaining Strap
-
200k514053499 Retaining StrapRetaining Strap
-
200k514053499 Retaining StrapRetaining Strap
-
200M514053643 SpringSpring
-
200M514053643 SpringSpring
-
250514054275 BumperBumper
-
250514054275 BumperBumper
-
260293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
260293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
300514054174 Exhaust GasketExhaust Gasket
-
300514054174 Exhaust GasketExhaust Gasket
-
400514054970 Muffler Ass'y. Includes 400 to 400gMuffler Ass'y. Includes 400 to 400g
-
400514054970 Muffler Ass'y. Includes 400 to 400gMuffler Ass'y. Includes 400 to 400g
-
400a514054985 RH DeflectorRH Deflector
-
400a514054985 RH DeflectorRH Deflector
-
400b514054967 LH DeflectorLH Deflector
-
400b514054967 LH DeflectorLH Deflector
-
400c514054711 RH Insulating WoolRH Insulating Wool
-
400c514054711 RH Insulating WoolRH Insulating Wool
-
400d514054299 LH Insulating WoolLH Insulating Wool
-
400d514054299 LH Insulating WoolLH Insulating Wool
-
400e390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
400e390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
400f514054274 Lower StopperLower Stopper
-
400f514054274 Lower StopperLower Stopper
-
400g514054496 Lower StopperLower Stopper
-
400g514054496 Lower StopperLower Stopper
-
410514054606 Upper StopperUpper Stopper
-
410514054606 Upper StopperUpper Stopper
-
500415107100 SpringSpring
-
500415107100 SpringSpring
-
570514054767 Exhaust Muffler SupportExhaust Muffler Support
-
570514054767 Exhaust Muffler SupportExhaust Muffler Support
-
580293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
580293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
590514053393 Spring BracketSpring Bracket
-
590514053393 Spring BracketSpring Bracket
-
595390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
595390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
650514054745 Reflective SheetReflective Sheet
-
650514054745 Reflective SheetReflective Sheet
-
700514054870 Temperature SensorTemperature Sensor
-
700514054870 Temperature SensorTemperature Sensor
-
720515175442 Tubing 6 mmTubing 6 mm
-
720515175442 Tubing 6 mmTubing 6 mm
-
730293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
730293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
750414227300 ClipClip
-
750414227300 ClipClip
