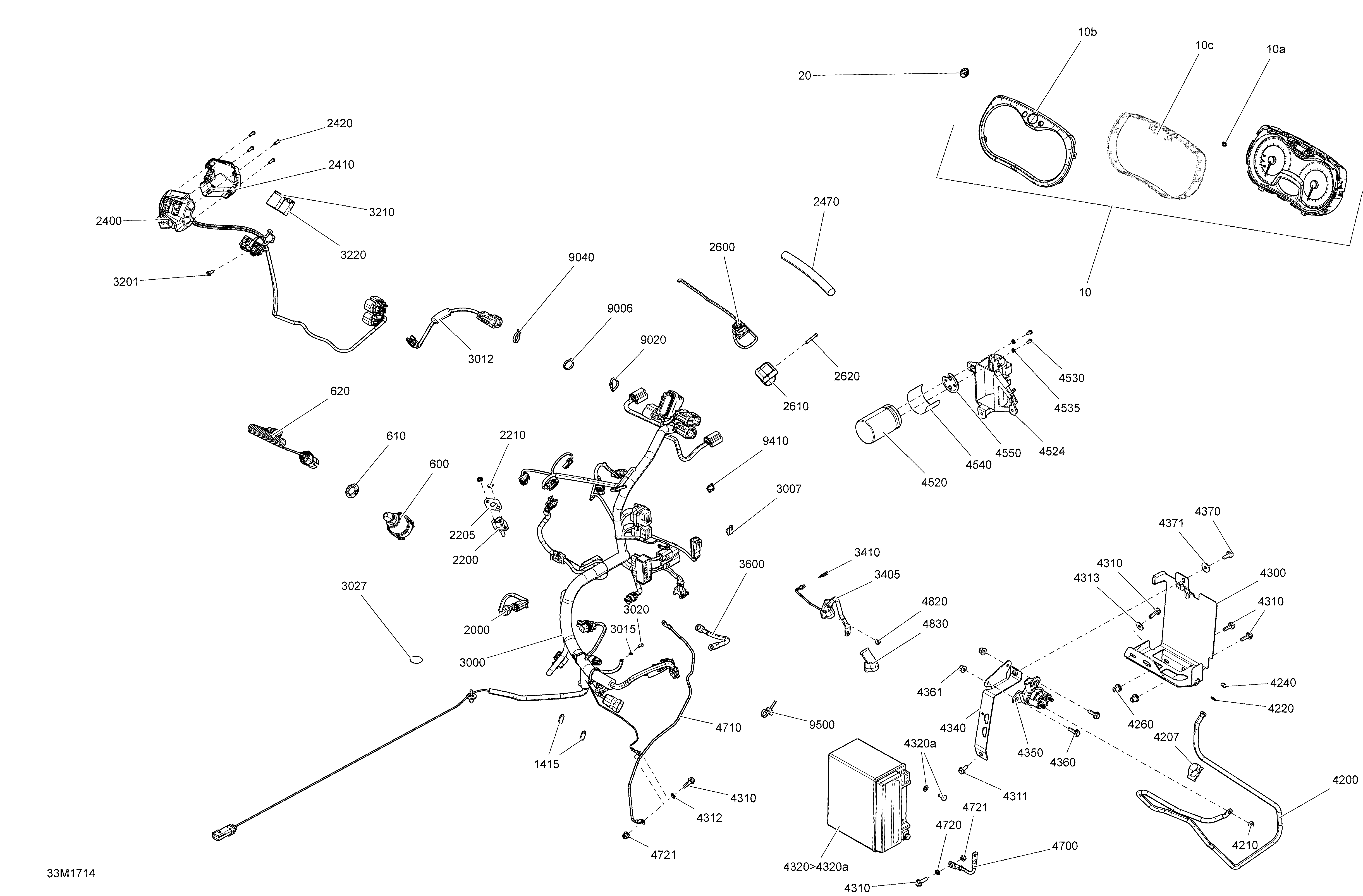

10- Electrical System - All Models для BRP Ski-Doo TUNDRA - 2-STROKE - XTREME - 2017
-
№АртикулНазвание
-
10>10c515177914 Speedometer. Includes 10 to 10cSpeedometer. Includes 10 to 10c
-
10a415129355 Speedometer ButtonSpeedometer Button
-
10b415129370 Gauge RingGauge Ring
-
10c415129349 LensLens
-
20516006224 BRP Logo, 20 mmBRP Logo, 20 mm
-
600515178049 DESS SwitchDESS Switch
-
610278002963 Safety NutSafety Nut
-
620515178038 KeyKey
-
1415515176141 CapCap
-
2000515177813 Temperature SensorTemperature Sensor
-
2200515176366 Air Temperature SensorAir Temperature Sensor
-
2205508000769 SealSeal
-
2210389804300 Push NutPush Nut
-
2400515178198 LH HousingLH Housing
-
2410515177147 Housing PlateHousing Plate
-
2420250000671 Torx ScrewTorx Screw
-
2470415129879 Protector TubeProtector Tube
-
2600515177362 Kill SwitchKill Switch
-
2610515177310 Kill Switch SupportKill Switch Support
-
2620250000263 Torx Screw #8-18Torx Screw #8-18
-
3000515177982 Main HarnessMain Harness
-
3007710001038 ClipClip
-
3012515177877 Wiring HarnessWiring Harness
-
3015234141601 Lock Washer 4 mmLock Washer 4 mm
-
3020250000741 Screw-Torx Button Head M4 X 8Screw-Torx Button Head M4 X 8
-
3027518325560 Adhesive PatchAdhesive Patch
-
3201250000690 Pan Screw Forming, 7500CPan Screw Forming, 7500C
-
3210515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
3220515175846 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
3405515177576 Fuse Battery WireFuse Battery Wire
-
3410278001443 Fuse, 25 AmperesFuse, 25 Amperes
-
3600515177289 Ground WireGround Wire
-
4200515177208 Battery/Starter WireBattery/Starter Wire
-
4207515177066 ClipClip
-
4210232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
4220234061410 Flat Washer 6 mmFlat Washer 6 mm
-
4240232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
4260293450275 InsertInsert
-
4300515177264 Battery SupportBattery Support
-
4310207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4311207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
4312234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
4313250200082 Flat WasherFlat Washer
-
4320>4320a410301203 Battery Ass'y, 18 Amperes. Includes 4320 to 4320aBattery Ass'y, 18 Amperes. Includes 4320 to 4320a
-
4320a250000282 Battery Bolt KitBattery Bolt Kit
-
4340515177266 Battery StripBattery Strip
-
4350278003012 Starter RelayStarter Relay
-
4360207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4361233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
4370207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
4371224061201 Flat WasherFlat Washer
-
4520515177272 CapacitorCapacitor
-
4524515176607 Capacitor SupportCapacitor Support
-
4530250000462 Socket Head Screw M10 X 32Socket Head Screw M10 X 32
-
4535250200026 Lock washerLock washer
-
4540516006206 Capacitor DecalCapacitor Decal
-
4550515177193 CapCap
-
4700515176358 Ground WireGround Wire
-
4710515178052 Ground WireGround Wire
-
4720250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
4721233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
4721233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
4820232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
4830710000495 Protector CapProtector Cap
-
9006293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
9020293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
9040414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9410293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
9500293750009 Tie-Rap 173 mmTie-Rap 173 mm
