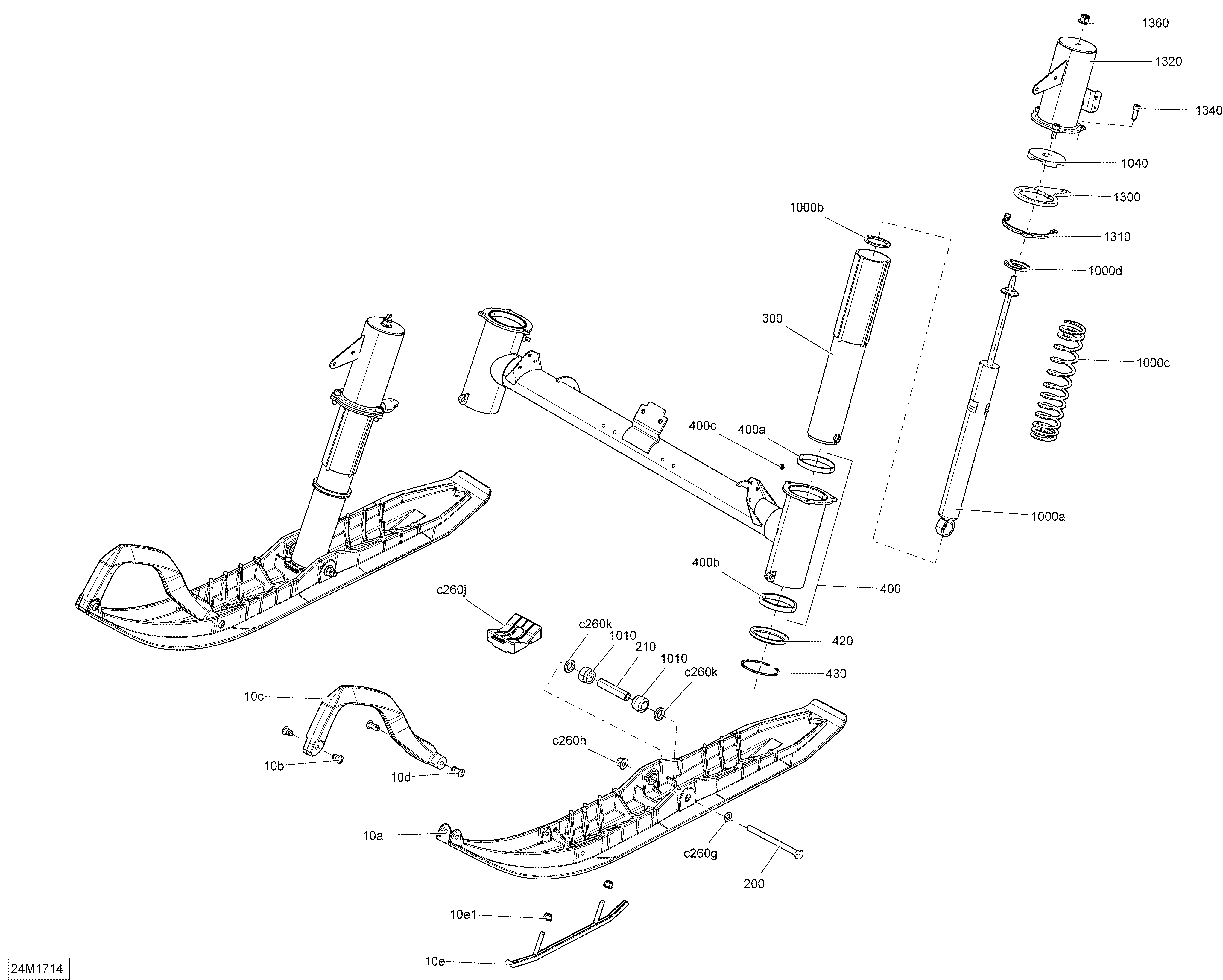

07- Front Suspension And Ski - All Models для BRP Ski-Doo TUNDRA - 2-STROKE - XTREME - 2017
-
№АртикулНазвание
-
10a505073354 Green DS 2 SkiGreen DS 2 Ski
-
10b505071812 RetainerRetainer
-
10c505072976 Black HandleBlack Handle
-
10d505072133 RetainerRetainer
-
10e860201044 Carbide Runner Kit. Includes 10e to 10e1Carbide Runner Kit. Includes 10e to 10e1
-
10e1233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
200250000703 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
210505073209 Ski AxleSki Axle
-
300505073200 Ski LegSki Leg
-
400505073497 S2 Modul, Ass'y. Includes 400 to 400cS2 Modul, Ass'y. Includes 400 to 400c
-
400a414803100 Upper CushionUpper Cushion
-
400b414803200 Lower CushionLower Cushion
-
400c408200700 Grease FittingGrease Fitting
-
420505072696 Seal OilSeal Oil
-
430505072698 CirclipCirclip
-
1000a505073046 ShockShock
-
1000b505072578 WasherWasher
-
1000c505073204 Black Spring. Model EuropeBlack Spring. Model Europe
-
1000c505073327 Black Spring. Model North AmericaBlack Spring. Model North America
-
1000d505072619 Spring StopperSpring Stopper
-
1010572034500 CushionCushion
-
1040570025800 StopperStopper
-
1300505073823 Steering ArmSteering Arm
-
1310505073983 SpacerSpacer
-
1320505073449 LH Suspension CoverLH Suspension Cover
-
1320505073450 RH Suspension CoverRH Suspension Cover
-
1340205082044 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
1360233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
c260g503192496 WasherWasher
-
c260h233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
c260j505072594 Ski StopperSki Stopper
-
c260k505072579 SpacerSpacer
