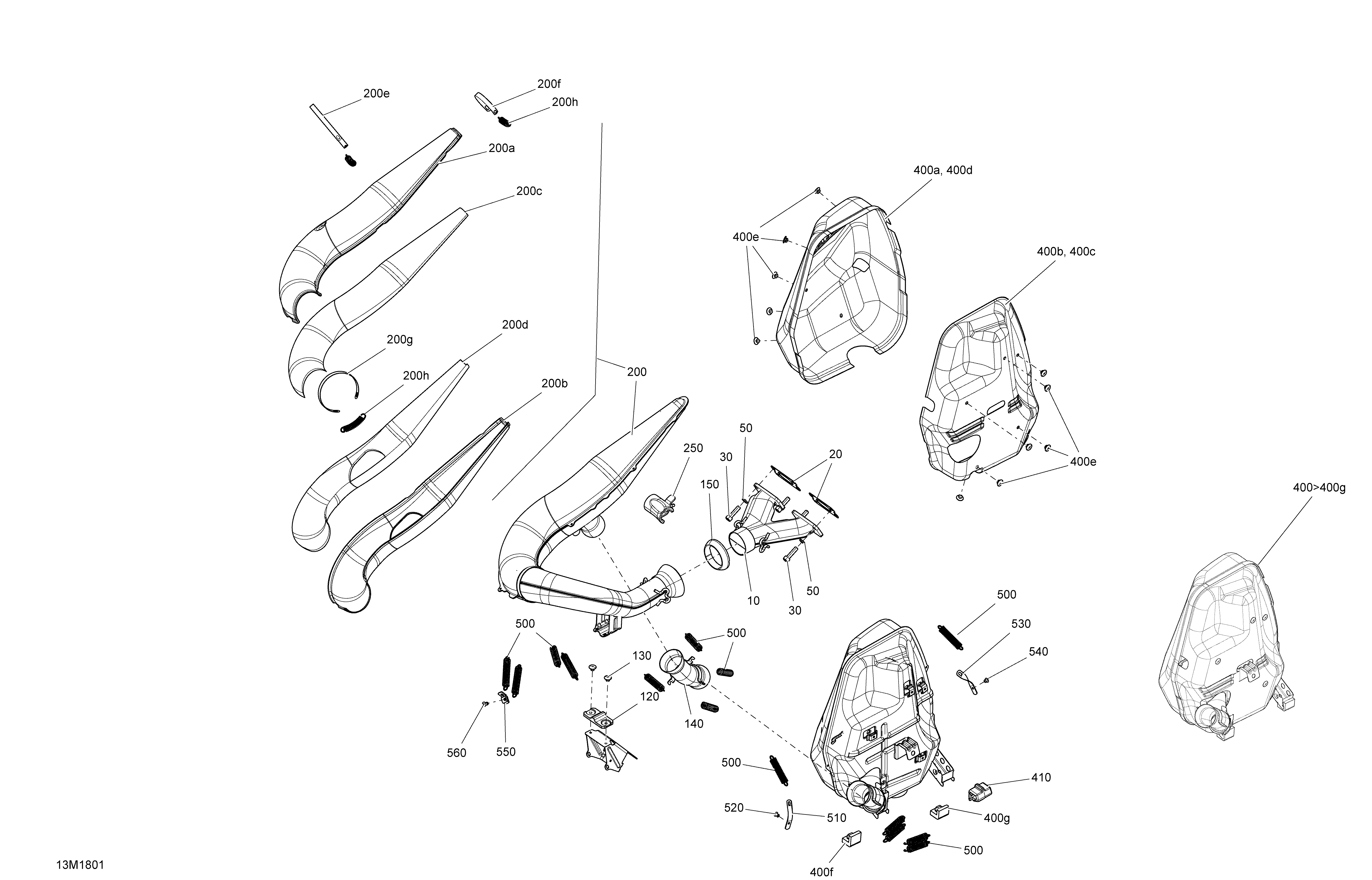

01- Exhaust Expedition Sport 550F для BRP Ski-Doo 1- EXPEDITION SPORT 550F - 2018
-
№АртикулНазвание
-
10420673065 Exhaust ManifoldExhaust Manifold
-
20420831849 Gasket 1.0 mmGasket 1.0 mm
-
30205083044 Socket Head Screw M8 X 30Socket Head Screw M8 X 30
-
50514053837 WasherWasher
-
120514054617 BumperBumper
-
130293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
140514054411 Exhaust ElbowExhaust Elbow
-
150514053644 Exhaust GasketExhaust Gasket
-
200>200h514054414 Tuned Pipe Ass'y. Includes 200 to 200hTuned Pipe Ass'y. Includes 200 to 200h
-
200a514054208 Rear Upper Half-enveloppeRear Upper Half-enveloppe
-
200b514054210 Rear Lower Half EnvellopeRear Lower Half Envellope
-
200c514054244 Upper Insulating WoolUpper Insulating Wool
-
200d514054243 Lower Insulating WoolLower Insulating Wool
-
200e514053502 Retaining StrapRetaining Strap
-
200f514053492 Retaining StrapRetaining Strap
-
200g514053498 Retaining StrapRetaining Strap
-
200h514053643 SpringSpring
-
250514054513 BumperBumper
-
400>400g514054978 Exhaust Muffler Ass'y. Includes 400 to 400gExhaust Muffler Ass'y. Includes 400 to 400g
-
400a514054984 RH DeflectorRH Deflector
-
400b514054979 LH DeflectorLH Deflector
-
400c514054421 LH Insulated WoolLH Insulated Wool
-
400d514054711 RH Insulating WoolRH Insulating Wool
-
400e390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
400f514054274 Lower StopperLower Stopper
-
400g514054496 Lower StopperLower Stopper
-
410514054606 Upper StopperUpper Stopper
-
500415107100 SpringSpring
-
510514054974 Spring BracketSpring Bracket
-
520293150144 Stavex RivetStavex Rivet
-
530514054974 Spring BracketSpring Bracket
-
540390909200 Avex RivetAvex Rivet
-
550514053436 Spring BracketSpring Bracket
-
560390909100 Avex RivetAvex Rivet
