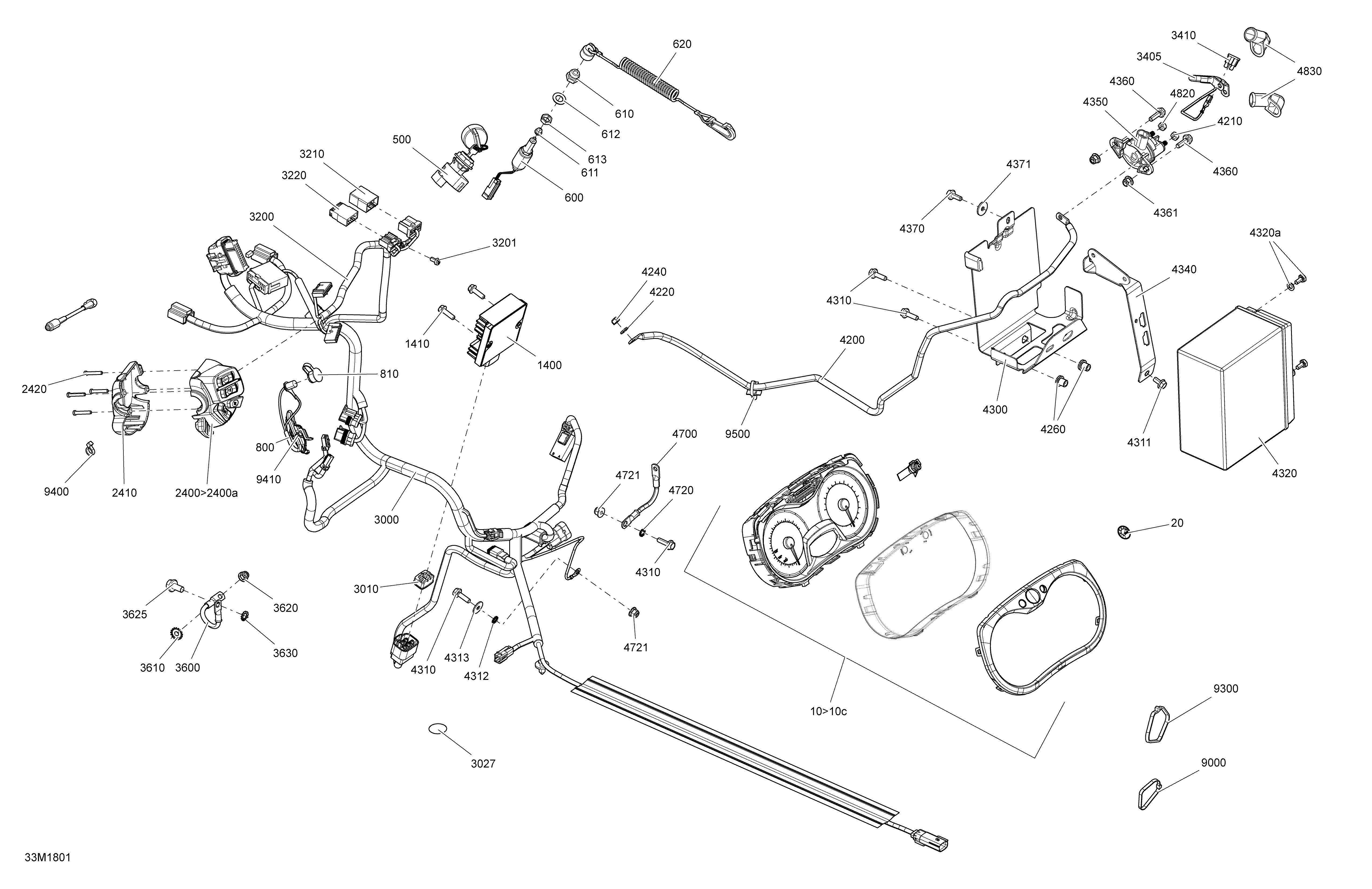

10- Electrical System Expedition - 550F для BRP Ski-Doo 1- EXPEDITION SPORT 550F - 2018
-
№АртикулНазвание
-
10515177279 Indicator. Includes 10 to 10,003Indicator. Includes 10 to 10,003
-
10.001415129349 LensLens
-
10.002415129355 Speedometer ButtonSpeedometer Button
-
10.003415129348 Gauge RingGauge Ring
-
20516006224 BRP Logo, 20 mmBRP Logo, 20 mm
-
500515177063 Ignition SwirchIgnition Swirch
-
600515175653 Brake SwitchBrake Switch
-
610515145900 Switch NutSwitch Nut
-
611570151100 Plunger CapPlunger Cap
-
612250200084 Flat WasherFlat Washer
-
613732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
620515178283 Cap Ass'yCap Ass'y
-
800515177837 Visor HarnessVisor Harness
-
810572103300 CapCap
-
1400515176699 Voltage RegulatorVoltage Regulator
-
1410210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2400515177021 LH Housing. Includes 2400 to 2400,001LH Housing. Includes 2400 to 2400,001
-
2400.001515176088 Start/RER ButtonStart/RER Button
-
2410515175926 Housing Switch PlateHousing Switch Plate
-
2420250000263 Torx Screw #8-18Torx Screw #8-18
-
3000515177979 Main HarnessMain Harness
-
3010515176681 LockLock
-
3027518325560 Adhesive PatchAdhesive Patch
-
3200515177609 Steering Wiring HarnessSteering Wiring Harness
-
3201250000690 Pan Screw Forming, 7500CPan Screw Forming, 7500C
-
3210515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
3220515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
3405515177576 Fuse Battery WireFuse Battery Wire
-
3410410917200 Fuse, 30 AmperesFuse, 30 Amperes
-
3600515176745 Ground WireGround Wire
-
3610250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
3620233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
3625207581646 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
3630234481608 Serrated Lock Washer 8 mmSerrated Lock Washer 8 mm
-
4200515177730 Battery/Starter WireBattery/Starter Wire
-
4210232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
4220234061410 Flat Washer 6 mmFlat Washer 6 mm
-
4240232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
4260293450275 InsertInsert
-
4300515177264 Battery SupportBattery Support
-
4310207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4310207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4311207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
4312234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
4313250200082 Flat WasherFlat Washer
-
4320410301203 Battery Ass'y, 18 Amperes. Includes 4320 to 4320,001Battery Ass'y, 18 Amperes. Includes 4320 to 4320,001
-
4320.001250000282 Battery Bolt KitBattery Bolt Kit
-
4340515177266 Battery StripBattery Strip
-
4350278003012 Starter RelayStarter Relay
-
4360207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4361233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
4370207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
4371224061201 Flat WasherFlat Washer
-
4700515176358 Ground WireGround Wire
-
4720250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
4721233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
4820232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
4830710000495 Protector CapProtector Cap
-
6000515175851 ExtensionExtension
-
9000414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9300293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
9400293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
9410293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
9500293750009 Tie-Rap 173 mmTie-Rap 173 mm
