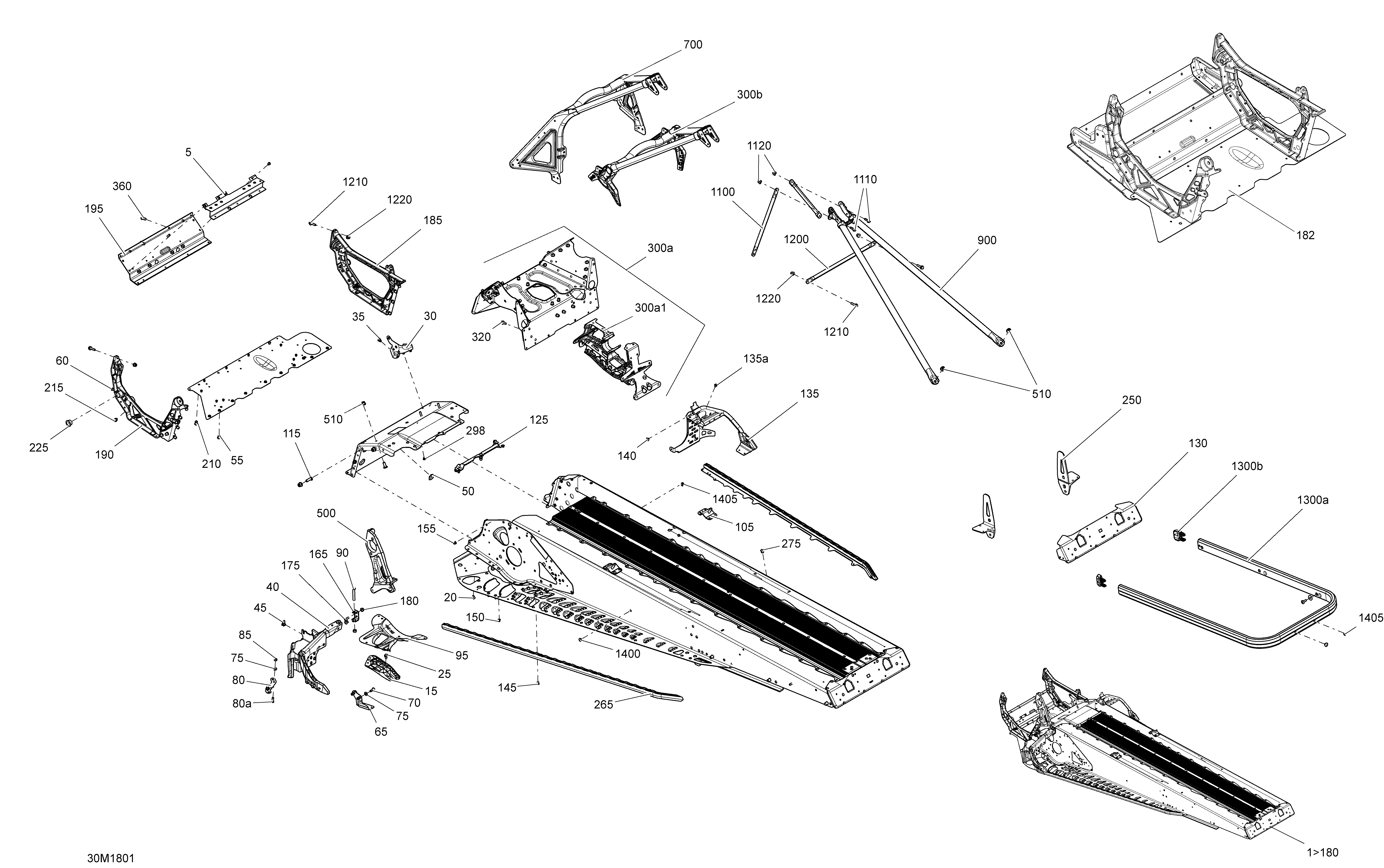

09- Frame Expedition - 550F для BRP Ski-Doo 1- EXPEDITION SPORT 550F - 2018
-
№АртикулНазвание
-
1>180415130106 Frame Assy. ExpeditionFrame Assy. Expedition
-
5518326120 Engine SupportEngine Support
-
15518325782 RH DeflectorRH Deflector
-
15518325783 LH DeflectorLH Deflector
-
20293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
25207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
30518325559 RH Engine SupportRH Engine Support
-
35293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
40518326820 LH StirupLH Stirup
-
45250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
50293730052 Black PlugBlack Plug
-
55293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
60293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
-
65518326960 SupportSupport
-
70250000536 Tork Screw M6 X 18Tork Screw M6 X 18
-
75250200039 Flat WasherFlat Washer
-
80518326986 AttachAttach
-
80a250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
85232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
90250000535 Torx Screw M8 X 55Torx Screw M8 X 55
-
95518324874 RH ReinforcementRH Reinforcement
-
95518324875 LH ReinforcementLH Reinforcement
-
105518325973 RH Rear BaseRH Rear Base
-
105518325974 LH Rear BaseLH Rear Base
-
115250300038 Clinch StudClinch Stud
-
125518326656 SealSeal
-
130518327105 Rear CapRear Cap
-
135518328938 RH StirupRH Stirup
-
135a390909200 Avex RivetAvex Rivet
-
140293730042 Full Moon Dart 5 mmFull Moon Dart 5 mm
-
145390909100 Avex RivetAvex Rivet
-
150293150144 Stavex RivetStavex Rivet
-
155293150146 Henrob RivetHenrob Rivet
-
165518326961 U-AttachU-Attach
-
175250000534 Tork Screw M6 X 16Tork Screw M6 X 16
-
180233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
182518327568 E Module. Includes 10 to 10gE Module. Includes 10 to 10g
-
185518326795 RH MemberRH Member
-
190518325558 LH MemberLH Member
-
195518325818 Front MemberFront Member
-
210293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
215293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
225505073317 Leg CushionLeg Cushion
-
250518325955 RH Slide BracketRH Slide Bracket
-
250518325956 LH Slide BracketLH Slide Bracket
-
265518325159 RH RollerRH Roller
-
265518325160 LH RollerLH Roller
-
275293150147 Hemlock RivetHemlock Rivet
-
298390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
300a518328327 Cross Member S ModuleCross Member S Module
-
300a1518327487 Front Suspension SupportFront Suspension Support
-
300b518326975 Front MemberFront Member
-
320250000822 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
360293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
500518328346 Pulley SupportPulley Support
-
510233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
700518326557 Front Member, S ModuleFront Member, S Module
-
900518326559 Rear MemberRear Member
-
1100518325114 Upper Column SupportUpper Column Support
-
1110207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
1120233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
1200518325115 Center Column SupportCenter Column Support
-
1210207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
1220233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1300a518325579 Clear Rear BumperClear Rear Bumper
-
1300b520000711 Full Moon RH CapFull Moon RH Cap
-
1300b520000712 Full Moon LH CapFull Moon LH Cap
-
1400293730041 Full Moon Dart 8 mmFull Moon Dart 8 mm
-
1405293730059 Full Moon Dart 10 mmFull Moon Dart 10 mm
