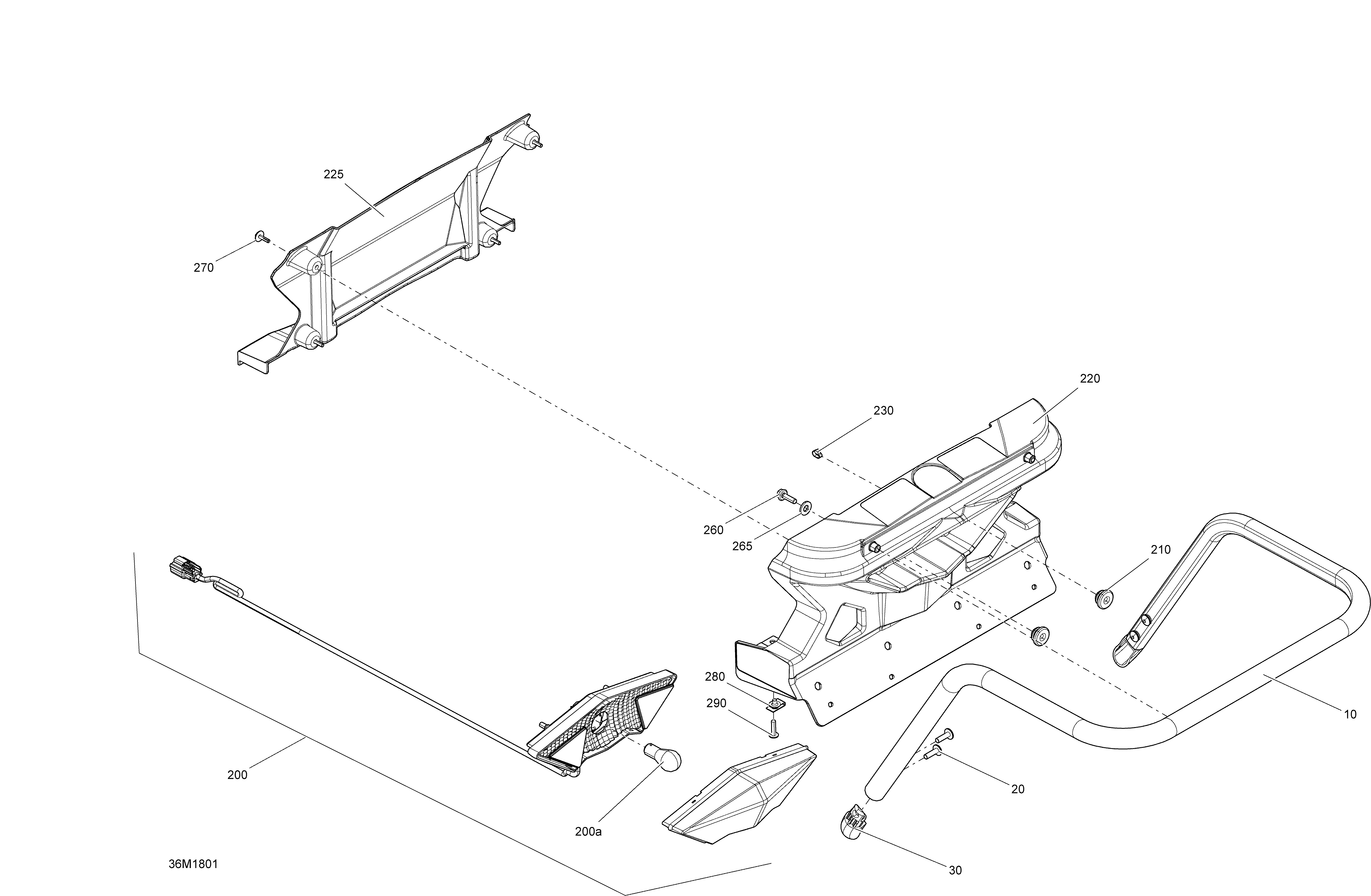

09- Luggage Rack Expedition - 550F для BRP Ski-Doo 1- EXPEDITION SPORT 550F - 2018
-
№АртикулНазвание
-
10511000705 Luggage RackLuggage Rack
-
20250000786 Torx Screw M6 X 20, Scotch GripTorx Screw M6 X 20, Scotch Grip
-
30520000985 RH CapRH Cap
-
35520000986 LH CapLH Cap
-
200>200a520001559 Rear Light. Includes 200 to 200aRear Light. Includes 200 to 200a
-
200a520000758 BulbBulb
-
210705003666 Rubber GrommetRubber Grommet
-
220511000625 Rear Light SupportRear Light Support
-
225511000701 Rear Cover SupportRear Cover Support
-
230293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
250293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
260207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
265234062410 Flat Washer 6 mmFlat Washer 6 mm
-
270250000725 Screw M4 X 16Screw M4 X 16
-
280250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
290250000724 Torx Screw M5 X 20Torx Screw M5 X 20
