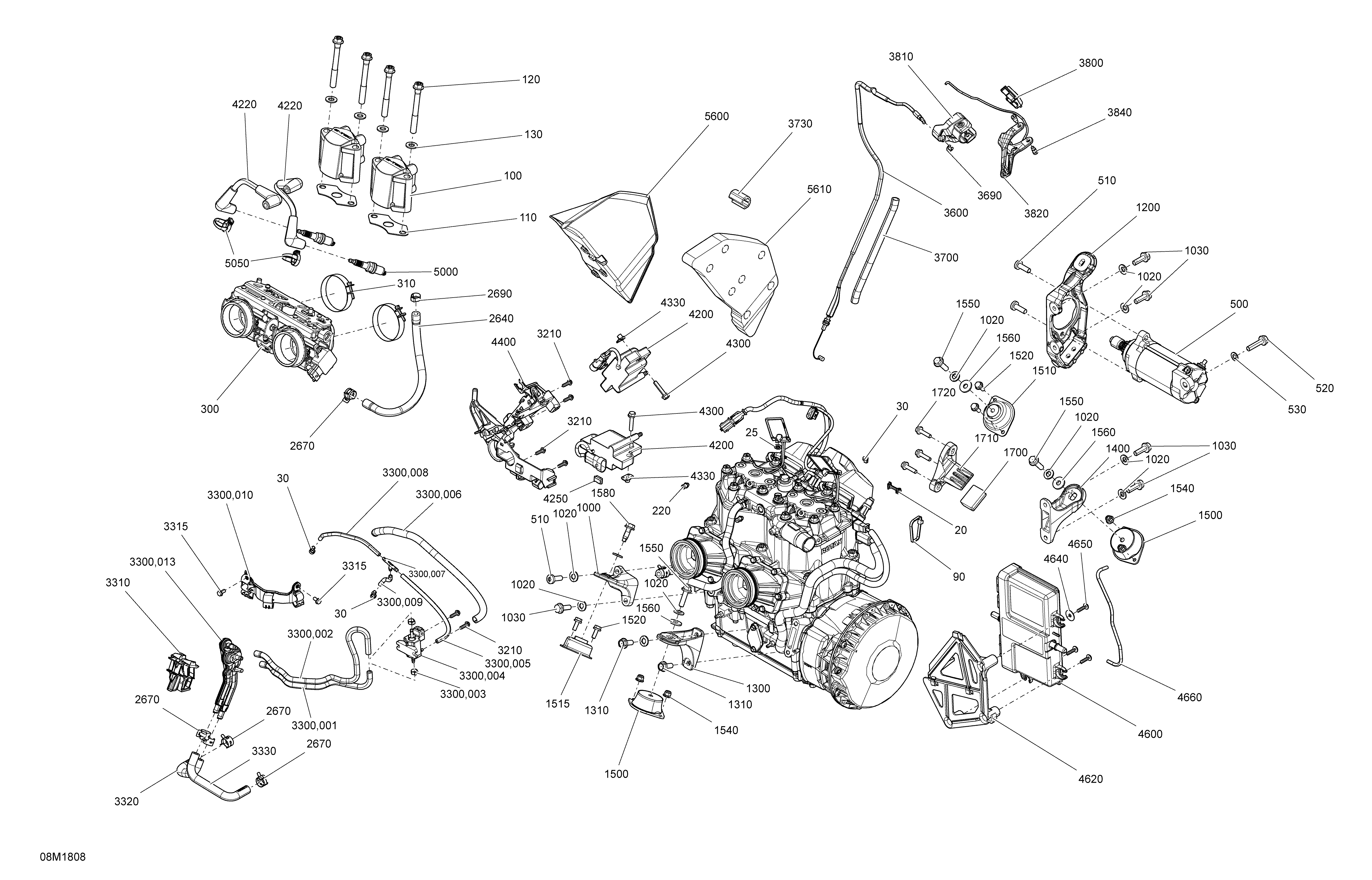

01- Engine Renegade - 600HO E-TEC - Package Enduro для BRP Ski-Doo 4- RENEGADE 800R E-TEC - 2018
-
№АртикулНазвание
-
20515177770 LockerLocker
-
25732610072 Push NutPush Nut
-
30293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
90293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
100512061054 Fuel InjectorFuel Injector
-
110420430930 GasketGasket
-
120420441187 Flanged Torx Screw M10 X 90Flanged Torx Screw M10 X 90
-
130234001410 Flat Washer 10 mmFlat Washer 10 mm
-
220420924724 Hose NippleHose Nipple
-
300420889202 Throttle BodyThrottle Body
-
310512060943 Gemi ClampGemi Clamp
-
500515178187 Electric Starter. Includes 500 to 500,001Electric Starter. Includes 500 to 500,001
-
510250000752 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
520207583544 Hex Flanged Screw M8 X 35, Scotch GripHex Flanged Screw M8 X 35, Scotch Grip
-
530250200008 Flat Washer With Teflon 8 mmFlat Washer With Teflon 8 mm
-
1000512060478 Rear Support, PTORear Support, PTO
-
1020250200146 Conical Spring Washer M8Conical Spring Washer M8
-
1030207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
1200512060714 Front Support, PTOFront Support, PTO
-
1300512060559 Rear Support, MAGRear Support, MAG
-
1310207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
1400512060469 Front Support, MAGFront Support, MAG
-
1500512060729 Rubber MountRubber Mount
-
1510512060387 Rubber MountRubber Mount
-
1515512060448 Rubber MountRubber Mount
-
1520207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
1540233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1550207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
1560503183200 Washer, YellowWasher, Yellow
-
1580250000796 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
1700512060627 StopperStopper
-
1710512060576 Stopper SupportStopper Support
-
1720207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
2640512060944 Bleeder's Collector Outlet HoseBleeder's Collector Outlet Hose
-
2670293650214 Norma Spring ClampNorma Spring Clamp
-
2690293650046 Oetiker ClampOetiker Clamp
-
3210241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
3300.001512060692 ManifoldManifold
-
3300.002415080200 Hose, PolyurethaneHose, Polyurethane
-
3300.003415080200 Hose, PolyurethaneHose, Polyurethane
-
3300.004293650234 Crimp ClampCrimp Clamp
-
3300.005512061078 Solenoid ValveSolenoid Valve
-
3300.006270000374 Hose 4.3 mmHose 4.3 mm
-
3300.007409901700 Tubing 9 mmTubing 9 mm
-
3300.008293710068 T-FittingT-Fitting
-
3300.009270000374 Hose 4.3 mmHose 4.3 mm
-
3300.01270000374 Hose 4.3 mmHose 4.3 mm
-
3300.011512060827 Hose SupportHose Support
-
3300.012512060930 SpringSpring
-
3310512060822 Manifold SupportManifold Support
-
3315250000937 Screw-forming Hex.hd.fl.bznScrew-forming Hex.hd.fl.bzn
-
3320512060695 LH Formed HoseLH Formed Hose
-
3330512060694 RH Formed HoseRH Formed Hose
-
3600512060624 Throttle CableThrottle Cable
-
3690414274500 CirclipCirclip
-
3700409901700 Tubing 9 mmTubing 9 mm
-
3730512060313 ProtectorProtector
-
3800512060859 Upper HousingUpper Housing
-
3810512060860 Lower HousingLower Housing
-
3820512061250 Handle-assyHandle-assy
-
3840732601143 Flanged ScrewFlanged Screw
-
4200512060953 Ignition CoilIgnition Coil
-
4220512061126 Ignition CableIgnition Cable
-
4250710000992 ClipClip
-
4300250000253 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
4330293100003 Nut M6Nut M6
-
4400512060888 SupportSupport
-
4600512060756 Calibrated ModuleCalibrated Module
-
4620512060858 Calibrated Module SupportCalibrated Module Support
-
4640250200040 Flat WasherFlat Washer
-
4650250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
4660415080100 LineLine
-
5000415129484 Spark Plug, NGK PFR7ABSpark Plug, NGK PFR7AB
-
5050512060993 ClampClamp
-
5600512060847 Noise ShieldNoise Shield
-
5610512060958 Inner Acoustic FoamInner Acoustic Foam
