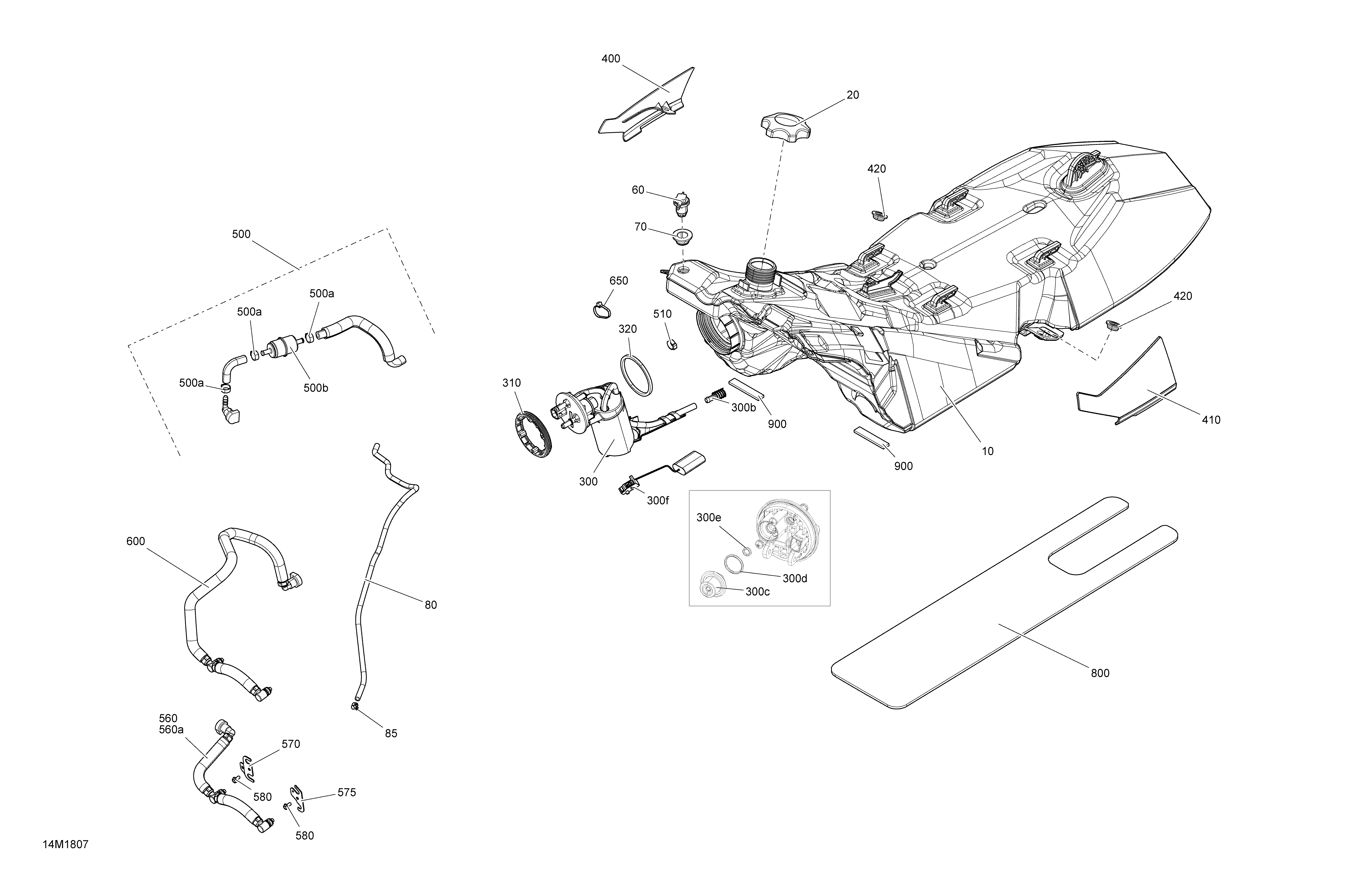

02- Fuel для BRP Ski-Doo 4- RENEGADE 800R E-TEC - 2018
-
№АртикулНазвание
-
10513033667 Fuel TankFuel Tank
-
20513033722 Fuel Tank Cap. North America ModelsFuel Tank Cap. North America Models
-
20513033723 Fuel Tank Cap. Europe ModelsFuel Tank Cap. Europe Models
-
60513033842 Check ValveCheck Valve
-
70513033596 GrommetGrommet
-
80415080200 Hose, PolyurethaneHose, Polyurethane
-
85414554800 Spring ClampSpring Clamp
-
300>300f513033837 Fuel Pump. Includes 300 to 300fFuel Pump. Includes 300 to 300f
-
300a415129451 Fuel FilterFuel Filter
-
300b414872100 Fuel FilterFuel Filter
-
300c415129821 RegulatorRegulator
-
300d415129822 O-RingO-Ring
-
300e415129823 O-RingO-Ring
-
300f415130108 Fuel Level SensorFuel Level Sensor
-
310513033180 RingRing
-
320513033334 GasketGasket
-
400513033418 RH CapRH Cap
-
410513033419 LH CapLH Cap
-
420513033326 Shoulder BushingShoulder Bushing
-
500>500b513033846 Hose Ass'y. Includes 500 to 500bHose Ass'y. Includes 500 to 500b
-
500a293650125 Oetiker ClampOetiker Clamp
-
500b513033719 FilterFilter
-
510293650053 Crimp ClampCrimp Clamp
-
560>560a513033594 Hose Ass'y. Includes 560 to 560aHose Ass'y. Includes 560 to 560a
-
560a513033135 Locking ClipLocking Clip
-
570513033542 BracketBracket
-
575513033593 BracketBracket
-
580207551044 Flanged Hex. Screw M5 X 10Flanged Hex. Screw M5 X 10
-
600513033648 Fuel Hose Ass'yFuel Hose Ass'y
-
650414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
800513033588 Insulating FoamInsulating Foam
-
900513033813 GasketGasket
