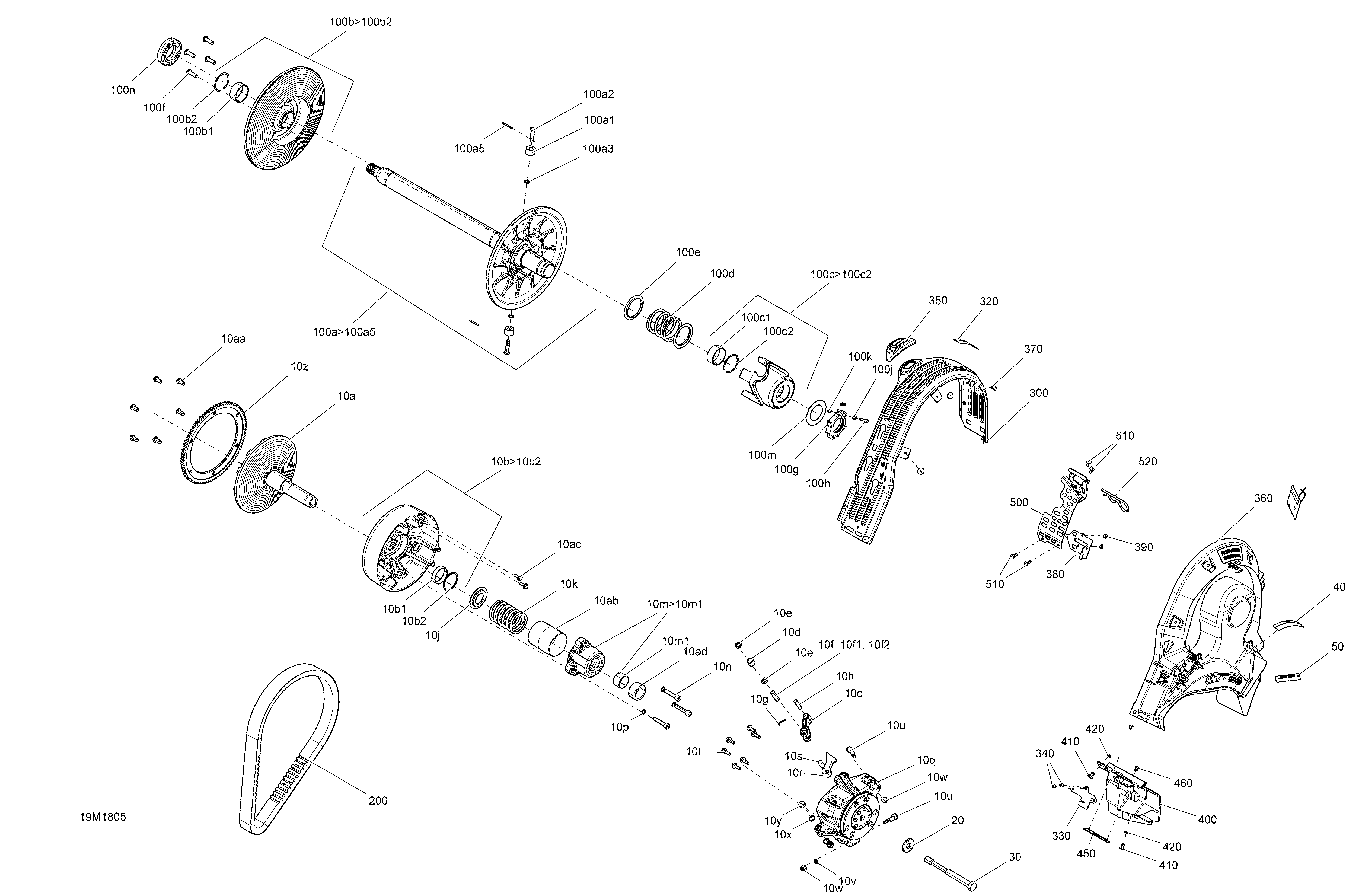

05- Pulley Renegade - 800R ETEC для BRP Ski-Doo 4- RENEGADE 800R E-TEC - 2018
-
№АртикулНазвание
-
10a417223232 Fixed Flange Ass'yFixed Flange Ass'y
-
10b417223444 Sliding Flange Ass'y. Includes 10b to 10b2Sliding Flange Ass'y. Includes 10b to 10b2
-
10b2417223086 BushingBushing
-
10b2293370071 CirclipCirclip
-
10c417222671 LeverLever
-
10d417222947 RollerRoller
-
10e417004302 Stopper WasherStopper Washer
-
10f417222594 PinPin
-
10g250400060 Cotter PinCotter Pin
-
10h417223164 Lever AxleLever Axle
-
10j417222312 Spring SeatSpring Seat
-
10k414817700 Spring, Blue/greenSpring, Blue/green
-
10m417222759 Spring Cover Ass'y. Includes 10m to 10m1Spring Cover Ass'y. Includes 10m to 10m1
-
10m1417009204 BushingBushing
-
10n205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
10p250200009 Lock Washer 8 mmLock Washer 8 mm
-
10q417223666 Governor Cup Ass'yGovernor Cup Ass'y
-
10r417222546 Ramp 414Ramp 414
-
10s250400050 Spring Pin M10 X 22Spring Pin M10 X 22
-
10t250000418 Flanged Hex. Screw M6 X 18, Scotch GripFlanged Hex. Screw M6 X 18, Scotch Grip
-
10u417223501 Calibration ScrewCalibration Screw
-
10v417005600 WasherWasher
-
10w233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
10x732401030 O-RingO-Ring
-
10y417223271 Slider ShoeSlider Shoe
-
10z417223739 Ring GearRing Gear
-
10aa250000533 Hex. Flange Screw M8 X 16Hex. Flange Screw M8 X 16
-
10ab417009205 GuardGuard
-
10ac250000416 Serrated Hex. Flange Bolt M6Serrated Hex. Flange Bolt M6
-
10ad417223471 BushingBushing
-
20250200144 Conical Spring Washer M14Conical Spring Washer M14
-
30417300409 TRA 7 Bolt (M14 X 153.5 mm)TRA 7 Bolt (M14 X 153.5 mm)
-
40516005503 Decal, EnglishDecal, English
-
50516005507 RPM Sticker, EnglishRPM Sticker, English
-
100a417127387 Fix Flange Ass'y. Includes 100a to 100a4Fix Flange Ass'y. Includes 100a to 100a4
-
100a1417127016 RollerRoller
-
100a2417127294 Pivot StudPivot Stud
-
100a3250200009 Lock Washer 8 mmLock Washer 8 mm
-
100a4250400063 Spring Pin M3 X 30Spring Pin M3 X 30
-
100b417127317 Sliding Flange Ass'y. Includes 100b to 100b2Sliding Flange Ass'y. Includes 100b to 100b2
-
100b1417127318 BushingBushing
-
100b2293370049 CirclipCirclip
-
100c417127325 Cam Ass'y. Includes 100c to 100c2Cam Ass'y. Includes 100c to 100c2
-
100c1417127318 BushingBushing
-
100c2293370049 CirclipCirclip
-
100d417127137 Green SpringGreen Spring
-
100e417127116 Swivel AbutmentSwivel Abutment
-
100f250000707 Hex. Button Head Screw M8 X 25Hex. Button Head Screw M8 X 25
-
100g415129604 Calibration Ass'yCalibration Ass'y
-
100h205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
100j234051410 Flat Washer M5Flat Washer M5
-
100k232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
100m417127155 WasherWasher
-
100n504152574 Ball BearingBall Bearing
-
200417300391 BeltBelt
-
300417300357 Belt GuardBelt Guard
-
320516005509 Safety Belt Guard DecalSafety Belt Guard Decal
-
330417300423 Front BracketFront Bracket
-
340390909200 Avex RivetAvex Rivet
-
350417300381 GuideGuide
-
360417300440 CVT Air Duct PulleyCVT Air Duct Pulley
-
360417300466 CVT Air DuctCVT Air Duct
-
370293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
380417300476 StopperStopper
-
390293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
395517225900 Flat WasherFlat Washer
-
400417300430 Front SupportFront Support
-
410293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
420517225900 Flat WasherFlat Washer
-
450417300421 Reinforcement PlateReinforcement Plate
-
460390909100 Avex RivetAvex Rivet
-
500417300448 Belt Guard BracketBelt Guard Bracket
-
510250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
520114045200 Hair PinHair Pin
