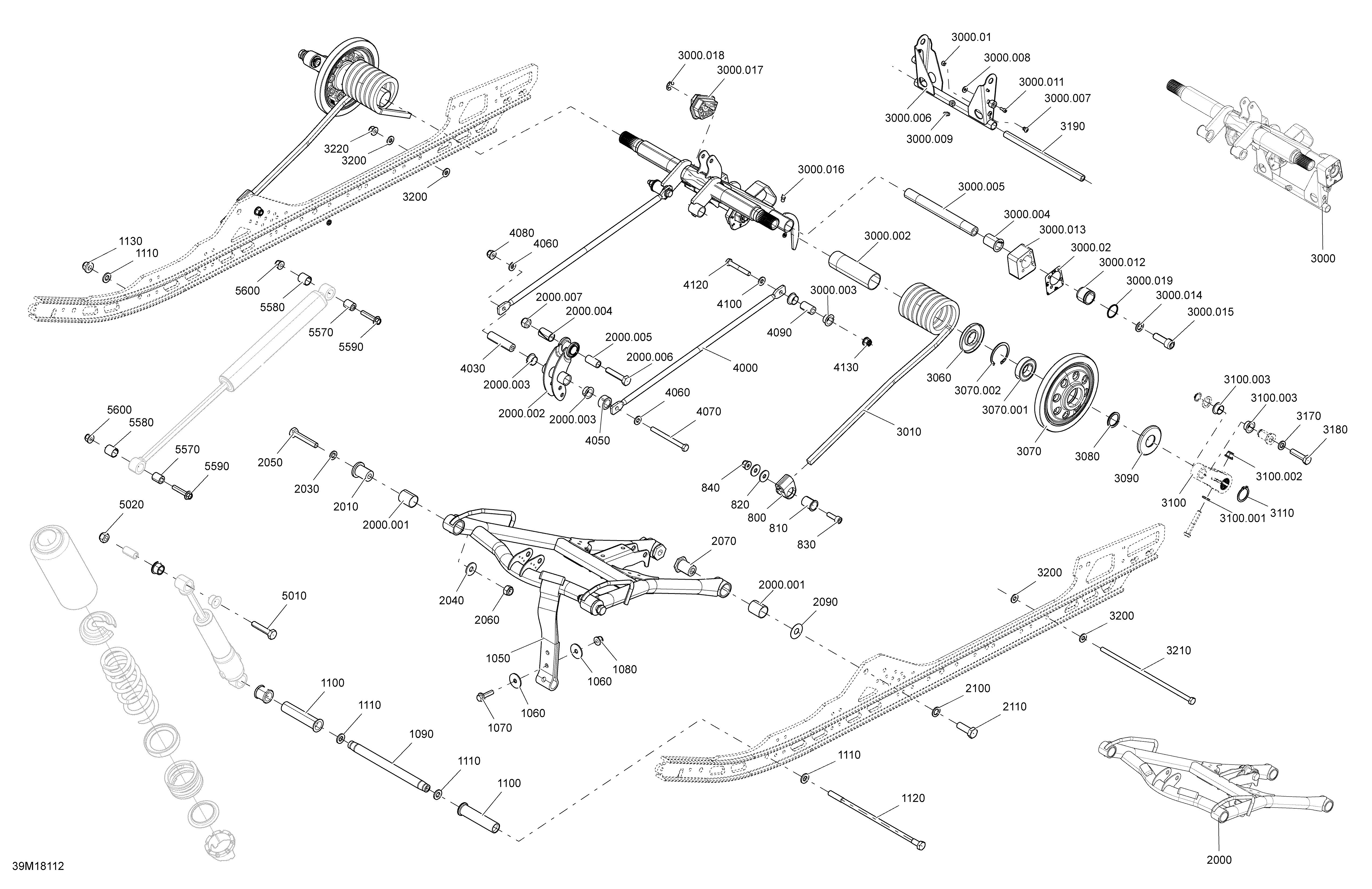

08- Rear Suspension Renegade - Package Enduro - Superior для BRP Ski-Doo 4- RENEGADE 800R E-TEC - 2018
-
№АртикулНазвание
-
800503191183 Spring SupportSpring Support
-
810503190754 Retainer CushionRetainer Cushion
-
820234082410 Flat Washer 8 mmFlat Washer 8 mm
-
830205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
840233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
1050503192759 Stopper StrapStopper Strap
-
1060250200128 Flat Washer 8 mmFlat Washer 8 mm
-
1070207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
1080233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
1090503193435 Pivot AxlePivot Axle
-
1100503191259 Center BushingCenter Bushing
-
1110250200143 Flat WasherFlat Washer
-
1120503193227 Bolt M10 X 251MMBolt M10 X 251MM
-
1130233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
2000503194529 Front Arm Ass'y. Includes 2000 to 2000,007Front Arm Ass'y. Includes 2000 to 2000,007
-
2000.001503191554 BushingBushing
-
2000.002503192531 RockerRocker
-
2000.003503191555 Swivel BushingSwivel Bushing
-
2000.004503193037 BushingBushing
-
2000.005503189282 BushingBushing
-
2000.006207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
2000.007233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
2010503190698 AxleAxle
-
2030503192496 WasherWasher
-
2040503191926 WasherWasher
-
2050207006056 Hex. Cap Screw M10 X 60Hex. Cap Screw M10 X 60
-
2060233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
2070503191966 Lower AxleLower Axle
-
2090503190656 WasherWasher
-
2100503192491 WasherWasher
-
2110250000537 Hex. Cap Screw M12 X 35Hex. Cap Screw M12 X 35
-
3000503193617 Rear Arm Ass'y. Includes 3000 to 3000,023Rear Arm Ass'y. Includes 3000 to 3000,023
-
3000.002503192767 BushingBushing
-
3000.003503191555 Swivel BushingSwivel Bushing
-
3000.004503191640 CushionCushion
-
3000.005503192981 Lower ShaftLower Shaft
-
3000.006503192823 Pivot Arm Ass'y. Includes 3000,006 to 3000,011Pivot Arm Ass'y. Includes 3000,006 to 3000,011
-
3000.007390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
3000.008517225900 Flat WasherFlat Washer
-
3000.009408200700 Grease FittingGrease Fitting
-
3000.01232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
3000.011205041060 Socket Head Screw M4X 10Socket Head Screw M4X 10
-
3000.012503192749 Guide BlockGuide Block
-
3000.013503192918 LH Cam BlockLH Cam Block
-
3000.013503192919 RH Cam BlockRH Cam Block
-
3000.014503192491 WasherWasher
-
3000.015205523554 Socket Head Screw M12 X 35Socket Head Screw M12 X 35
-
3000.016408200700 Grease FittingGrease Fitting
-
3000.017503191565 LH Cam AdjusterLH Cam Adjuster
-
3000.017503191566 RH Cam AdjusterRH Cam Adjuster
-
3000.018293370013 E-CirclipE-Circlip
-
3000.019503192921 O-RingO-Ring
-
3000.02516004900 LH Block Sticker DecalLH Block Sticker Decal
-
3000.02516004901 RH Block Sticker DecalRH Block Sticker Decal
-
3010503192081 LH SpringLH Spring
-
3010503192080 RH SpringRH Spring
-
3060503190434 Labyrinth SealLabyrinth Seal
-
3070503192808 Black Wheel Ass'y 155 mm. Includes 3070 to 3070,002Black Wheel Ass'y 155 mm. Includes 3070 to 3070,002
-
3070.001503193548 Ball BearingBall Bearing
-
3070.002415129780 Retaining RingRetaining Ring
-
3080503189146 Axle SpringAxle Spring
-
3090503192592 Labyrinth RingLabyrinth Ring
-
3100503193069 Link Ass'y. Includes 3100 to 3100,003Link Ass'y. Includes 3100 to 3100,003
-
3100.001503192494 WasherWasher
-
3100.002233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
3100.003503191555 Swivel BushingSwivel Bushing
-
3110293370080 Retaining RingRetaining Ring
-
3170503192496 WasherWasher
-
3180207204056 Cap Screw Hex. M10 X 40Cap Screw Hex. M10 X 40
-
3190503189156 Pivot Arm AxlePivot Arm Axle
-
3200503192494 WasherWasher
-
3210503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
3220233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
4000503193058 Link RodLink Rod
-
4030503193063 Axle BarAxle Bar
-
4050503193064 SpacerSpacer
-
4060503192494 WasherWasher
-
4070503193499 Screw M8 X 120, 10.9Screw M8 X 120, 10.9
-
4080233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
4090503192555 Axle BarAxle Bar
-
4100503192494 WasherWasher
-
4120207085586 Hex. Screw M8 X 55Hex. Screw M8 X 55
-
4130233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
5010207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
5020233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
5570503192606 Rear Shock AxleRear Shock Axle
-
5580505072663 Leg CushionLeg Cushion
-
5590207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
5600233281466 Elastic Flang Nut M8Elastic Flang Nut M8
