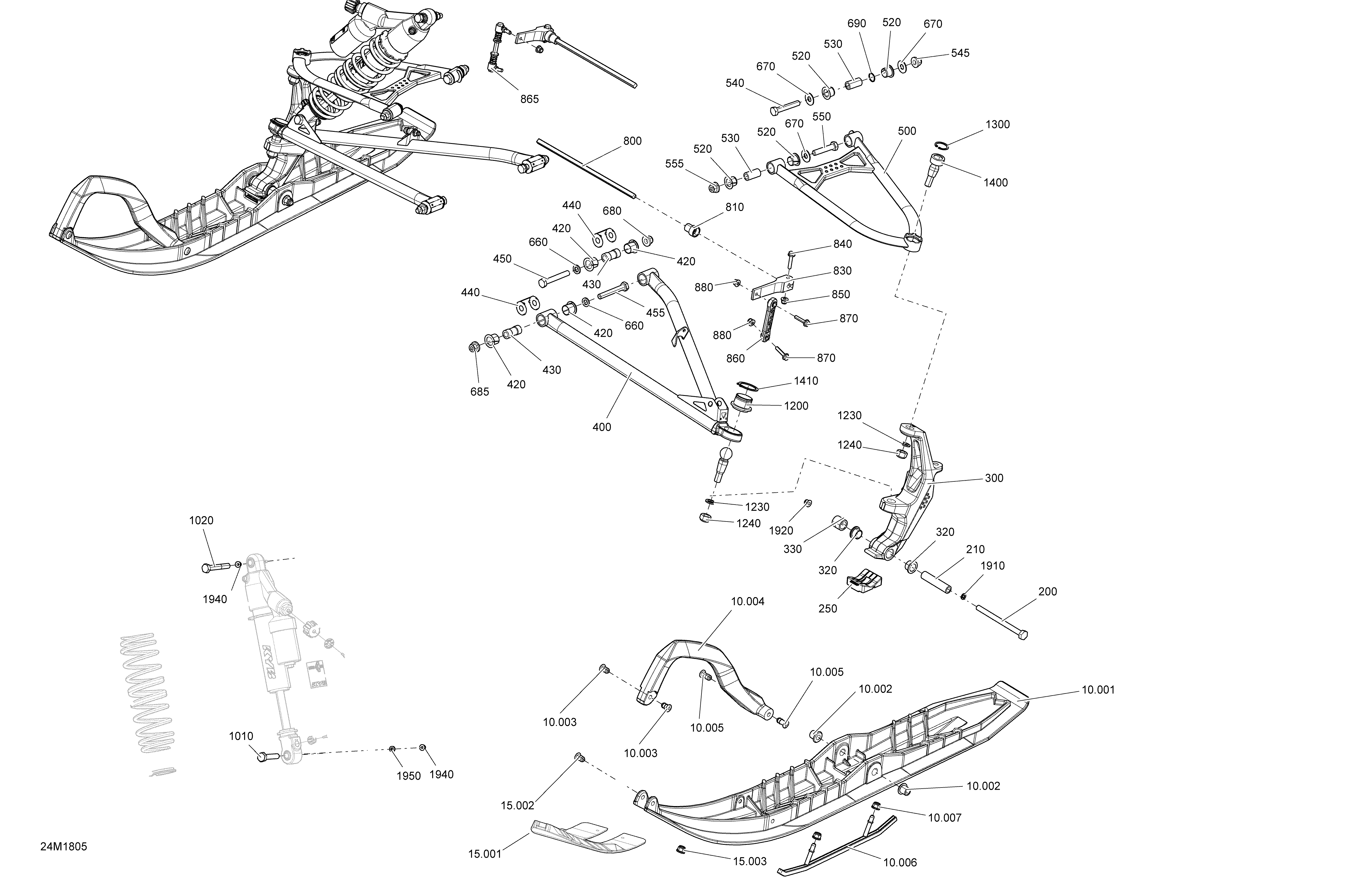

07- Front Suspension And Ski Summit - 850 E-TEC - Package SP, X для BRP Ski-Doo 3- SUMMIT 850 E-TEC - 2018
-
№АртикулНазвание
-
10.001505074135 Black, DS3 Ski. Includes 10,001 to 10,002Black, DS3 Ski. Includes 10,001 to 10,002
-
10.001505074244 DS Ski. Manta Green Models. Includes 10,001 to 10,002DS Ski. Manta Green Models. Includes 10,001 to 10,002
-
10.002505071781 Ski BushingSki Bushing
-
10.003505071812 Retainer 17mm longRetainer 17mm long
-
10.004505072976 Black, HandleBlack, Handle
-
10.004505072976 Black, HandleBlack, Handle
-
10.004505073665 Yellow Handle. Sunburst Yellow ModelsYellow Handle. Sunburst Yellow Models
-
10.005505072133 Retainer 23mm LongRetainer 23mm Long
-
10.006860201044 Carbide Runner Kit (Square Runner)Carbide Runner Kit (Square Runner)
-
10.007233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
15.001505073784 Ski TipSki Tip
-
15.002250000770 Hex. Socket Screw M6 X 20Hex. Socket Screw M6 X 20
-
15.003233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
200250000703 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
210505073691 Ski AxleSki Axle
-
250505074138 Ski StopperSki Stopper
-
300505074368 Ski-Leg Machined. Sunburst Yellow ModelsSki-Leg Machined. Sunburst Yellow Models
-
300505074372 Ski-Leg MachinedSki-Leg Machined
-
310505074369 Skileg Machined. Sunburst Yellow ModelsSkileg Machined. Sunburst Yellow Models
-
310505074373 RH Ski LegRH Ski Leg
-
320505072690 Leg BushingLeg Bushing
-
330503193651 SpacerSpacer
-
400505073743 RH Lower Arm 36''RH Lower Arm 36''
-
410505073739 LH Lower Arm 36''LH Lower Arm 36''
-
420505072208 BushingBushing
-
430505072214 BushingBushing
-
440505072634 Wear PlateWear Plate
-
445505072448 O-RingO-Ring
-
450250000291 Screw Hex. M10 X 1.25 X 70Screw Hex. M10 X 1.25 X 70
-
455250000291 Screw Hex. M10 X 1.25 X 70Screw Hex. M10 X 1.25 X 70
-
470505073723 Wear PlateWear Plate
-
480505073844 PlatePlate
-
500505074217 LH.ArmLH.Arm
-
510505074218 Arm-UpperArm-Upper
-
520505072250 BushingBushing
-
530505072143 SleeveSleeve
-
540250000290 Screw Hex. M10 X 1.25 X 60Screw Hex. M10 X 1.25 X 60
-
545250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
550250000290 Screw Hex. M10 X 1.25 X 60Screw Hex. M10 X 1.25 X 60
-
555250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
660503189564 WasherWasher
-
670505072392 WasherWasher
-
680250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
685250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
690505072448 O-RingO-Ring
-
800505073847 StabilisatorStabilisator
-
810505072786 BushingBushing
-
830505073752 Stabilisator LeverStabilisator Lever
-
840207663056 Hex Flanged Screw M6 X 1.0 X 30Hex Flanged Screw M6 X 1.0 X 30
-
850233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
860505073172 Double Ball Joint LinkDouble Ball Joint Link
-
870207663056 Hex Flanged Screw M6 X 1.0 X 30Hex Flanged Screw M6 X 1.0 X 30
-
880233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1010250000824 Hexagonal Flange Screw M8 X 58Hexagonal Flange Screw M8 X 58
-
1020250000824 Hexagonal Flange Screw M8 X 58Hexagonal Flange Screw M8 X 58
-
1200505074133 Ball JointBall Joint
-
1230503192491 WasherWasher
-
1240232521464 Hex Elastic Nut M12 X 1.25Hex Elastic Nut M12 X 1.25
-
1300293370070 CirclipCirclip
-
1400505072913 Upper Ball JointUpper Ball Joint
-
1410293370098 Snap RingSnap Ring
-
1910503192496 WasherWasher
-
1920233201464 Hex. Elast. Flanged Nut M10 x 1.5Hex. Elast. Flanged Nut M10 x 1.5
-
1940233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
1950505073892 SpacerSpacer
