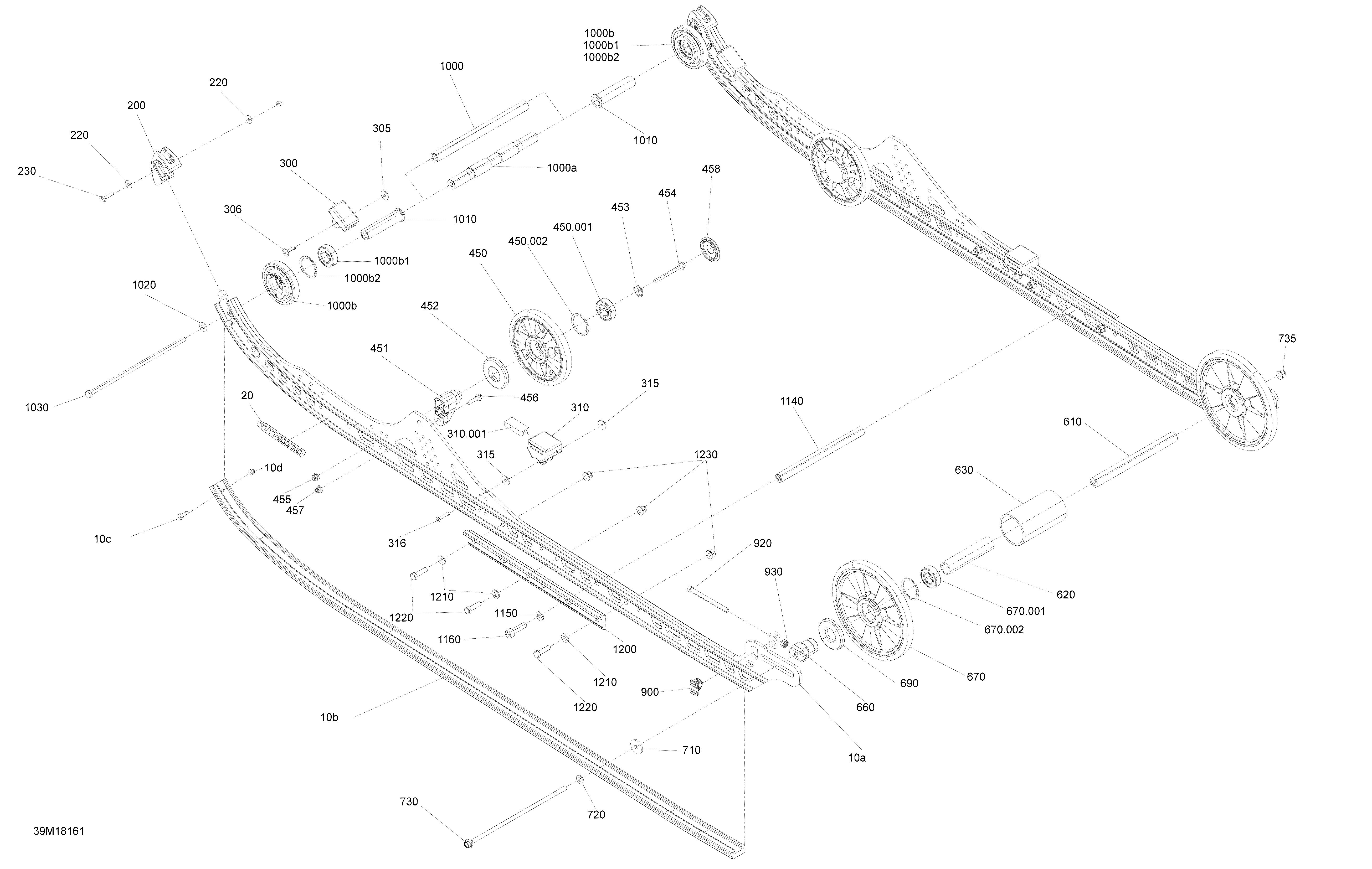

08- Rear Suspension Summit - 850 E-TEC 154, 165, 175 - Inferior для BRP Ski-Doo 3- SUMMIT 850 E-TEC - 2018
-
№АртикулНазвание
-
10a503194392 Runner 175 Black. Lenght 175''Runner 175 Black. Lenght 175''
-
10a503195066 Runner 154. Lenght 154'' - AluminiumRunner 154. Lenght 154'' - Aluminium
-
10a503195068 Black Runner 154''. Lenght 154'' - BlackBlack Runner 154''. Lenght 154'' - Black
-
10a503195070 White Runner 154''. Lenght 154'' - WhiteWhite Runner 154''. Lenght 154'' - White
-
10a503195072 Yellow Runner 154''. Lenght 154'' -YellowYellow Runner 154''. Lenght 154'' -Yellow
-
10a503195074 Runner 165. Lenght 165'' - AluminiumRunner 165. Lenght 165'' - Aluminium
-
10a503195076 Runner 165. Lenght 165'' - BlackRunner 165. Lenght 165'' - Black
-
10a503195078 White Runner 165''. Lenght 165'' - WhiteWhite Runner 165''. Lenght 165'' - White
-
10a503195080 Yellow Runner 165''. Lenght 165'' - YellowYellow Runner 165''. Lenght 165'' - Yellow
-
10b503194413 Slider 175. Lenght 175''Slider 175. Lenght 175''
-
10b503194251 Slider 154. Lenght 154''Slider 154. Lenght 154''
-
10b503194254 Slider 165. Lenght 165''Slider 165. Lenght 165''
-
10c208562531 Phillips Screw M6 X 1.0 X 25Phillips Screw M6 X 1.0 X 25
-
10d232561414 Elastic Stop Nut M6 x 1.0Elastic Stop Nut M6 x 1.0
-
20516006381 Runner DecalRunner Decal
-
200503194249 ProtectorProtector
-
220250200140 WasherWasher
-
230207652544 Hex. Flanged Screw M5 X 0.8 X 25Hex. Flanged Screw M5 X 0.8 X 25
-
300503190576 Rubber StopperRubber Stopper
-
305503191273 WasherWasher
-
306293150224 Rivet Pop 3/16Rivet Pop 3/16
-
310.001503193101 Rubber StopperRubber Stopper
-
310.002572084800 Reinforcement StopperReinforcement Stopper
-
315503191273 WasherWasher
-
316293150224 Rivet Pop 3/16Rivet Pop 3/16
-
450503191755 Black Wheel Ass'y, 152 mm. Includes 450 to 450,002Black Wheel Ass'y, 152 mm. Includes 450 to 450,002
-
450.001503190396 Ball BearingBall Bearing
-
450.002415129371 Retaining RingRetaining Ring
-
451503193894 Casted SupportCasted Support
-
452503190434 Labyrinth SealLabyrinth Seal
-
453503191820 Wheel Cup M6Wheel Cup M6
-
454250000944 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
455233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
456250000945 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
457233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
458503192771 Black, Wheel CapBlack, Wheel Cap
-
610503194261 Rear AxleRear Axle
-
620503194280 SpacerSpacer
-
630503194286 BushingBushing
-
660503194747 TipTip
-
670503193098 Black, Wheel Ass'y 200 mm. Includes 670 to 670,002Black, Wheel Ass'y 200 mm. Includes 670 to 670,002
-
670.001503190396 Ball BearingBall Bearing
-
670.002415129371 Retaining RingRetaining Ring
-
690503190434 Labyrinth SealLabyrinth Seal
-
710503194264 WasherWasher
-
720503192494 WasherWasher
-
730503194265 BoltBolt
-
735233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
900503194266 TensionnerTensionner
-
920503194267 Hex. Cap Screw M8 X 95Hex. Cap Screw M8 X 95
-
930232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
1000a503194723 Front Wheell Axle. 3.0 Pro-Light WIIIFront Wheell Axle. 3.0 Pro-Light WIII
-
1000a503194723 Front Wheell Axle. Lenght 175''Front Wheell Axle. Lenght 175''
-
1000b503194724 Wheel 86. 3.0 Pro-Light WIII. Includes 1000b to 1000b2Wheel 86. 3.0 Pro-Light WIII. Includes 1000b to 1000b2
-
1000b503194724 Wheel 86. Lenght 175''. Includes 1000b to 1000b2Wheel 86. Lenght 175''. Includes 1000b to 1000b2
-
1000b1503190396 Ball Bearing. 3.0 Pro-Light WIIIBall Bearing. 3.0 Pro-Light WIII
-
1000b1503190396 Ball Bearing. Lenght 175''Ball Bearing. Lenght 175''
-
1000b2415129371 Retaining Ring. 3.0 Pro-Light WIIIRetaining Ring. 3.0 Pro-Light WIII
-
1000b2415129371 Retaining Ring. Lenght 175''Retaining Ring. Lenght 175''
-
1000503194845 Axle. 3.0 Pro-Light WIIIAxle. 3.0 Pro-Light WIII
-
1000503194845 Axle. 2.5 Pro-Light WIIAxle. 2.5 Pro-Light WII
-
1000503194845 Axle. 2.5 Pro-Light WIIIAxle. 2.5 Pro-Light WIII
-
1010503191259 Center Bushing. Lenght 154'' 2.5 Pro-Light WIICenter Bushing. Lenght 154'' 2.5 Pro-Light WII
-
1010503191259 Center Bushing. Lenght 165'' 2.5 Pro-Light WIICenter Bushing. Lenght 165'' 2.5 Pro-Light WII
-
1010503191259 Center Bushing. Lenght 165'' 2.5 Pro-Light WIIICenter Bushing. Lenght 165'' 2.5 Pro-Light WIII
-
1020503192494 WasherWasher
-
1030503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
1140503191260 Axle StrapAxle Strap
-
1150503192496 WasherWasher
-
1160205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
